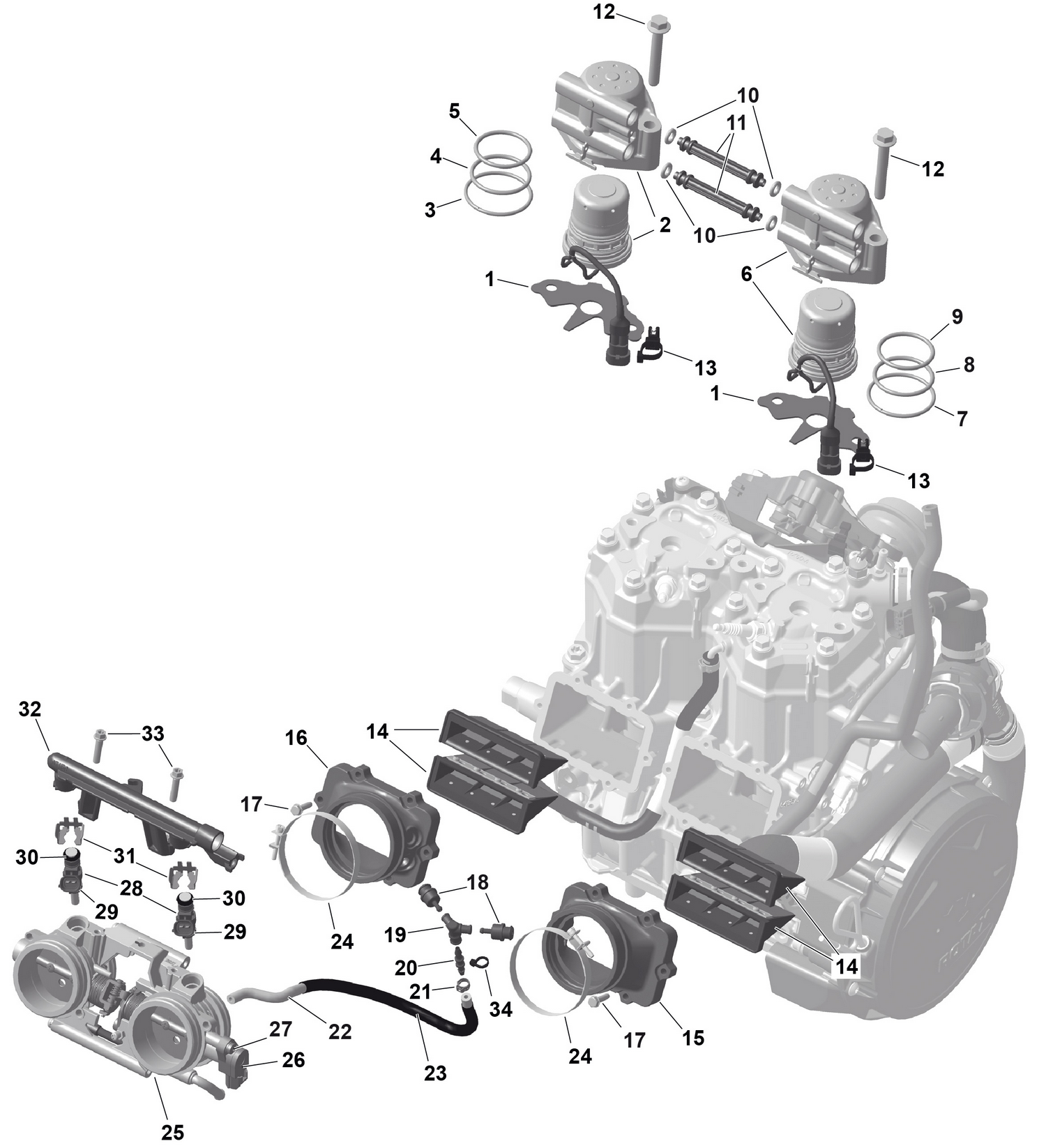

01- ROTAX - Electronic Fuel Injection
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420874876 | Fuel Injector PTO |
| 3 | 415129497 | Crush Ring |
| 4 | 415129498 | O-Ring |
| 5 | 415129499 | O-Ring |
| 7 | 415129497 | Crush Ring |
| 8 | 415129498 | O-Ring |
| 9 | 415129499 | O-Ring |
| 11 | 420874190 | Tube |
| 12 | 420840097 | Hex Screw M9 X 60 |
| 13 | 420951652 | Tie Rap 200 X 4.6 |
| 14 | 420924797 | Reed Valve Ass'y |
| 15 | 420867398 | Intake Socket Mag |
| 16 | 420867397 | Intake Socket Pto |
| 17 | 420841556 | Tapping Screw M5 X 20 |
| 18 | 420262062 | Fog Nozzle Ass'y |
| 19 | 420262080 | Y-Connecting Part |
| 20 | 420922169 | Tube Connector 3/16 |
| 21 | 420853653 | Clamp |
| 22 | 420201585 | Water Hose 315 |
| 23 | 420860997 | Heat Protection Hose 295 +/-5 mm |
| 24 | 420251208 | Clamp |
| 27 | XXX | Not Available As Spare Parts |
| 31 | 420853031 | Clip |
| 32 | 420874158 | Fuel Rail |
| 33 | 420440234 | Torx Flange Screw M6 X 25 |
