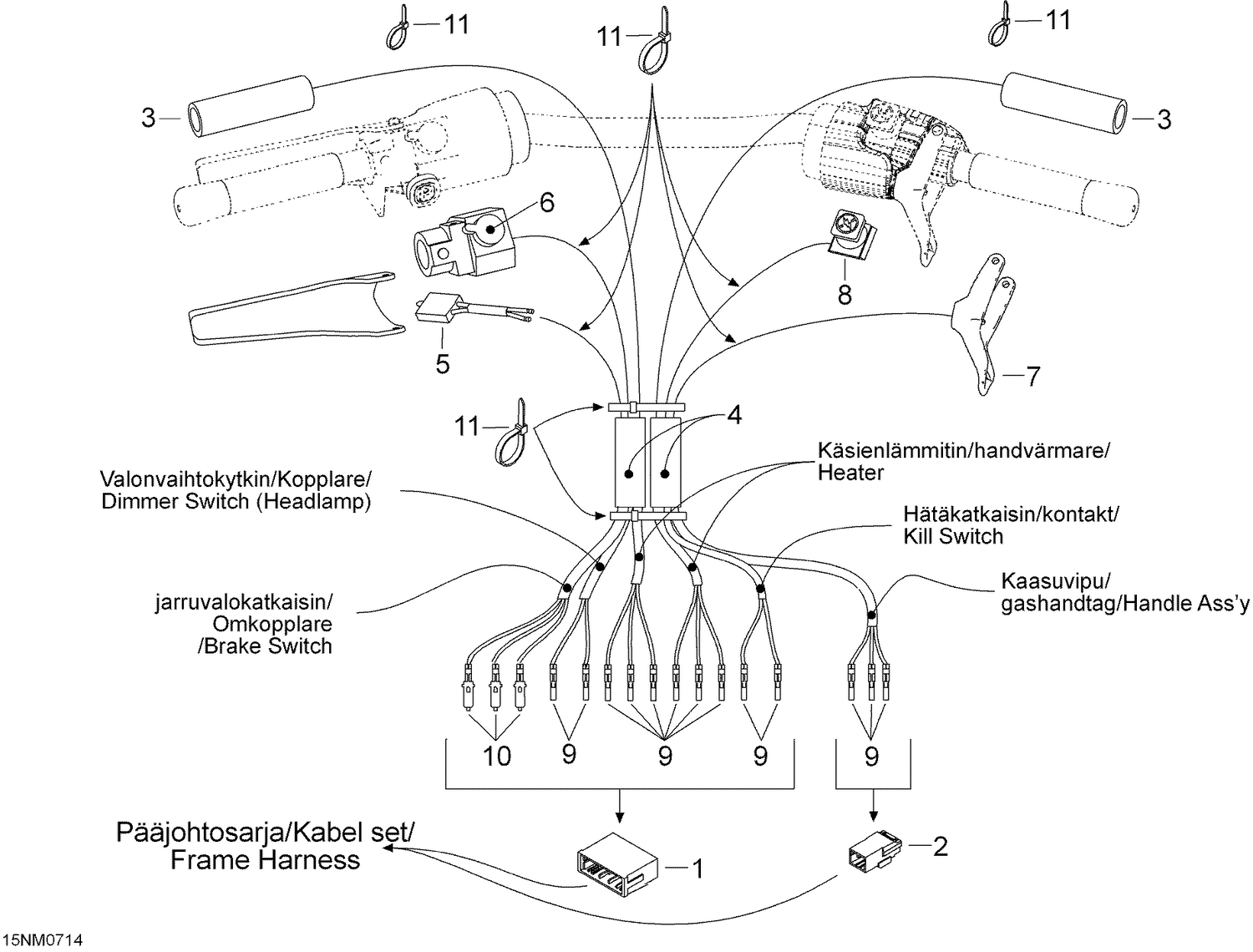

10- Steering Harness
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 42617 | Male connector housing |
| 2 | 42271 | Male connector housing |
| 3 | 515175573 | Heater element |
| 4 | 39023 | Plastic Tubing d=6, musta - Call your local BRP dealership |
| 5 | 415085700 | Switch |
| 6 | 415085800 | Dimmer switch |
| 7 | 512060214 | Handle Assy This part replaces 512059144. |
| 8 | 515175410 | Emergency switch |
| 9 | 605642628 | CONNECTOR - Call your local BRP dealership This part replaces 42603. |
| 10 | 515175273 | MALE TERMINAL - Call your local BRP dealership |
