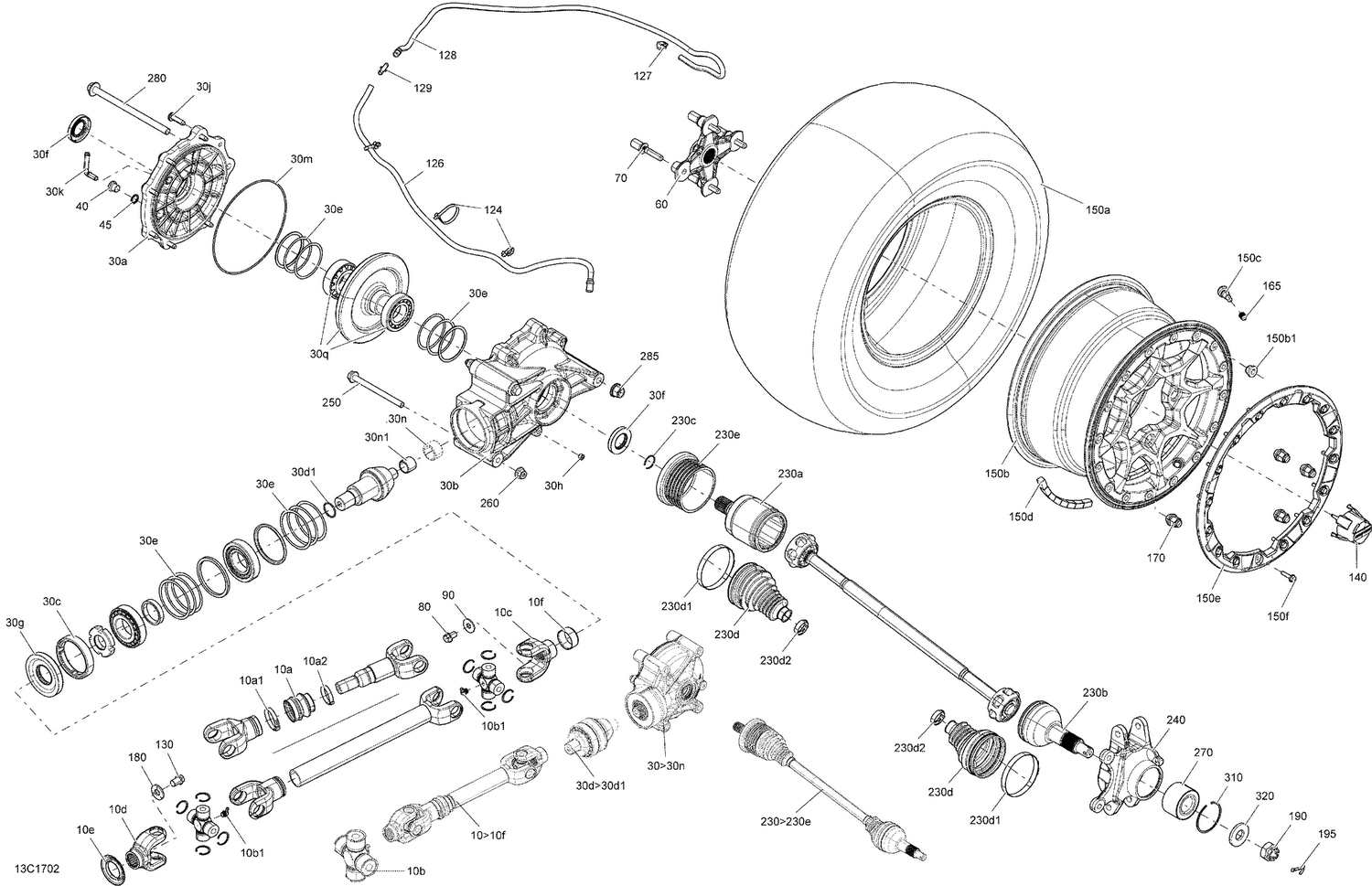

08- Drive System, Rear - All Models
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 10a1 | 293650138 | Oetiker Gear Clamp 44.0MM |
| 10a2 | 509000045 | Oetiker Gear Clamp 36.1MM |
| 10b1 | 715900295 | Grease Fitting |
| 10c | 715900271 | Joint |
| 10d | 715900436 | Joint |
| 10e | 705501123 | Protector |
| 10f | 705400036 | Wear Ring |
| 30a | 705502171 | REAR COVER - Call your local BRP dealership |
| 30b | 705502172 | PINION COVER - Call your local BRP dealership |
| 30c | 705501740 | NUT - Call your local BRP dealership |
| 30d1 | 705501554 | O-Ring |
| 30e | 703500839 | Differential Shim Kit |
| 30f | 705501556 | Oil Seal |
| 30g | 705502276 | Oil Seal |
| 30h | 705501724 | Plug Drain |
| 30j | 705502063 | Screw |
| 30k | 705501584 | Breather Tube |
| 30m | 705501749 | Oil Seal |
| 30n1 | 703500840 | Needle Bearing |
| 30q | 703500868 | Gear Kit |
| 40 | 705500504 | Fill Level Plug |
| 45 | 705500506 | Copper Washer |
| 60 | 705502223 | Wheel Hub ( 29 Splines ) |
| 70 | 250300060 | Wheel Stud |
| 80 | 250001044 | Hex. Flange Screw M10 X 16 S.GRIP This part replaces 250000615. |
| 90 | 250200014 | Flat Washer M10 |
| 124 | 414115200 | Tie-Rap 180 mm |
| 124 | 710003168 | Dart Tie Rap 200MM |
| 126 | 219704388 | Was 293830177 Hose |
| 130 | 250001039 | Hex Flange Screw M12 X 16 This part replaces 250000359. |
| 150c | 705400193 | Rim Valve With Cap |
| 165 | 293000110 | Valve Cap |
| 170 | 250100184 | Black, Wheel Nut M10 X 1.25 |
| 180 | 250200005 | Conical Spring Washer M12 |
| 190 | 250100193 | Castle Nut M20 This part replaces 250100161. |
| 195 | 250400071 | Cotter Pin |
| 230b | 715900429 | JOINT_CV EXT - Call your local BRP dealership |
| 230c | 705501781 | Circlip |
| 230d1 | 715900241 | Oetiker Clamp, 82.1 mm |
| 230d2 | 715900242 | Oetiker Clamp, 27.3 mm |
| 240 | 705501730 | LH Rear Knuckle |
| 240 | 705501731 | RH Rear Knuckle |
| 250 | 230602546 | Hex. Flange Screw M10 X 125 |
| 260 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 270 | 293350150 | Ball Bearing This part replaces 293350118. |
| 280 | 230629087 | HEX. FLANGED SCREW M12 X 190 - Call your local BRP dealership |
| 285 | 233221416 | Elastic Flange Nut M12 |
| 310 | 293370019 | Circlip |
