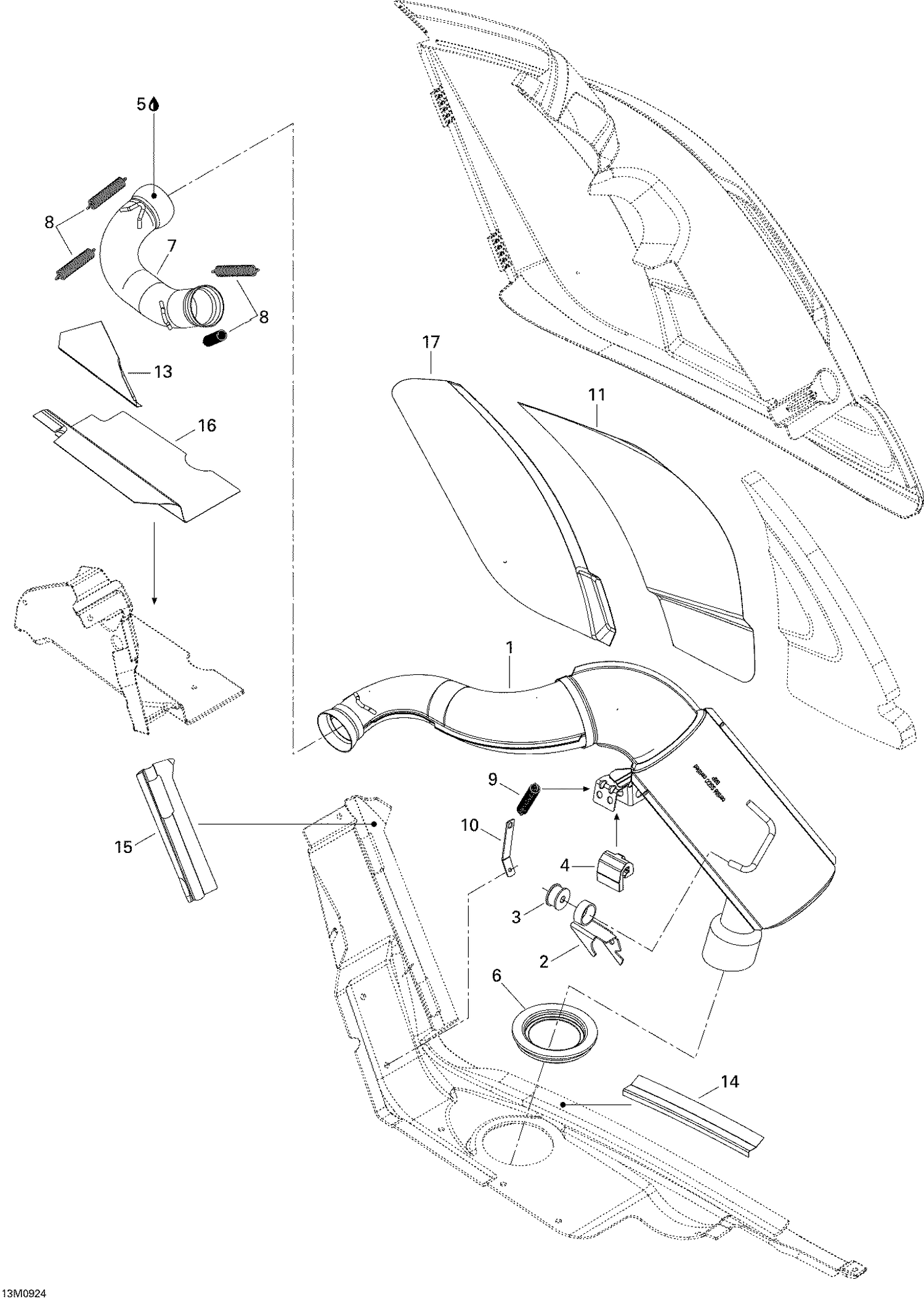

| Ref | Part Number | Description |
|---|
| 1 |
514053930 |
MUFFLER_EXHAUST - Call your local BRP dealership |
| 2 |
514054021 |
Exhaust Support |
| 3 |
707600702 |
Anti-Vibration Rubber This part replaces 707600012. |
| 4 |
514054057 |
UPPER STOPPER - Call your local BRP dealership |
| 5 |
293800090 |
Sealant, Loctite, 80 ml |
| 6 |
514054240 |
EXHAUST GROMMET - Call your local BRP dealership |
| 7 |
514053938 |
EXHAUST ELBOW - Call your local BRP dealership |
| 8 |
415107100 |
Spring |
| 9 |
415107100 |
Spring |
| 10 |
514053393 |
Spring Bracket |
| 11 |
514054083 |
FEFLECTIVE SHEET - Call your local BRP dealership |
| 13 |
514054085 |
REFELCTIVE SHEET - Call your local BRP dealership |
| 14 |
514054086 |
REFELCTIVE SHEET - Call your local BRP dealership |
| 15 |
514054012 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 16 |
514054133 |
REFLECTIVE SHEET - Call your local BRP dealership |
