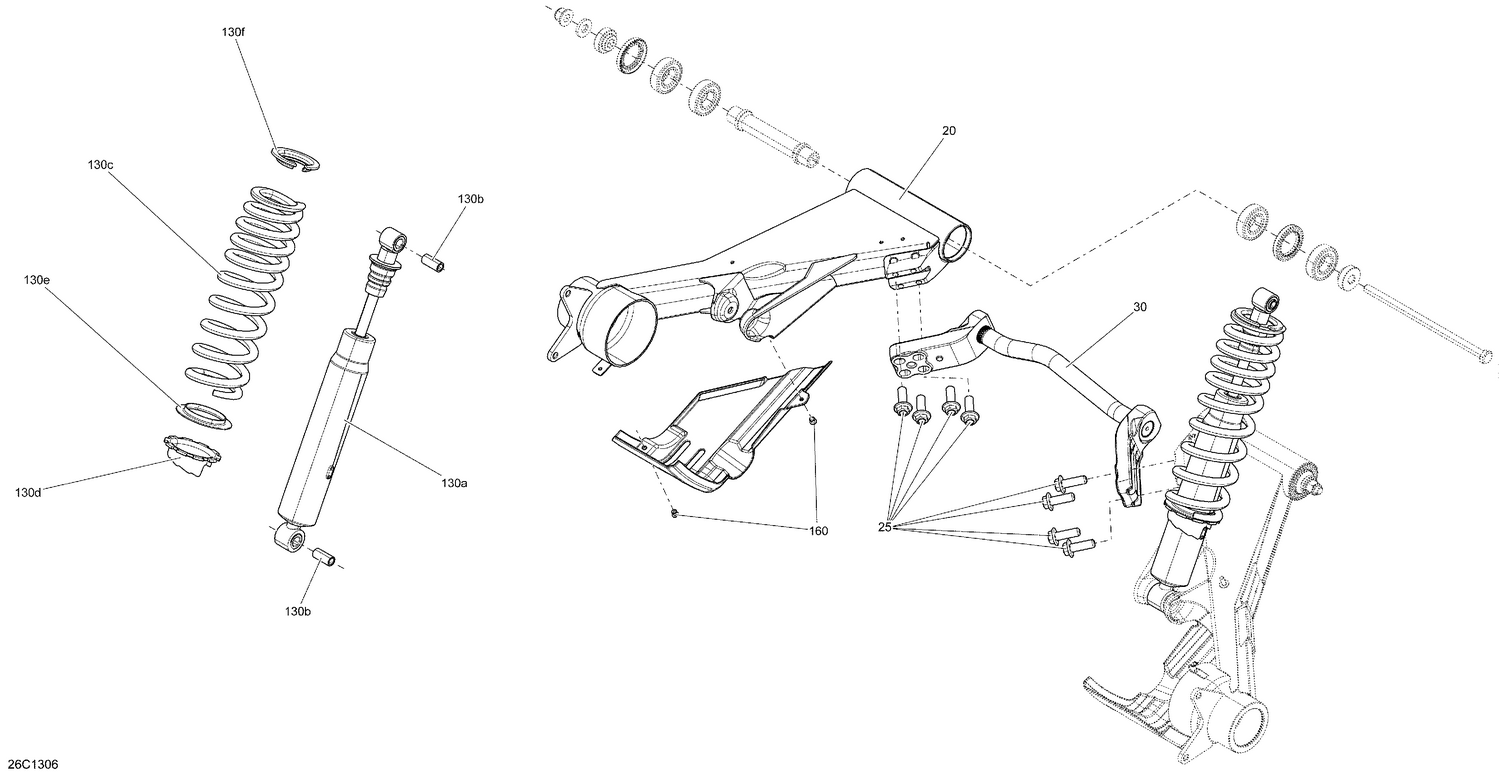

08- Rear Suspension
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 20 | 706001193 | LH Swing Arm |
| 25 | 207503544 | Hex. Flange Screw M10 X 35 |
| 30 | 706002298 | SWAY-BAR - Call your local BRP dealership This part replaces 706001417. |
| 130b | 715900122 | Bushing |
| 130c | 706001167 | SPRING - Call your local BRP dealership |
| 130d | 706000910 | Adjustment Ring |
| 130e | 706000911 | Protector Ring |
| 130f | 706000567 | Spring Stopper |
