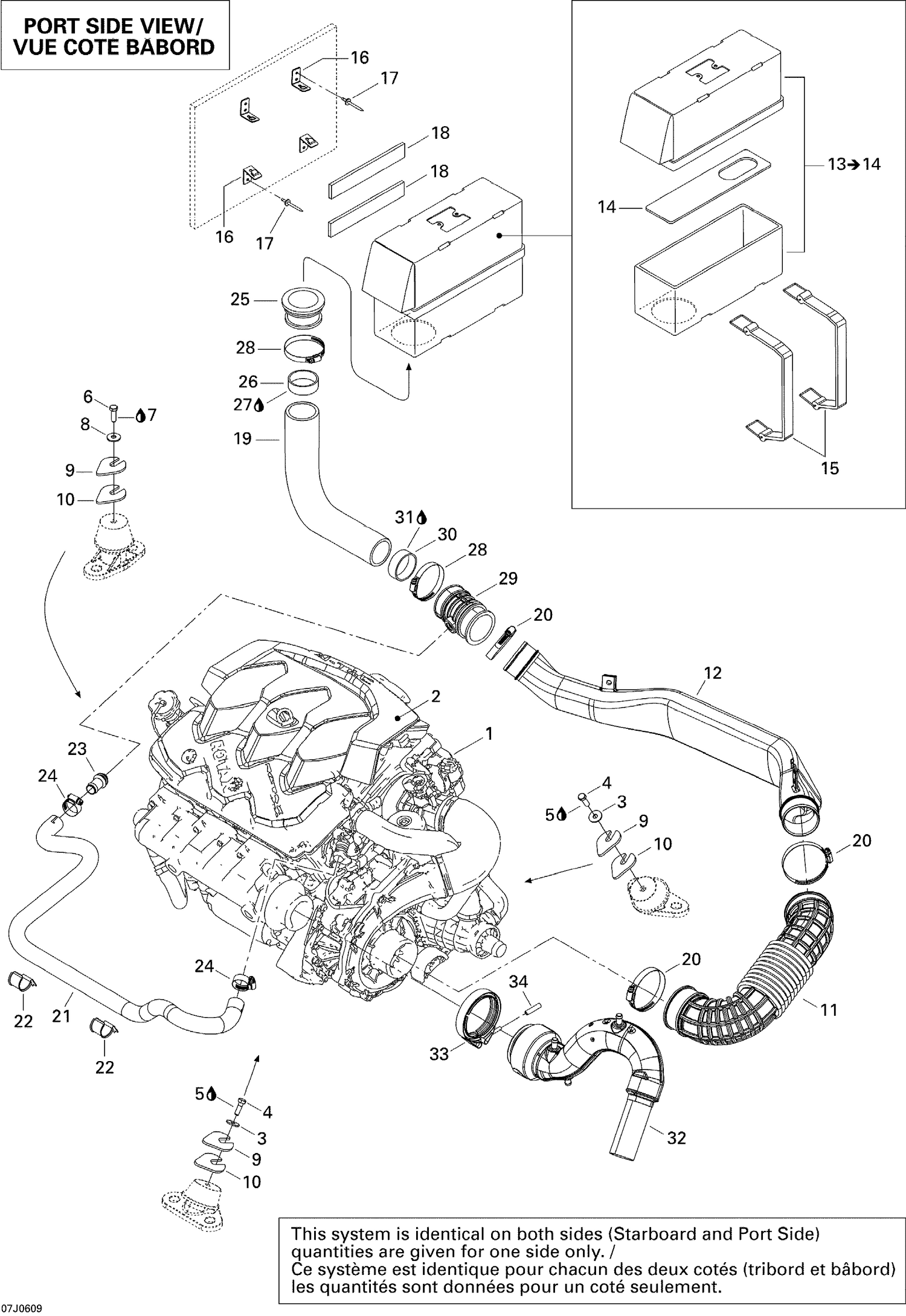

| Ref | Part Number | Description |
|---|
| 1 |
Not |
Available As Spare Part - Rotax Engine 4 Stokes «1503 SCIC» |
| 2 |
270000677 |
COVER ASS'Y - Call your local BRP dealership This part replaces 270000679. |
| 3 |
234082600 |
Flat Washer 8 mm, Stainless |
| 4 |
207182560 |
HEX. SCREW M8 X 25 - Call your local BRP dealership |
| 5 |
293800060 |
Loctite 243, 10 ml |
| 6 |
207182560 |
HEX. SCREW M8 X 25 - Call your local BRP dealership |
| 7 |
293800060 |
Loctite 243, 10 ml |
| 8 |
234082600 |
Flat Washer 8 mm, Stainless |
| 9 |
270000025 |
SHIM 1.3 MM - Call your local BRP dealership |
| 10 |
270000024 |
SHIM 0.4 MM - Call your local BRP dealership |
| 11 |
273000188 |
INTAKE HOSE - Call your local BRP dealership |
| 12 |
273000185 |
Intake Hose |
| 14 |
204250324 |
Air Silencer Divider |
| 15 |
293850097 |
Retainer Strap This part replaces 293850021. |
| 16 |
204060017 |
Strap Clip 90° |
| 17 |
293150088 |
Pop Rivet 3/16" |
| 18 |
202000024 |
NEOPRENE, METER - Call your local BRP dealership |
| 19 |
204340435 |
INTAKE HOSE - Call your local BRP dealership |
| 20 |
293650179 |
Tridon Clamp This part replaces 293650107. |
| 21 |
270000808 |
FORMED HOSE - Call your local BRP dealership This part replaces 270000655. |
| 22 |
275500664 |
Retainer |
| 23 |
273000234 |
Breather Valve This part replaces 273000195. |
| 24 |
293650051 |
Tridon Gear Clamp |
| 25 |
508000254 |
INTAKE ADAPTATOR - Call your local BRP dealership |
| 26 |
204250275 |
ADMISSION ADAPTOR SUPPORT - Call your local BRP dealership |
| 27 |
293800021 |
ADHESIVE LOCTITE 495 - Call your local BRP dealership |
| 28 |
293650179 |
Tridon Clamp This part replaces 293650107. |
| 29 |
204250276 |
Adaptor Hose, Engine |
| 30 |
204250275 |
ADMISSION ADAPTOR SUPPORT - Call your local BRP dealership |
| 31 |
293800021 |
ADHESIVE LOCTITE 495 - Call your local BRP dealership |
| 32 |
274001049 |
EXHAUST PIPE - Call your local BRP dealership |
| 33 |
274001472 |
Exhaust Clamp This part replaces 274000959. |
