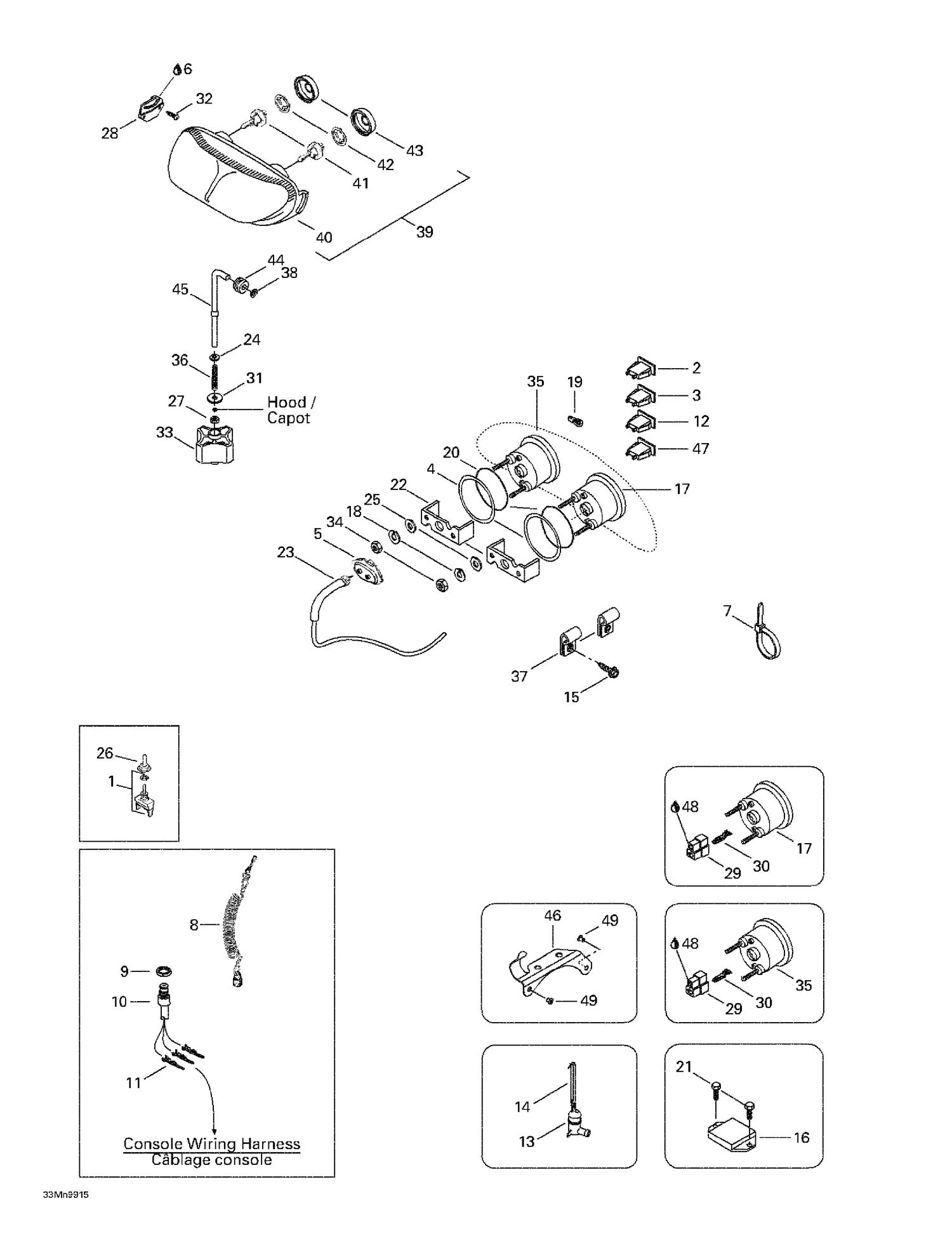

10- Electrical System
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 410107300 | Switch (Heating Grip) |
| 2 | 410109500 | Pilot Lamp (Red) |
| 3 | 410109600 | Pilot Lamp (Blue) |
| 4 | 517258500 | Washer |
| 5 | 572022300 | Drive Angle |
| 6 | 413707500 | Grease Tube Lmz, 400 G |
| 7 | 293750002 | Tie Wrap 142 mm |
| 8 | 515178284 | DESS This part replaces 515166900. |
| 9 | 278002963 | Safety Nut (DESS Switch) This part replaces 278000508. |
| 11 | 515175232 | Male Terminal |
| 12 | 410109700 | Pilot Lamp, Engine Temperature |
| 13 | 414681800 | LEVEL SWITCH - Call your local BRP dealership |
| 14 | 414681900 | Float |
| 15 | Not | Available As Spare Part - Hex. Tapping Screw |
| 16 | 515175216 | Voltage Regulator |
| 17 | 415096400 | Speedometer (MH) |
| 18 | 414806700 | Lock Washer |
| 19 | 410504200 | INSTRUMENTATION BULB - Call your local BRP dealership |
| 20 | 414807100 | O-Ring |
| 21 | 732600021 | Screw M6 x 16 |
| 22 | 414806500 | Case Holder |
| 23 | 415101500 | Speedometer Cable |
| 24 | 234061410 | Flat Washer 6 mm |
| 25 | 517225900 | Flat Washer This part replaces 414806800. |
| 26 | 515175281 | Switch Cover |
| 27 | 232561434 | Elastic Stop Nut M6 This part replaces 228561045. |
| 28 | 517289300 | RH Support |
| 29 | 409204500 | MALE HOUSING - Call your local BRP dealership |
| 30 | 409210000 | MALE TERMINAL - Call your local BRP dealership |
| 31 | Not | Available As Spare Part - Washer |
| 32 | 732601315 | Headlamp Screw |
| 33 | 515175548 | Handle - Call your local BRP dealership This part replaces 572100800. |
| 34 | 414806900 | Nut |
| 35 | 415096500 | Tachometer |
| 36 | 415100600 | SPRING - Call your local BRP dealership |
| 37 | 414176000 | Open Clamp |
| 38 | 732610072 | Push Nut |
| 40 | Not | Available As Spare Part - Double Headlamp |
| 41 | 515176274 | Halogen Bulb, 60/55 W, 12 V ( H4 ) This part replaces 410504401. |
| 42 | 410608300 | BULB HOLDER - Call your local BRP dealership |
| 43 | 410607100 | PROTECTOR CAP - Call your local BRP dealership |
| 44 | 415100800 | Grommet - Call your local BRP dealership |
| 45 | 517295800 | ADJUSTER ROD - Call your local BRP dealership |
| 46 | 515175254 | Cable Support |
| 47 | 410113300 | Pilot Lamp, Dess |
| 48 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 517289400 | LH | Support 517289400 |
| 517289400 | Support | GA 517289400 |
