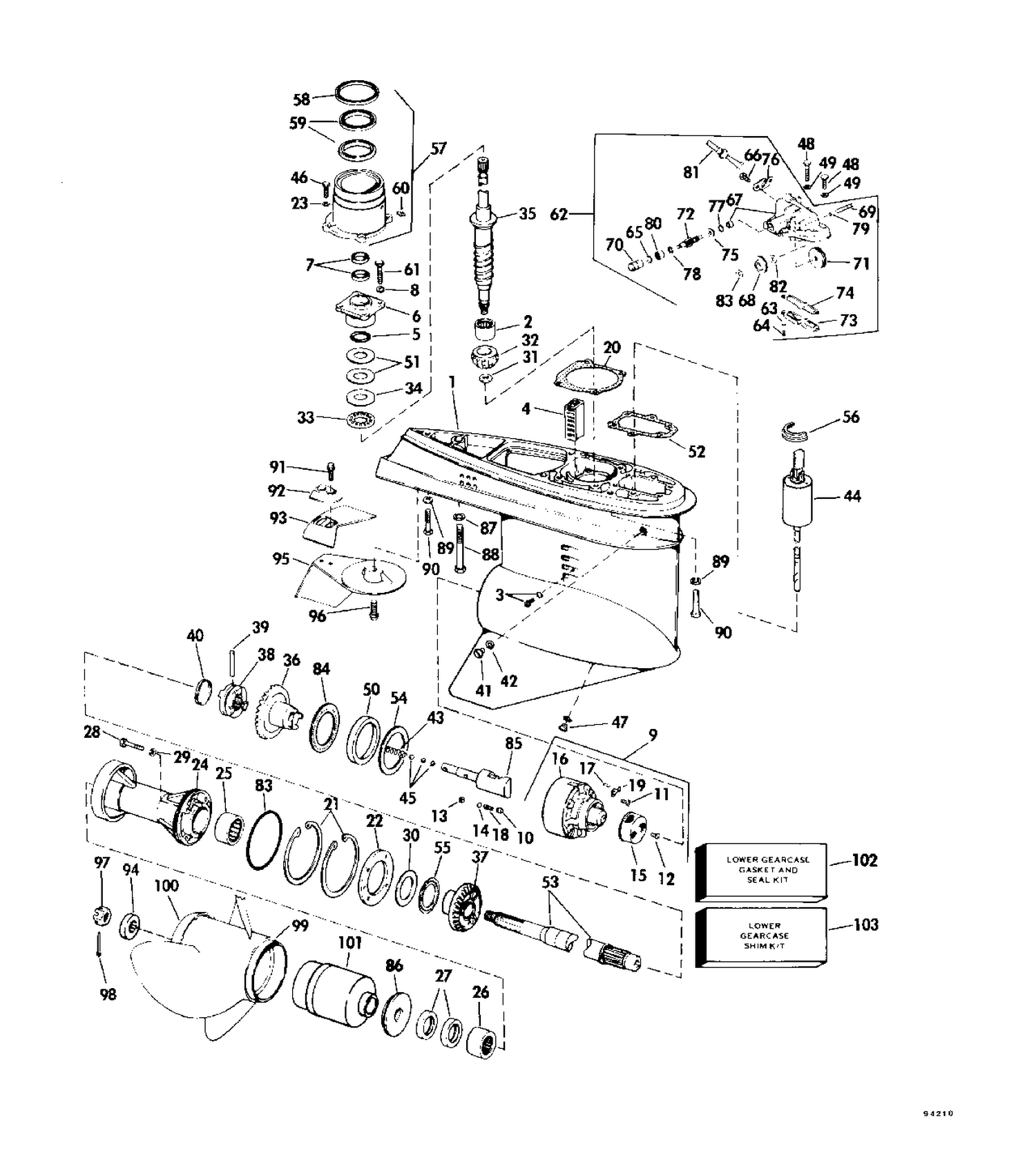

| Ref | Part Number | Description |
|---|
| 1 |
0982111 |
GEARCASE & BEARING ASSY |
| 3 |
0307853 |
O RING |
| 6 |
0982422 |
BEARING HOUSING & SEAL This part replaces 0981104. |
| 9 |
0981609 |
OIL PUMP HOUSING & COVER |
| 24 |
0397087 |
BEARING HOUSING SEAL ASSY. This part replaces 0384523. |
| 28 |
0316563 |
SCREW |
| 29 |
0317178 |
O RING |
| 32 |
0323205 |
PINION |
| 35 |
0982423 |
DRIVESHAFT ASSEMBLY This part replaces 0981258. |
| 36 |
0982243 |
GEAR & BUSHING ASSY, Forward |
| 37 |
0323315 |
GEAR, Reverse |
| 44 |
0981857 |
SHIFT ASSEMBLY, Gearcase |
| 46 |
0329894 |
SCREW This part replaces 0302510. |
| 50 |
0317165 |
THRUST WASHER, Fwd |
| 51 |
0314742 |
SHIM BEARING HOUSING |
| 53 |
0436888 |
PROPELLER SHAFT ASSY. This part replaces 0387818. |
| 54 |
0323363 |
SHIM, .002 inch |
| 54 |
0323364 |
SHIM, .003 inch |
| 54 |
0323365 |
SHIM, .004 inch |
| 56 |
0909945 |
ADAPTER, Shift cylinder to hsg |
| 62 |
0982154 |
SHIFT ASSEMBLY |
| 81 |
0982951 |
CABLE ASSY This part replaces 0981394. |
| 85 |
0982333 |
SHIFT ROD & BEARING ASSY |
| 87 |
0306314 |
L'WASHER,Scr,long |
| 88 |
0313697 |
SCR,Grc to hsg.long |
| 89 |
0307708 |
RONDELLE GROWER |
| 90 |
0552898 |
SCR,Grc to hsg,short |
| 91 |
0341013 |
SCREW, Cover This part replaces 0908668. |
| 92 |
0909548 |
CLAMP, Ext rudder |
| 93 |
0909549 |
EXTENION,Rudder |
| 95 |
0909779 |
TRIM TAB, Gearcase |
| 96 |
0313715 |
SCREW, Cap, hex hd, 7/16-14 x 1 |
| 99 |
0382761 |
PROPELLER ,14 x 11 |
| 99 |
0382765 |
PROPELLER 13 X 19 |
| 99 |
0384136 |
PROPELLER 12-3/4 X 23 |
| 99 |
0389510 |
PROPELLER, 13 * 19 SST |
| 99 |
0389512 |
PRO, 12-3/4 x 21 sst cupped |
| 99 |
0389514 |
PROPELLER 12-3/4 x 23 - SST |
| 99 |
0389788 |
PROPELLER, 12 3/4 x 21 |
| 99 |
0389792 |
PROPELLER 14 x 11 -SST |
| 99 |
0389948 |
PROPELLER, 12-3/4 x 17 - SST |
| 99 |
0389949 |
PROPELLER, 12 3/4 X 15-SST |
| 99 |
0765181 |
PROPELLER This part replaces 0382762. |
| 99 |
0765182 |
PROPELLER - W Models This part replaces 0382763. |
| 99 |
0765183 |
PROPELLER, WDEL Models This part replaces 0382764. |
| 102 |
0982947 |
LOWER GEARCASE GASKET & SEAL KIT This part replaces 0982177. |
| 0982183 |
0982475 |
GEARCASE ASSY, Complete This part replaces 0982183. |
