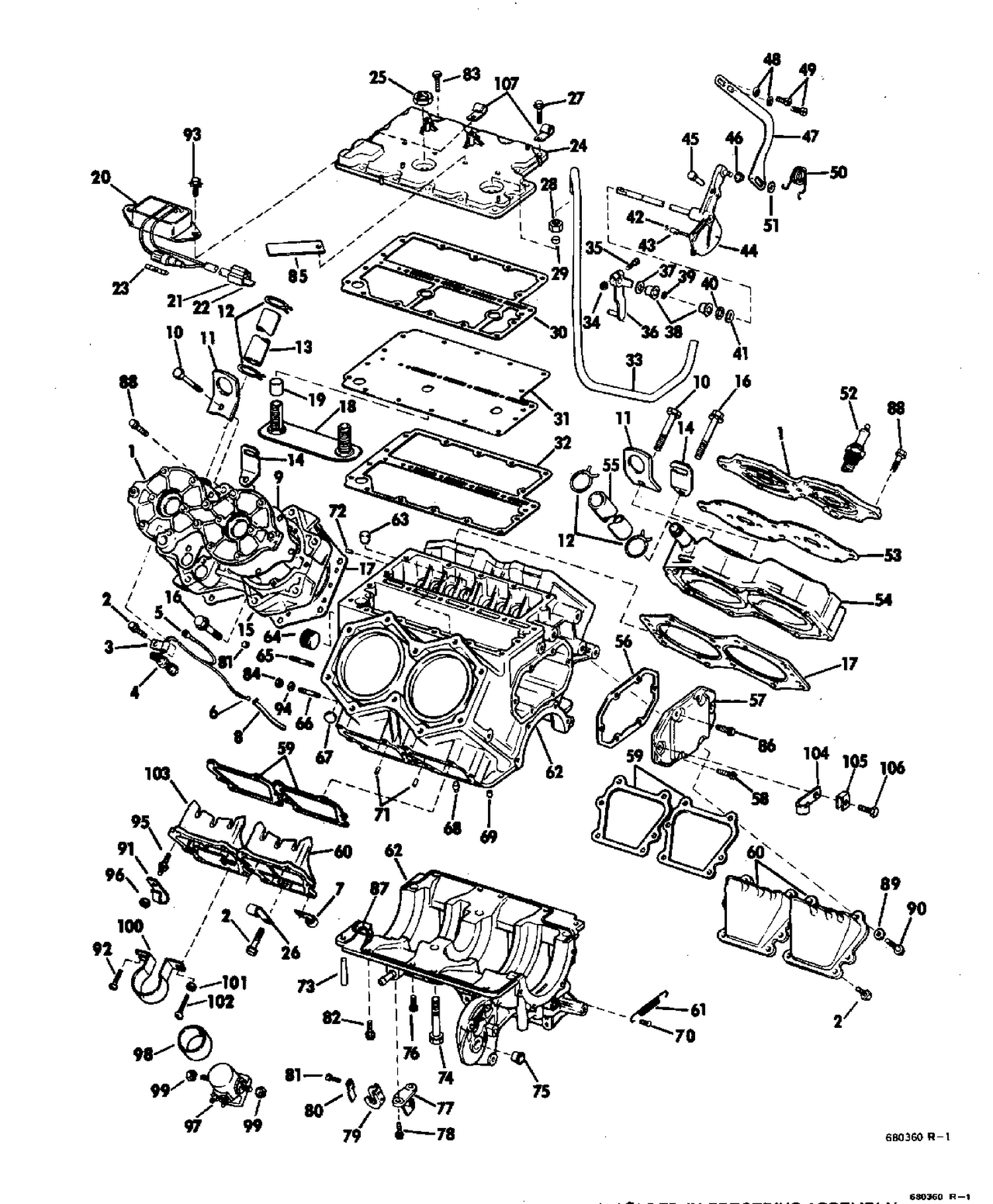

| Ref | Part Number | Description |
|---|
| 1 |
0307710 |
COVER |
| 2 |
0300646 |
VIS, ancrage |
| 3 |
0310441 |
CLAMP, CPS lead |
| 4 |
0378176 |
SWITCH TEM P |
| 7 |
0310441 |
CLAMP, CPS lead This part replaces 0310493. |
| 9 |
0318335 |
COVER, Cylinder head This part replaces 0307709. |
| 10 |
0308817 |
SCREW |
| 11 |
0308823 |
LIFT BRACKET |
| 12 |
0324825 |
CLAMP, Cylinder head hose This part replaces 0305646. |
| 13 |
0310651 |
HOSE,Starboard |
| 14 |
0308992 |
ANCHOR |
| 15 |
0309995 |
CYLINDER HEAD,Starboard |
| 16 |
0307267 |
SCREW |
| 17 |
0306048 |
GASKET |
| 18 |
0378727 |
HEAT EXCHANGER |
| 19 |
0308701 |
SPACER |
| 20 |
0581580 |
VOLTAGE REGULATOR This part replaces 0580651. |
| 23 |
0510714 |
FUSE (3AB 30 AMP) |
| 24 |
0312666 |
EXHAUST COVER,Outer |
| 25 |
0308706 |
NUT |
| 26 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309041. |
| 27 |
0306049 |
SCREW |
| 28 |
0306383 |
NUT |
| 29 |
0306327 |
BALL SLEEVE |
| 30 |
0308671 |
GASKET |
| 31 |
0308669 |
EXHAUST COVER,Inner |
| 32 |
0305176 |
GASKET |
| 33 |
0308884 |
TUBING |
| 35 |
0308754 |
SCREW |
| 36 |
0378771 |
ARM AND INSERT ASSY |
| 37 |
0308987 |
WASHER |
| 38 |
0308985 |
BUSHING |
| 39 |
0308986 |
RETAINING RING |
| 40 |
0303886 |
LOCKWASHER |
| 41 |
0305234 |
BOW WASHER |
| 42 |
0307529 |
JOINT TORIQUE, galet vers contre-came |
| 43 |
0305232 |
ROLLER, Cam foller |
| 44 |
0378752 |
THROTTLE CONTROL |
| 46 |
0307841 |
BUSHING, Control lever |
| 47 |
0308796 |
LINK |
| 48 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz This part replaces 0306015. |
| 49 |
0306014 |
VIS, ancrage |
| 50 |
0316368 |
SPRING This part replaces 0307354. |
| 51 |
0305831 |
SHIM |
| 52 |
0378101 |
SPARK PLUB, Champion j4j |
| 52 |
0378320 |
SPARK PLUG, AC - M42K |
| 52 |
0378368 |
SPARK PLUG, Auto - Lite A21X |
| 53 |
0318334 |
GASKET, Cover port This part replaces 0307257. |
| 54 |
0309994 |
CYLINDER HEAD,Port |
| 55 |
0310650 |
HOSE,Port |
| 56 |
0305435 |
GASKET |
| 57 |
0307757 |
COVER |
| 58 |
0306408 |
SCREW |
| 59 |
0307133 |
GASKET |
| 60 |
0310532 |
COVER BY-PASS |
| 61 |
0307408 |
SPRING |
| 62 |
0379647 |
CYLINDER & CRANKCASE ASSEMBLY |
| 63 |
0306044 |
PLUG |
| 64 |
0305124 |
PLUG |
| 65 |
0310663 |
STUD,Long |
| 66 |
0310662 |
STUD,Short |
| 67 |
0310221 |
CORE PLUG |
| 69 |
0310506 |
PLUG |
| 70 |
0305820 |
DRIVESCREW |
| 71 |
0310507 |
PLUG |
| 72 |
0310508 |
PLUG |
| 75 |
0305068 |
BUSHING |
| 76 |
0300646 |
VIS, ancrage |
| 77 |
0308833 |
BRACKET,Lock |
| 78 |
0308755 |
SCREW |
| 82 |
0309263 |
BOLT, Handle This part replaces 0307342. |
| 84 |
0306320 |
NUT |
| 85 |
0312326 |
COVER,Heat exchanger inlet |
| 87 |
SEAL |
Ref: 77 0300646 *SCREW, Clamp, fuel filter 0300646 |
| 89 |
0306358 |
FLAT WASHER, Helm mounting |
| 90 |
0306409 |
VIS, collecteur vers carter-moteur |
| 91 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309846. |
| 92 |
0303311 |
SCR,Clamp,eng cable |
| 93 |
0304607 |
PULSE PACK SCREW ASSY |
| 94 |
0306453 |
LOCKWASHER, Fuel pump |
| 96 |
0311375 |
NUT |
| 98 |
0311217 |
MANCHON, solénoïde |
| 99 |
0303783 |
NUT |
| 100 |
0312490 |
BRACKET |
| 101 |
0308335 |
CLAMP, Coil |
| 102 |
0306519 |
SCR,Coil clamp |
| 103 |
0323045 |
COVER, By-pass This part replaces 0311240. |
| 104 |
0312266 |
CLAMP,Tube to water cover |
| 105 |
0312267 |
NUT,Clamp |
| 106 |
0510388 |
SCREW,Clamp nut |
| 107 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309322. |
