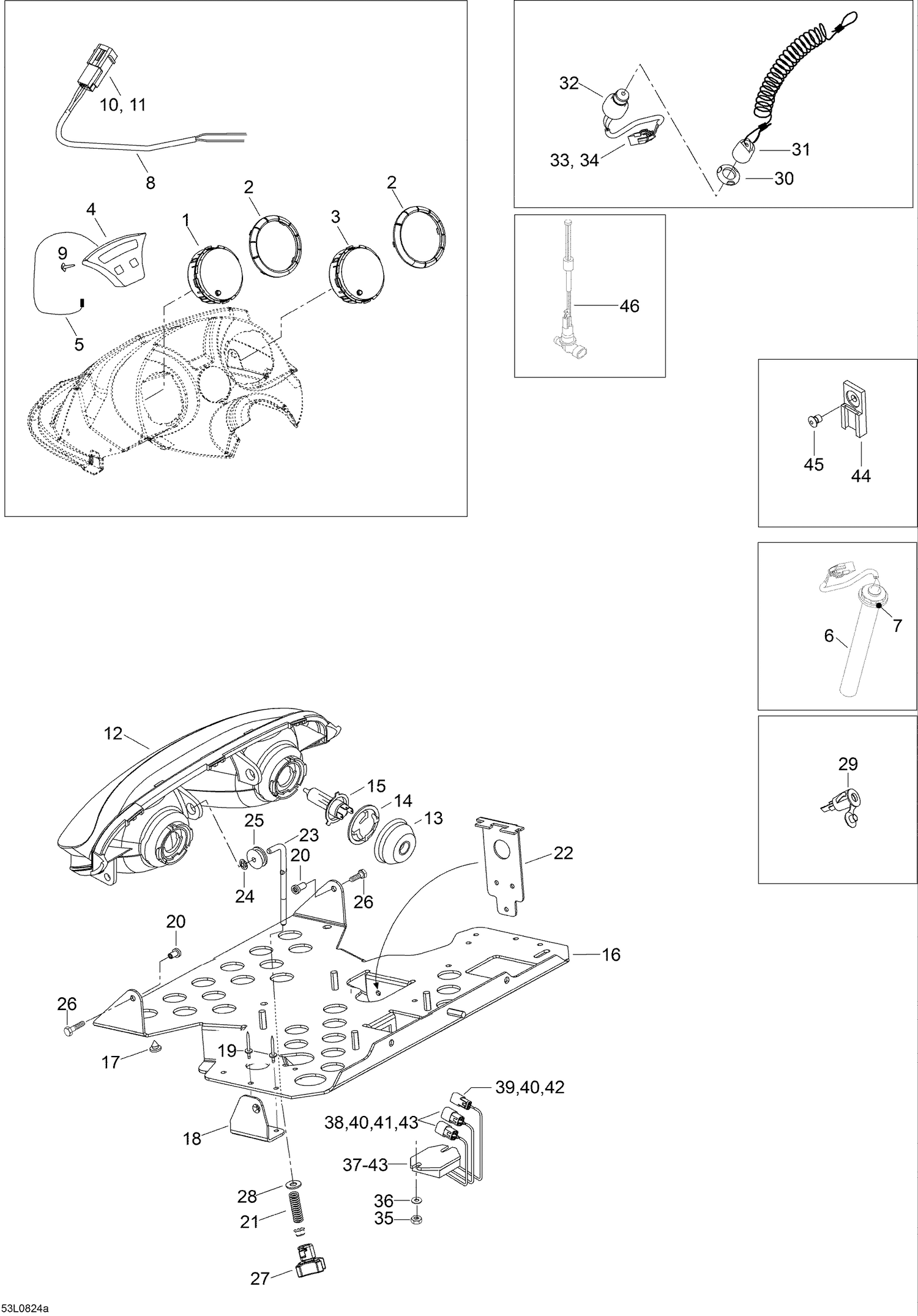

| Ref | Part Number | Description |
|---|
| 1 |
515176477 |
SPEEDOMETER - Call your local BRP dealership |
| 2 |
515179005 |
Gauge Ring This part replaces 515176242. |
| 3 |
515176478 |
TACHOMETER - Call your local BRP dealership |
| 4 |
605352671 |
Multi-Display |
| 5 |
605353700 |
Sender |
| 6 |
605354767 |
Fuel censor |
| 7 |
293720058 |
Grommet |
| 8 |
605352917 |
Wiring harness, multi-display |
| 9 |
40887 |
Wronic-screw 4,2 x 9,5 |
| 10 |
605642629 |
Connector AMP 926882-3 - Call your local BRP dealership |
| 11 |
42268 |
Female connector housing |
| 13 |
515175911 |
COVER - Call your local BRP dealership |
| 14 |
515176385 |
BULB HOLDER - Call your local BRP dealership This part replaces 515175910. |
| 15 |
515176274 |
Halogen Bulb, 60/55 W, 12 V This part replaces 410504401. |
| 16 |
605254946 |
Headlamp support |
| 17 |
605452114 |
Plug |
| 18 |
605453984 |
L.H. Bracket |
| 18 |
605453985 |
R.H. Bracket |
| 19 |
36108 |
Rivet |
| 20 |
250100018 |
NUT M5 - Call your local BRP dealership |
| 21 |
415100600 |
SPRING - Call your local BRP dealership |
| 22 |
605354046 |
Cable support |
| 23 |
517295800 |
ADJUSTER ROD - Call your local BRP dealership |
| 24 |
732610072 |
Push Nut |
| 25 |
415100800 |
Grommet - Call your local BRP dealership |
| 26 |
40231 |
Hex. screw M5 x 30 |
| 27 |
515175975 |
HANDLE - Call your local BRP dealership |
| 28 |
20003 |
Washer A6,4 |
| 29 |
42026 |
Power outlet |
| 30 |
278002963 |
Safety Nut (DESS Switch) This part replaces 278000508. |
| 31 |
515178284 |
Dess. This part replaces 515176461. |
| 32 |
515177249 |
DESS Switch This part replaces 515175797. |
| 33 |
605642628 |
CONNECTOR - Call your local BRP dealership This part replaces 42603. |
| 34 |
42271 |
Male connector housing |
| 35 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 36 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 38 |
278001477 |
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership |
| 39 |
278001674 |
Male terminal housing |
| 40 |
515175568 |
Male terminal |
| 41 |
278001478 |
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership |
| 42 |
278001672 |
Male lock |
| 43 |
293000052 |
Sealing Cap |
| 44 |
270000141 |
Clip This part replaces 515175917. |
| 45 |
36005 |
Rivet |
