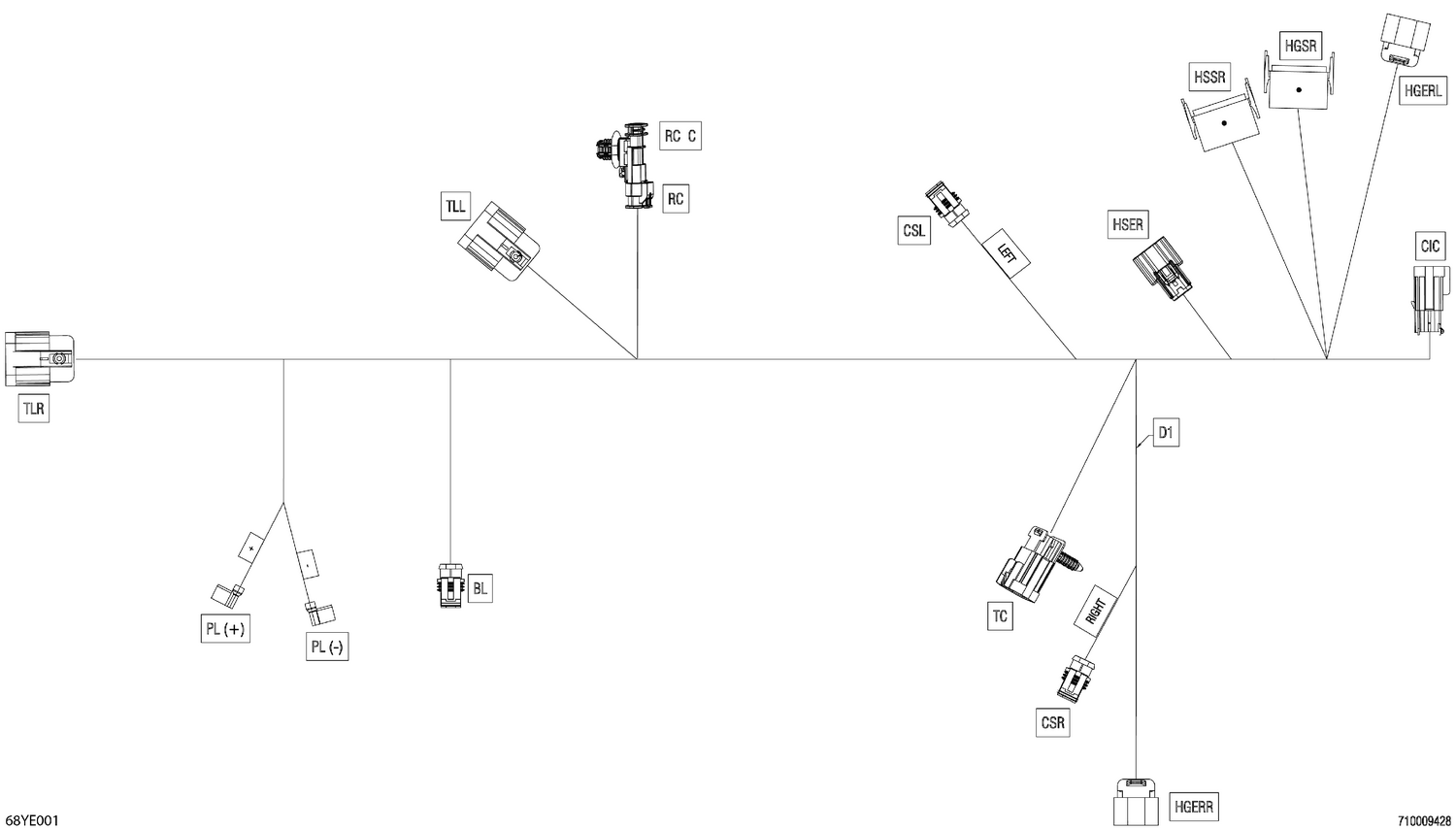

08- Electric - Cargo Wiring Harness - 710009428
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| BL | 409209500 | Female Housing, 2 Circuits |
| BL | 515176621 | Wire Seal |
| BL | 710001340 | Female Terminal |
| CIC | 710001223 | Terminal |
| CIC | 710001224 | Terminal |
| CIC | 710001225 | Cap |
| CIC | 710001227 | Housing |
| CIC | 710001233 | Seal |
| CIC | 710001332 | Seal Wire |
| CSL | 409209500 | Female Housing, 2 Circuits |
| CSL | 515176621 | Wire Seal |
| CSL | 710001340 | Female Terminal |
| CSR | 409209500 | Female Housing, 2 Circuits |
| CSR | 515176621 | Wire Seal |
| CSR | 710001340 | Female Terminal |
| D1 | 409012700 | Diode |
| HGERL | 515177287 | Housing Connector |
| HGERL | 710001229 | Terminal |
| HGERL | 710001233 | Seal |
| HGERR | 515177287 | Housing Connector |
| HGERR | 710001229 | Terminal |
| HGERR | 710001233 | Seal |
| HGSR | 515179481 | Female Terminal |
| HGSR | 710006769 | Female Terminal |
| HSER | 515178018 | Female Terminal |
| HSER | 515178954 | Housing |
| HSSR | 515178302 | Female Terminal |
| HSSR | 515179481 | Female Terminal |
| RC | 710008501 | Connector_TYCO Female 3 Cavities |
| RC | 710008740 | Terminal Tyco Female |
| TC | 710001223 | Terminal |
| TC | 710001224 | Terminal |
| TC | 710001225 | Cap |
| TC | 710001233 | Seal |
| TC | 710001332 | Seal Wire |
| TC | 710001952 | Housing |
| TLL | 515177297 | Male Housing |
| TLL | 710001224 | Terminal |
| TLL | 710001233 | Seal |
| TLR | 515177297 | Male Housing |
| TLR | 710001233 | Seal |
| 4000 | 710009428 | Cargo Harness |
