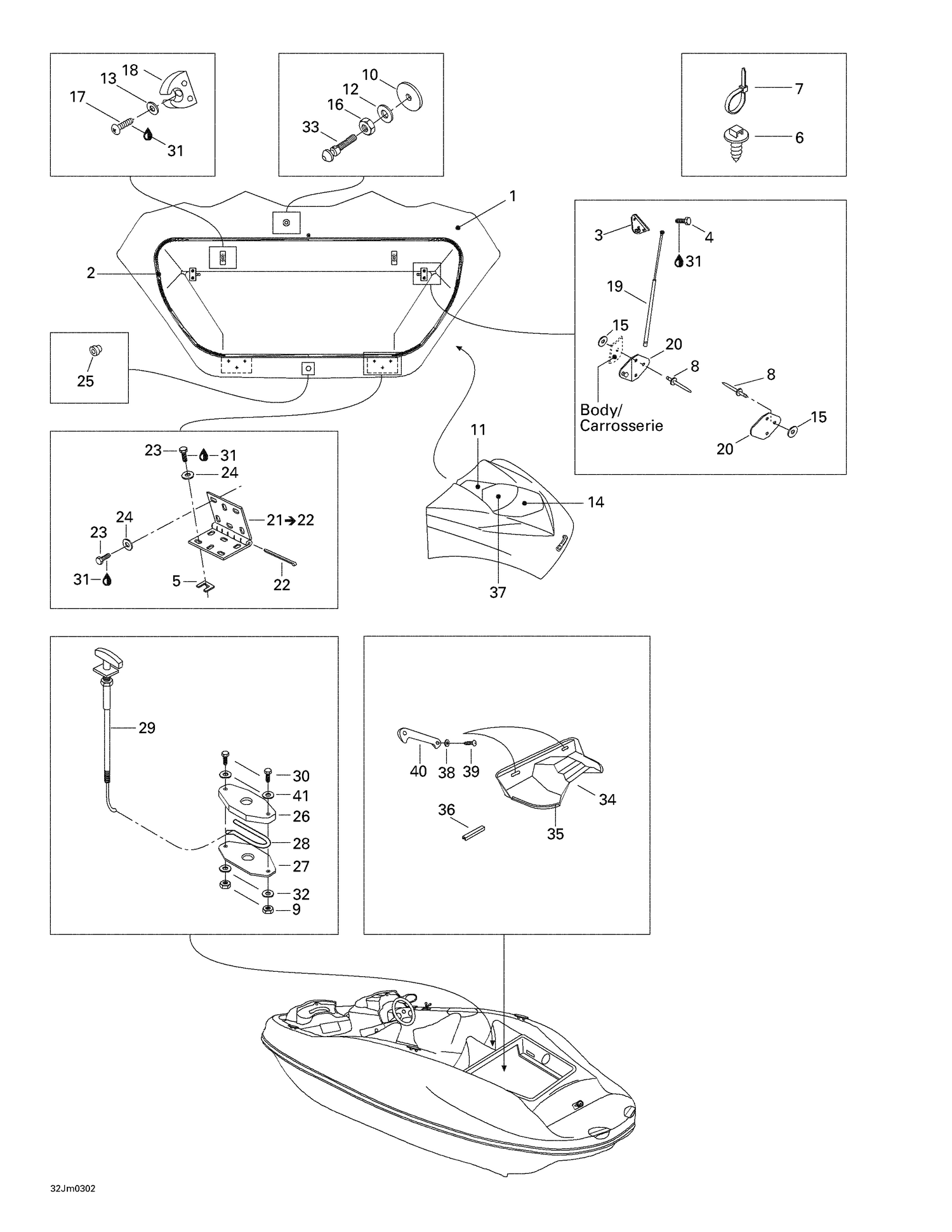

09- Engine Compartment
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 204071483 | Engine Cover |
| 2 | 219704365 | Was 293200017 Neoprene Seal |
| 3 | 204073074 | Shock Bracket This part replaces 204071700. |
| 4 | 207141660 | Hex. Screw M4 X 16 |
| 5 | 204070047 | SPACER 3.2 MM - Call your local BRP dealership |
| 6 | 293730040 | Mount Dart This part replaces 293730018. |
| 7 | 414115200 | Tie-Rap 180 mm |
| 8 | 293150043 | Pop Rivet 3/16" |
| 9 | 232561600 | Hex. Elastic Stop Nut M6 |
| 10 | 291000628 | RUBBER WASHER - Call your local BRP dealership |
| 11 | 204070653 | Front Engine Cover Carpet |
| 12 | 234002600 | Flat Washer 10 mm, Stainless |
| 13 | 234040600 | Flat Washer 4 mm |
| 14 | 204070655 | Step Engine Cover Step Carpet |
| 15 | 234051600 | Flat Washer M5, Stainless |
| 16 | 232100600 | Hex. Jam Nut M10 |
| 17 | 208642560 | PHILLIPS SCREW M4 X 25 - Call your local BRP dealership |
| 18 | 291000642 | Pole Support |
| 19 | 204071052 | RH RETAINER CYLINDER - Call your local BRP dealership |
| 20 | 204070252 | Body Cylinder Support |
| 22 | 204070205 | Cotter Pin M2.5 X 12 |
| 23 | 207162560 | Hex. Screw M6 X 25 |
| 24 | 234061600 | Stainless Flat Washer M6 |
| 25 | 293720017 | GROMMET - Call your local BRP dealership |
| 26 | 204070037 | LATCH BASE - Call your local BRP dealership |
| 27 | 204070036 | LATCH COVER - Call your local BRP dealership |
| 28 | 204070038 | SPRING - Call your local BRP dealership |
| 29 | 204070049 | LATCH CABLE - Call your local BRP dealership |
| 30 | 207163560 | Hex. Screw M6 X 35 |
| 31 | 293800060 | Loctite 243, 10 ml |
| 32 | 234062600 | Flat Washer M6, Stainless |
| 33 | 204700001 | Latch Stud |
| 34 | 204050420 | Access Cover |
| 35 | 219704368 | Seal Tray 1000Mm Long |
| 36 | 204050213 | Trim, Meter |
| 37 | 204070654 | Central Engine Cover Carpet |
| 38 | 234042600 | Flat Washer 4 mm, Stainless |
| 39 | 241141660 | Hex. Flange Screw K40 X 16 |
| 40 | 204050159 | HANDLE, BLACK - Call your local BRP dealership |
| 293750008 | Tie | Wrap 368 mm 293750008 |
