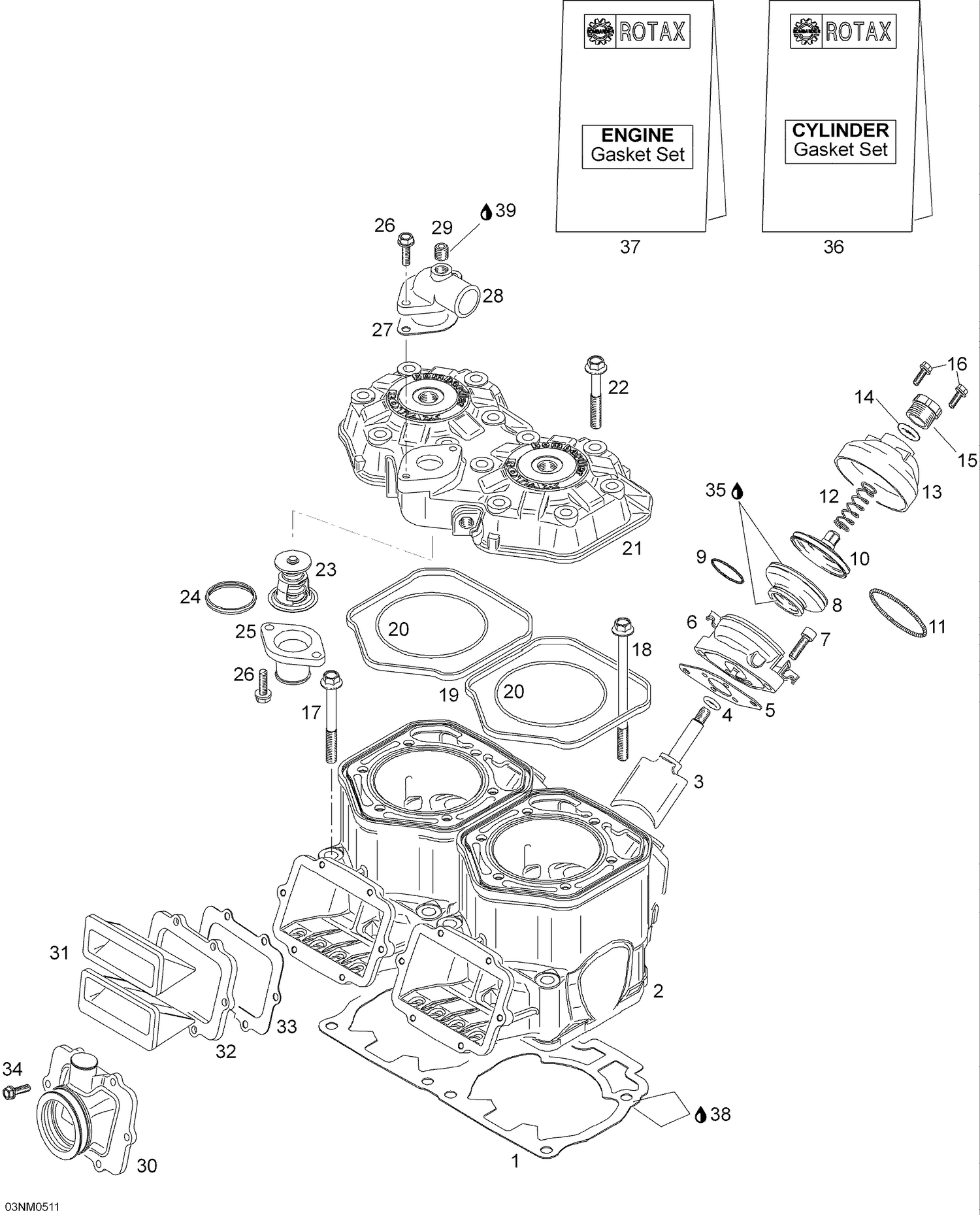

| Ref | Part Number | Description |
|---|
| 1 |
420931837 |
GASKET 0.6 - Call your local BRP dealership |
| 1 |
420931838 |
GASKET 0.5 - Call your local BRP dealership |
| 1 |
420931839 |
GASKET 0.8 - Call your local BRP dealership |
| 1 |
420931964 |
GASKET 0.7 - Call your local BRP dealership |
| 2 |
420613852 |
NICASIL CYLINDER - Call your local BRP dealership |
| 3 |
420854465 |
EXHAUST VALVE - Call your local BRP dealership |
| 4 |
420430110 |
O-Ring |
| 5 |
420931542 |
Gasket |
| 6 |
420854455 |
Valve rod housing |
| 7 |
205062544 |
Allen Screw M6 x 25 This part replaces 420840861. |
| 8 |
420260729 |
Bellows |
| 9 |
420838255 |
Hose spring |
| 10 |
420854449 |
Exhaust valve piston |
| 11 |
420939281 |
Hose Spring This part replaces 420939280. |
| 12 |
420239942 |
SPRING - Call your local BRP dealership |
| 13 |
420911559 |
Valve Cover This part replaces 420911558. |
| 14 |
420430220 |
O-ring |
| 15 |
420241221 |
Adjuster screw This part replaces 420241220. |
| 16 |
420241271 |
Hex. Taptite Screw M5 X 25 This part replaces 420241270. |
| 17 |
420640524 |
Screw M10 x 80 |
| 18 |
420640534 |
Screw M10 x 120 |
| 19 |
420931590 |
Square ring |
| 20 |
420931410 |
O-Ring |
| 21 |
420613920 |
Cylinderhead, red |
| 22 |
420941627 |
Hex. Screw M8 X 56.5 This part replaces 420941621. |
| 23 |
420922519 |
Thermostat This part replaces 420922518. |
| 24 |
420931272 |
Thermostat gasket |
| 25 |
420922025 |
BENT OUTLET SOCKET - Call your local BRP dealership |
| 26 |
420941251 |
SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250. |
| 27 |
420850339 |
Gasket This part replaces 420850338. |
| 28 |
420922062 |
BENT OUTLET SOCKET - Call your local BRP dealership |
| 29 |
420240480 |
PLUG SCREW - Call your local BRP dealership |
| 30 |
420667102 |
Intake socket |
| 31 |
420924798 |
Reed Valve Ass'y This part replaces 420924790. |
| 32 |
420924820 |
DISTANCE FLANGE - Call your local BRP dealership |
| 33 |
420630815 |
Gasket |
| 34 |
420641840 |
TAPTITE SCREW M5 X 35 - Call your local BRP dealership |
| 35 |
420297907 |
Sealing Compound Loctite 5366 310Ml This part replaces 420297906. |
| 36 |
420888745 |
Gasket set, cylinder |
| 37 |
420888741 |
Gasket set, engine |
| 38 |
293800038 |
ADHESIVE LOCTITE 518 - Call your local BRP dealership |
