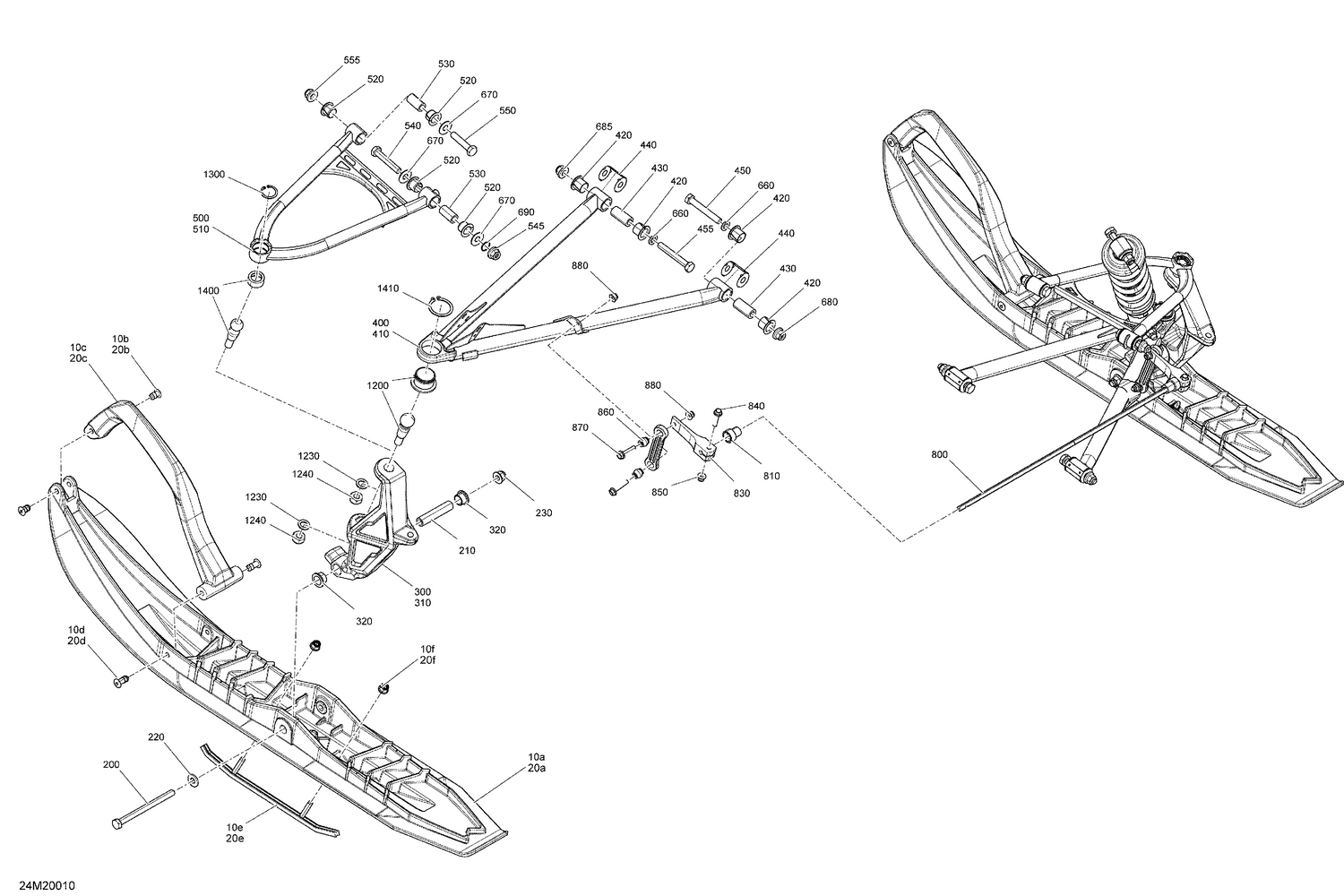

| Ref | Part Number | Description |
|---|
| 10a |
505072855 |
Deep Black, RH Pilot 5.7 Ski |
| 10b |
505071812 |
Retainer 17mm long |
| 10c |
505070963 |
Black, Handle |
| 10d |
505072133 |
Retainer 23mm Long |
| 10e |
860201044 |
Carbide Runner Kit (Square Runner) |
| 10f |
233281414 |
Hex. Flange Elastic Nut M8 |
| 20a |
505072854 |
Deep Black, LH Pilot 5.7 Ski |
| 20b |
505071812 |
Retainer 17mm long |
| 20c |
505070963 |
Black, Handle |
| 20d |
505072133 |
Retainer 23mm Long |
| 20e |
860201044 |
Carbide Runner Kit (Square Runner) |
| 20f |
233281414 |
Hex. Flange Elastic Nut M8 |
| 200 |
250000703 |
Hex. Screw M10 X 130 |
| 210 |
506133300 |
Spacer |
| 220 |
732900049 |
Washer |
| 230 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 300 |
505073007 |
Clear, LH Ski Leg |
| 310 |
505073008 |
Clear, RH Ski Leg |
| 320 |
505072690 |
Leg Bushing |
| 400 |
505072664 |
Black, RH Lower Arm |
| 410 |
505072665 |
Black, LH Lower Arm |
| 420 |
505072208 |
Bushing |
| 430 |
505072209 |
Sleeve |
| 440 |
505072634 |
Wear Plate |
| 450 |
250001024 |
Screw Hex. M10 X 70 |
| 455 |
250001024 |
Screw Hex. M10 X 70 |
| 500 |
505073462 |
Black LH Upper Arm, 42" |
| 510 |
505073463 |
Black RH Upper Arm, 42" |
| 520 |
505072250 |
Bushing |
| 530 |
505072143 |
Sleeve |
| 540 |
250001023 |
Screw Hex. M10 X 60 |
| 545 |
250100165 |
Hex. Flange Elastic Nut M10 |
| 550 |
250001022 |
Screw Hex. M10 X 50 |
| 555 |
250100165 |
Hex. Flange Elastic Nut M10 |
| 660 |
503189564 |
Washer |
| 670 |
505072392 |
Washer |
| 680 |
250100165 |
Hex. Flange Elastic Nut M10 |
| 685 |
250100165 |
Hex. Flange Elastic Nut M10 |
| 690 |
505072448 |
O-Ring |
| 800 |
505072602 |
Stabilisator |
| 810 |
505072064 |
Bushing |
| 830 |
505072394 |
Stabilisator Lever |
| 840 |
207663056 |
Hex. Flange Screw M6 X 1.0 X 30 |
| 850 |
233261466 |
Hex. Flange Elastic Nut M6 |
| 860 |
505072204 |
Sway Bar Double Joint Link |
| 870 |
207663056 |
Hex. Flange Screw M6 X 1.0 X 30 |
| 880 |
233261466 |
Hex. Flange Elastic Nut M6 |
| 1200 |
505073636 |
Ball Joint |
| 1230 |
503192491 |
Washer |
| 1240 |
232521464 |
Hex Elastic Nut M12 X 1.25 |
| 1300 |
293370070 |
Circlip |
| 1400 |
505072913 |
Upper Ball Joint |
