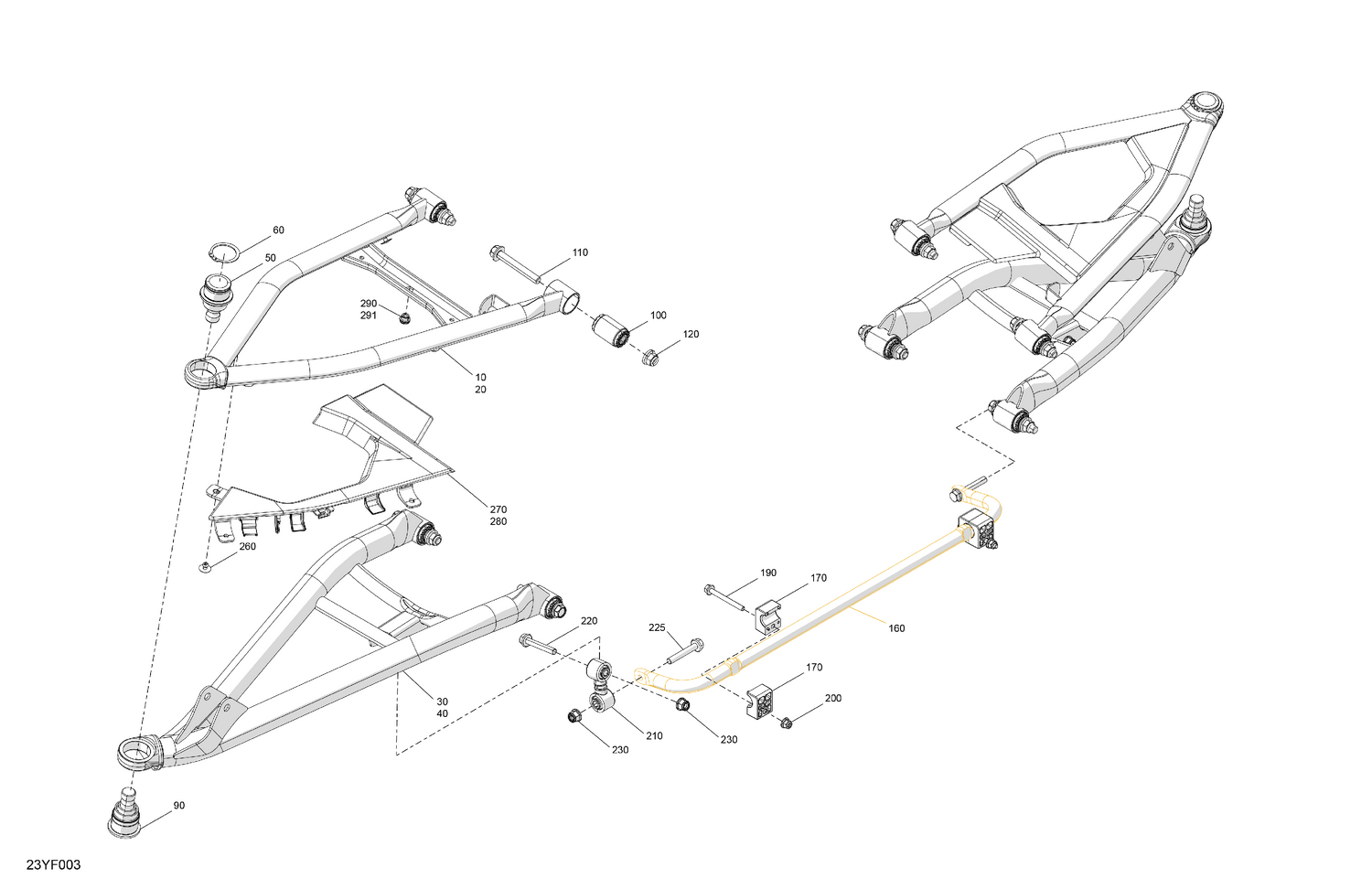

05- Suspension - Front
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 706206016 | Carbon Black, LH Upper Suspension Arm |
| 20 | 706206017 | Carbon Black, RH Upper Suspension Arm |
| 30 | 706206018 | Carbon Black, LH Lower Suspension Arm |
| 40 | 706206019 | Carbon Black, RH Lower Suspension Arm |
| 50 | 706202507 | Ball Joint |
| 60 | 293370035 | Circlip |
| 90 | 706202508 | Ball Joint |
| 100 | 706205028 | Suspension Arm Bushing |
| 110 | 207607056 | Hex. Flange Screw M10 X 70 |
| 120 | 233201466 | Flange Elastic Nut M10 |
| 160 | 706205272 | Stabilizer Bar |
| 170 | 706206011 | Stabilizer Bar Bushing |
| 190 | 250000778 | Hex. Flange Screw M6 X 60 |
| 200 | 233261466 | Hex. Flange Elastic Nut M6 |
| 210 | 706005023 | Stabilizer Bar Link |
| 220 | 207684554 | Hex.Flange Screw M8 X 50 |
| 225 | 207684554 | Hex.Flange Screw M8 X 50 |
| 230 | 233281464 | Elastic Flange Nut M8 |
| 260 | 293150291 | Black, Pop Rivet 3/16 X ,425 |
| 270 | 706205311 | LH Front Suspension Arm Trim |
| 280 | 706205312 | RH Front Suspension Arm Trim |
| 290 | 250100199 | Insert Half Hex Body M6 x 1.0 |
