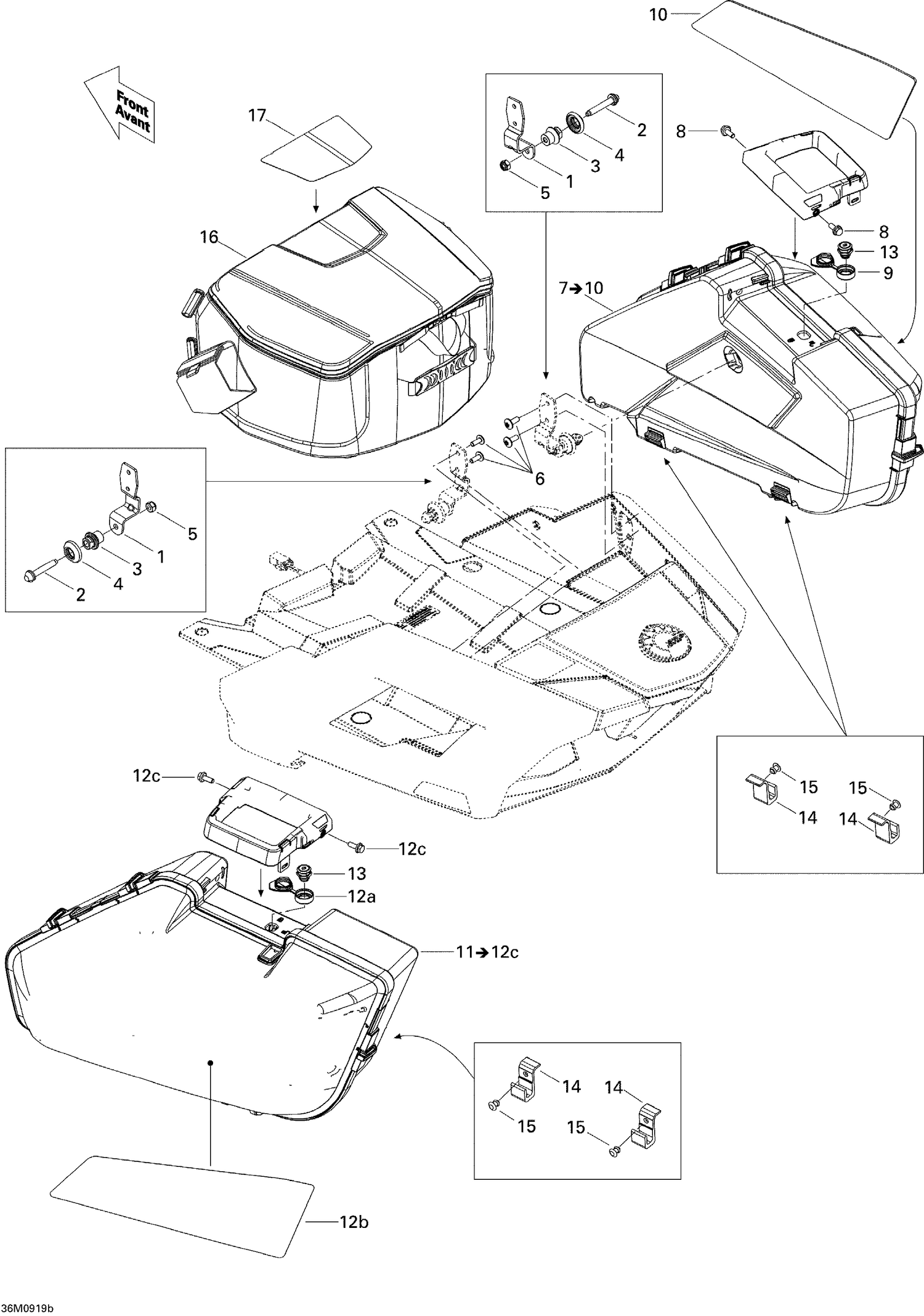

| Ref | Part Number | Description |
|---|
| 1 |
511000580 |
SADDLE BAG LUG SUPPORT - Call your local BRP dealership |
| 2 |
511000337 |
SUITCASE STUD - Call your local BRP dealership |
| 3 |
511000423 |
STUD NUT - Call your local BRP dealership |
| 4 |
511000358 |
Rubber Bumper |
| 5 |
232581200 |
Hex. Elastic Nut M8 Brass |
| 6 |
250000721 |
Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 8 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 9 |
511000639 |
BLACK SEALING CAP - Call your local BRP dealership |
| 10 |
516003766 |
RH BAG DECAL - Call your local BRP dealership |
| 12a |
511000639 |
BLACK SEALING CAP - Call your local BRP dealership |
| 12b |
516003765 |
LH BAG DECAL - Call your local BRP dealership |
| 12c |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 13 |
511000599 |
LOCK - Call your local BRP dealership |
| 14 |
518325618 |
Support Plate |
| 15 |
293150266 |
Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 16 |
860200174 |
REAR TRAVEL BAG - Call your local BRP dealership |
