Parts Catalog

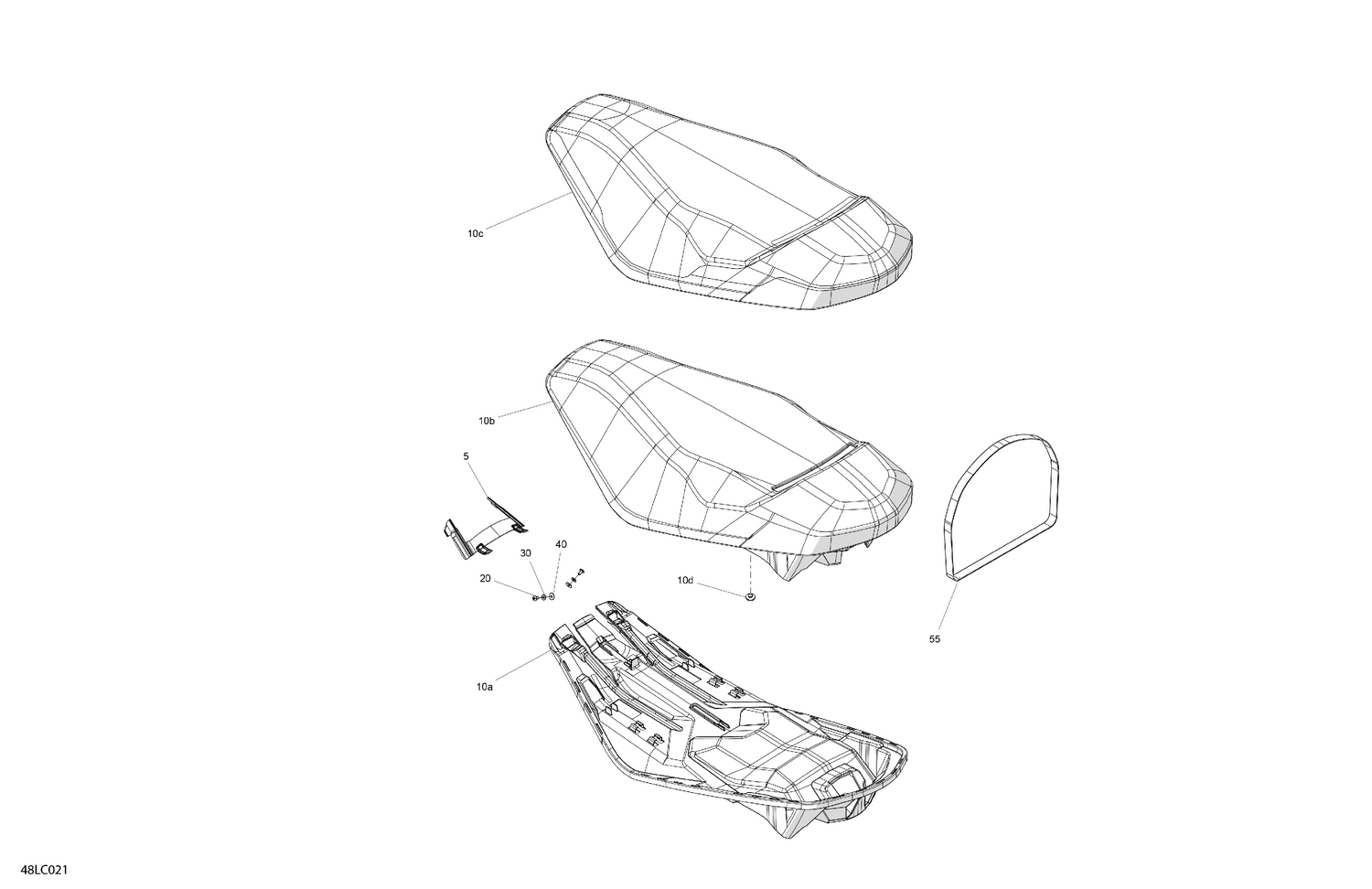

07- Body - Seat - PRO

Parts (8)

Ref	Part Number	Description
5	510007494	Front Seat Support
10a	510006558	Seat Base
10b	510006523	Seat Foam
10c	510007231	Seat Cover 1.5 Up
10d	605452114	Plug
20	250000767	Torx Truss Screw M6 X 12
30	250200039	Flat Washer
40	250200200	Flat Washer 6 MM
