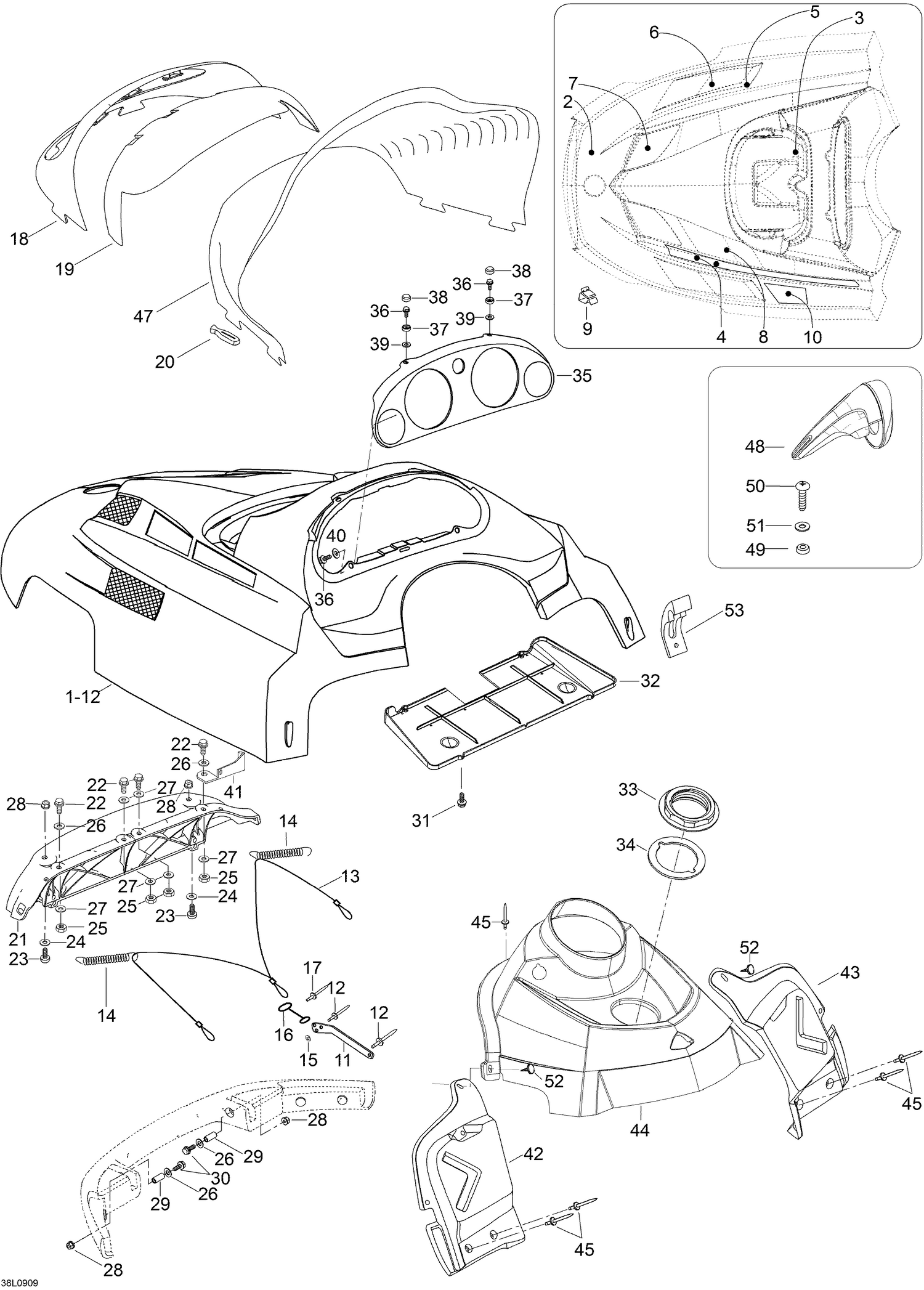

| Ref | Part Number | Description |
|---|
| 1 |
605155272 |
HOOD ASS'Y, CRANBERRY RED - Call your local BRP dealership |
| 2 |
605350919 |
HEAT PROTECTOR - Call your local BRP dealership |
| 3 |
605350920 |
HEAT PROTECTOR - Call your local BRP dealership |
| 4 |
605350921 |
HEAT SHIELD - Call your local BRP dealership |
| 5 |
605350922 |
HEAT PROTECTOR - Call your local BRP dealership |
| 6 |
605350923 |
LH UPPER GRILL - Call your local BRP dealership |
| 6 |
605350924 |
RH UPPER GRILL - Call your local BRP dealership |
| 7 |
605350925 |
LH LOWER GRILL - Call your local BRP dealership |
| 7 |
605350926 |
RH LOWER GRILL - Call your local BRP dealership |
| 8 |
605350927 |
LH GRILL - Call your local BRP dealership |
| 9 |
517302785 |
Edge Clip |
| 10 |
605350929 |
HEAT SHIELD - Call your local BRP dealership |
| 11 |
605452657 |
BRACKET - Call your local BRP dealership |
| 12 |
M36002 |
RIVET - Call your local BRP dealership |
| 13 |
605351372 |
Retainer Cable |
| 14 |
5442675 |
Spring This part replaces M5442675. |
| 15 |
M20001 |
Washer |
| 16 |
M5442870 |
Cable Keeper |
| 17 |
M36097 |
RIVET - Call your local BRP dealership |
| 18 |
517302158 |
HEADLAMP MOULDING, DEEP BLACK - Call your local BRP dealership |
| 19 |
517302003 |
WINDSHIELD SUPPORT - Call your local BRP dealership |
| 20 |
570023800 |
Windshield Latch |
| 21 |
517302631 |
Hinge |
| 22 |
207162044 |
Hex. Screw M6 X 20 |
| 23 |
M40381 |
Screw M6X20 |
| 24 |
20117 |
Washer This part replaces M20117. |
| 25 |
232561414 |
Elastic Stop Nut M6 |
| 26 |
234061410 |
Flat Washer 6 mm |
| 27 |
234062410 |
Flat Washer 6 mm This part replaces M20009. |
| 28 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200. |
| 29 |
517302179 |
BUSHING - Call your local BRP dealership |
| 30 |
M40003 |
Hex. Screw |
| 31 |
243141630 |
Hex. Plastic Screw M4.8 X 16 This part replaces 243141640. |
| 32 |
605151831 |
AIR INTAKE PLATE - Call your local BRP dealership |
| 33 |
517302043 |
CONSOLE NUT - Call your local BRP dealership |
| 34 |
M5447116 |
Gasket |
| 35 |
605355363 |
INDICATOR SUPPORT - Call your local BRP dealership |
| 36 |
M40611 |
Screw Plastofast 4x10 - Call your local BRP dealership |
| 37 |
414436800 |
RETAINER CAP - Call your local BRP dealership |
| 38 |
414436900 |
BLACK SNAP CAP - Call your local BRP dealership |
| 39 |
20037 |
Washer This part replaces M20037. |
| 40 |
M20039 |
WASHER - Call your local BRP dealership |
| 41 |
605351463 |
LH HOOD SUPPORT - Call your local BRP dealership |
| 41 |
605351464 |
RH HOOD SUPPORT - Call your local BRP dealership |
| 42 |
605251384 |
LH CONSOLE - Call your local BRP dealership |
| 43 |
605251385 |
RH CONSOLE - Call your local BRP dealership |
| 44 |
605251387 |
CONSOLE, MIDDLE - Call your local BRP dealership |
| 45 |
36037 |
Black Rivet This part replaces M36037. |
| 46 |
20008 |
Washer 5,3 mm This part replaces M20008. |
| 47 |
605152073 |
Windshield |
| 48 |
517303955 |
Mirror Kit |
| 49 |
250200024 |
Rubber Washer 5 mm |
| 50 |
250000720 |
Torx Screw K50 X 16 This part replaces 250000146. |
| 51 |
250200025 |
Washer M5 |
| 52 |
414644300 |
Black, Dart |
