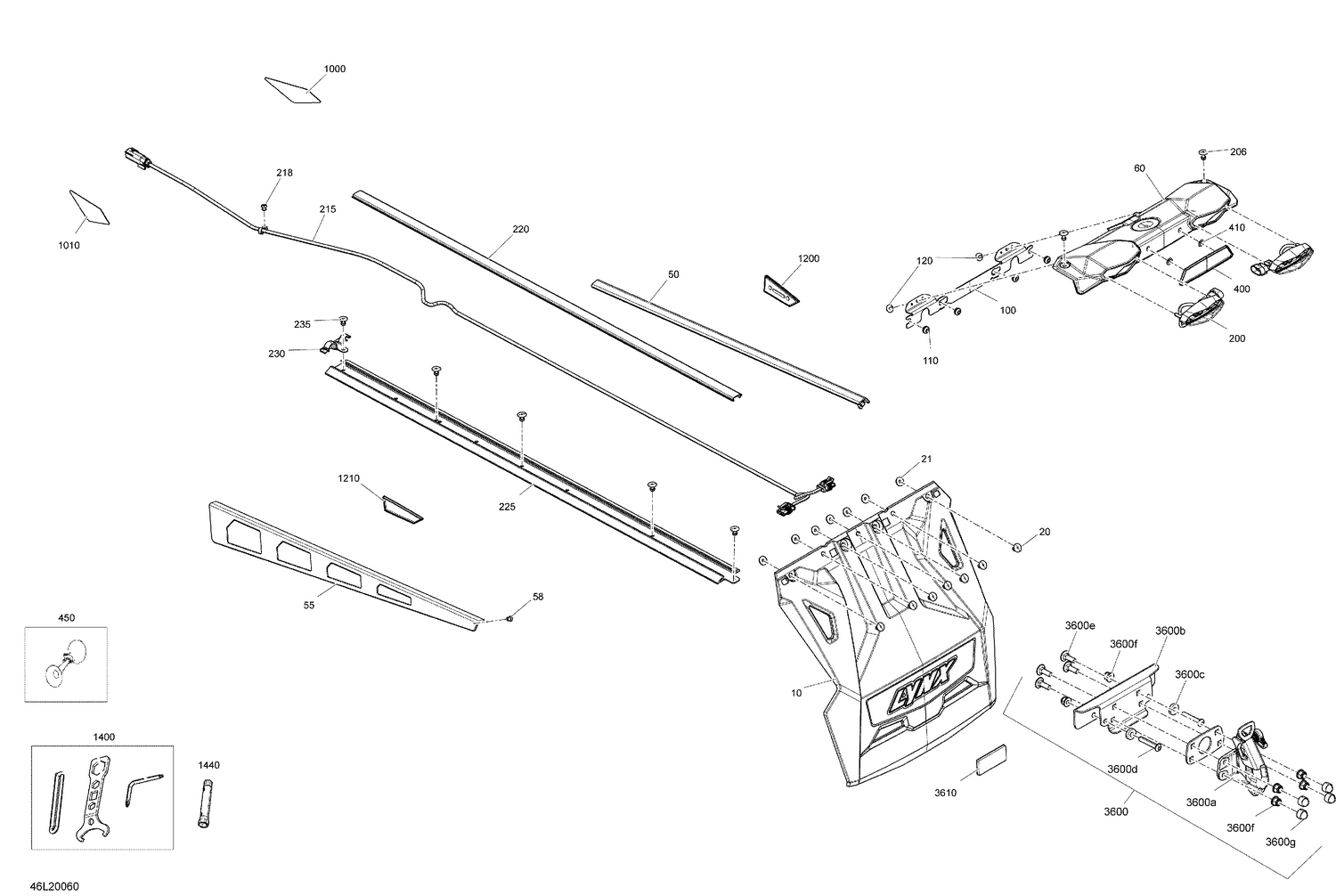

10- Utilities
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 520001886 | Snow Guard |
| 20 | 293150104 | Pop Rivet 3/16 |
| 21 | 517124300 | Washer |
| 50 | 520000693 | RH Protector |
| 55 | 520000694 | LH Protector |
| 58 | 293150163 | Rivet Hucklok |
| 60 | 520001701 | Light Fairing |
| 100 | 520001773 | Rear Light Support Plate |
| 110 | 293720101 | Grommet |
| 120 | 250000805 | Plastite Screw M4 X 10 |
| 200 | 520001302 | Rear Light |
| 206 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 215 | 515178536 | Wiring Harness |
| 218 | 390402200 | Pop Rivet 3/16 |
| 220 | 520002921 | Radiator Trim This part replaces 520001719. |
| 225 | 520002930 | Wire Protector This part replaces 520001703. |
| 230 | 520001722 | Cap |
| 235 | 293150104 | Pop Rivet 3/16 |
| 400 | 705014133 | Rear Reflector Red |
| 410 | 732610072 | Push Nut |
| 450 | 549011291 | Pallotorvi |
| 1000 | 520002343 | RH Front Reflector This part replaces 520001493. |
| 1010 | 520002344 | LH Front Reflector This part replaces 520001494. |
| 1200 | 705007154 | Reflector, Yellow RH |
| 1210 | 705007155 | Reflector, Yellow LH |
| 1400 | 520001814 | Tools Kit |
| 1440 | 529014900 | Socket Wrench 10/13 mm |
| 3600a | 520001826 | Hitch Ass'y |
| 3600b | 520001632 | Hitch Support |
| 3600c | 520001288 | Sleeve |
| 3600d | 205484546 | Socket Head Screw M8 X 45 |
| 3600e | 207782544 | Carriage Bolt, M8 X 25 |
| 3600f | 233281414 | Hex. Flange Elastic Nut M8 |
| 3600g | 28056 | Cover |
