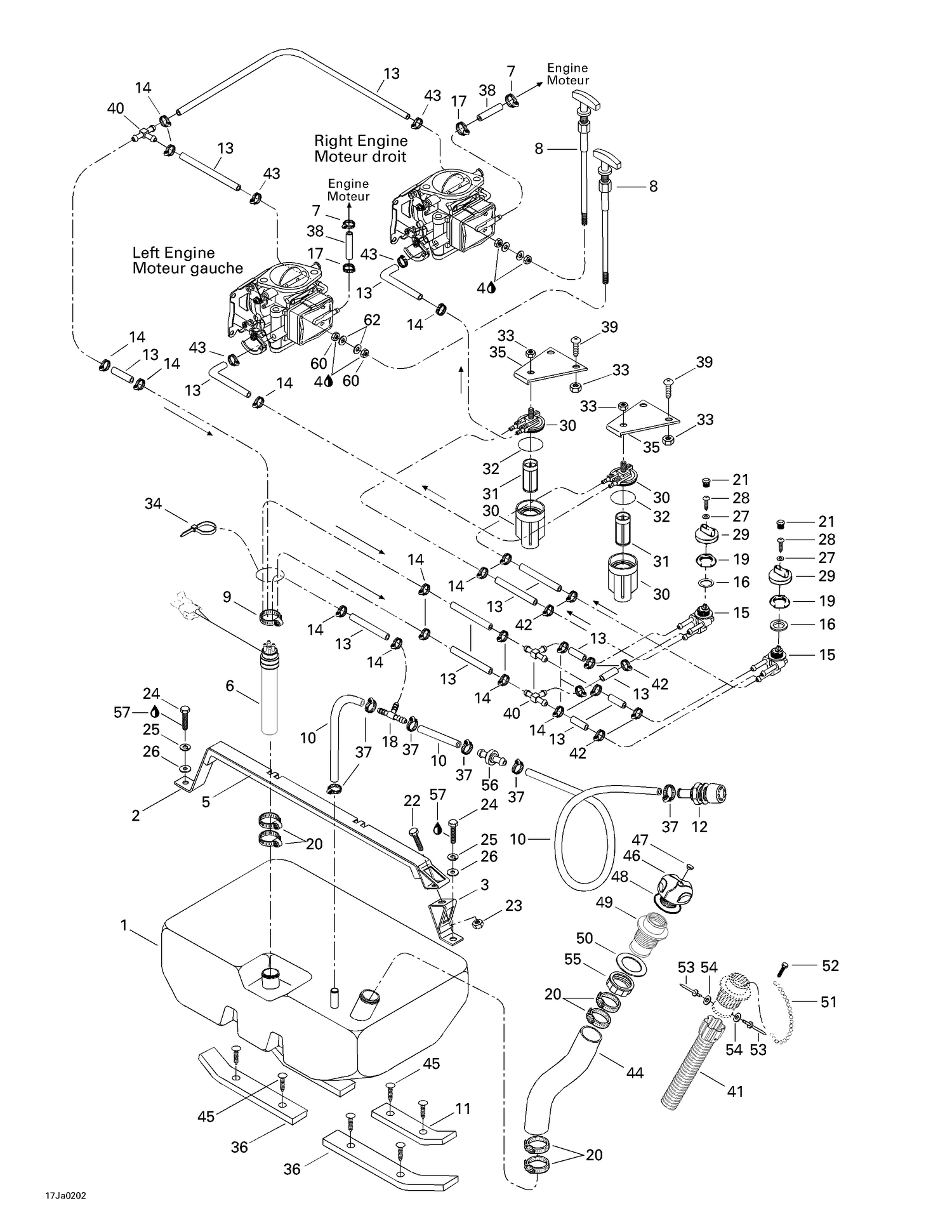

02- Fuel System
Parts (55)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 204560044 | Fuel Tank (Plastic) |
| 2 | 275500199 | Tank Bracket |
| 3 | 275500202 | Strap Bracket |
| 4 | Not | Available As Spare Part - Loctite 220 |
| 5 | 204560029 | Protector Pad |
| 6 | 204560221 | Baffle Pick-up Ass'y |
| 7 | 293650170 | Tridon Gear Clamp This part replaces 293650128. |
| 8 | 204250216 | Choke Cable Ass'y L.H |
| 9 | 293650077 | Norma Clamp This part replaces 293650078. |
| 10 | 204560358 | HOSE 16 MM - Call your local BRP dealership This part replaces 275500205. |
| 11 | 204060704 | Rubber Pad |
| 12 | 275500206 | VENT BOAT - Call your local BRP dealership |
| 13 | 204560178 | HOSE 1/4 - Call your local BRP dealership |
| 14 | 293650121 | NORMA CLAMP - Call your local BRP dealership |
| 15 | 275500098 | Fuel Valve |
| 16 | 293250004 | GASKET - Call your local BRP dealership |
| 17 | 293650042 | Oetiker Clamp |
| 18 | 204560038 | T-Fitting |
| 19 | 212100009 | HEX. PLASTIC NUT - Call your local BRP dealership |
| 20 | 293650081 | Norma Clamp |
| 21 | 275500241 | Black, Cap |
| 22 | 207185560 | HEX. SCREW M8 X 55 - Call your local BRP dealership |
| 23 | 232581600 | Hex. Elastic Nut M8 |
| 24 | 207183060 | Hex. Screw M8 X 30 |
| 25 | 234181601 | Lock Washer 8 mm, Stainless |
| 26 | 234082600 | Flat Washer 8 mm, Stainless |
| 27 | 234040600 | Flat Washer 4 mm |
| 28 | 208640860 | PHILLIPS SCREW M4 X 8 - Call your local BRP dealership |
| 29 | 275500263 | FUEL VALVE KNOB, BLACK - Call your local BRP dealership |
| 31 | 275500089 | FUEL FILTER - Call your local BRP dealership |
| 32 | 275500090 | O-Ring |
| 33 | 232561600 | Hex. Elastic Stop Nut M6 |
| 34 | 414115200 | Tie-Rap 180 mm |
| 35 | 204560007 | Fuel Filter Support |
| 36 | 204060701 | Rubber Pad |
| 37 | 293650069 | NORMA CLAMP - Call your local BRP dealership |
| 38 | 219704396 | HOSE-6MM. 5000MM LONG - Call your local BRP dealership |
| 39 | 208462060 | PHILLIPS SCREW M6 X 20 - Call your local BRP dealership |
| 40 | 293710040 | T Fitting |
| 41 | 275500757 | FILLER NECK, INTERIOR - Call your local BRP dealership This part replaces 275500067. |
| 42 | 293650025 | Oetiker Gear Clamp This part replaces 293650050. |
| 43 | 293650070 | NORMA CLAMP - Call your local BRP dealership |
| 44 | 275500259 | Filler Neck Hose |
| 45 | 293730006 | Black, Dart |
| 47 | 293000034 | Black, Snap Cap |
| 48 | 293250017 | Gasket |
| 49 | 275500247 | Filler Neck |
| 50 | 293250029 | Gasket |
| 51 | 275500015 | Oil Cap Chain |
| 52 | 241140060 | Screw K40 X 10 |
| 53 | 293150057 | Rivet 1/8” |
| 54 | 234032600 | Flat Washer M3, Stainless |
| 55 | 211100012 | Filler Neck Nut, Fuel |
| 56 | 204560101 | VENT FUEL SURGE PROTECTOR - Call your local BRP dealership |
| 204250071 | CHOKE | CABLE - Call your local BRP dealership 204250071 |
