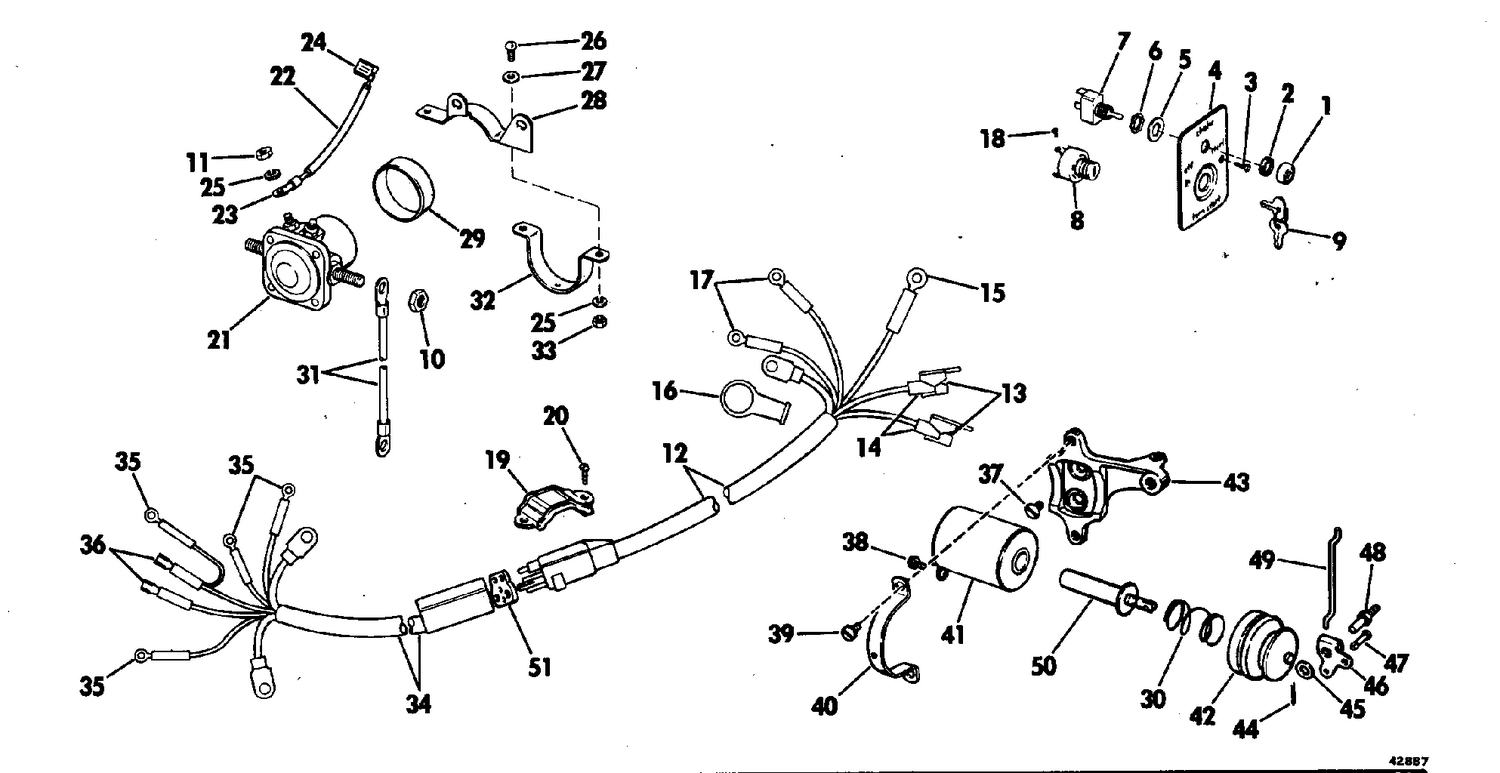

| Ref | Part Number | Description |
|---|
| 4 |
0312080 |
SWITCH PLATE, Choke |
| 5 |
0900696 |
WASHER |
| 7 |
0975257 |
SWITCH ASSEMBLLY |
| 8 |
0386545 |
IGNITION SWITCH & KEY ASSY |
| 9 |
KEY |
Ref: 10 0306422 *NUT 0306422 |
| 12 |
0385157 |
CABLE ASSY, Conn to mtr |
| 19 |
0204468 |
CLAMP, Cable to lower cover |
| 20 |
0306483 |
SCREW, Clamp to lower cover |
| 22 |
0385155 |
LEAD ASSEMBLY |
| 26 |
0131265 |
SCREW, Solenoid mount |
| 28 |
0121562 |
BRACKET, Solenoid mount |
| 29 |
0311217 |
MANCHON, solénoïde |
| 30 |
0303745 |
SPRING, Plunger |
| 31 |
0385156 |
CABLE ASSEMBLY |
| 32 |
0330112 |
BRIDE, solénoïde vers démarreur This part replaces 0311218. |
| 34 |
0385158 |
CABLE ASSY, Dash |
| 39 |
0329594 |
SCREW, Cam follower This part replaces 0303737. |
| 40 |
0328907 |
COLLIER, amorçage vers support This part replaces 0303740. |
| 41 |
0385554 |
SOLENOID |
| 42 |
0303792 |
COVER, Solenoid |
| 43 |
0314824 |
BRACKET |
| 46 |
0303747 |
LEVER |
| 47 |
0382778 |
PIN, Solenoid |
| 48 |
0303739 |
PIVOT PIN |
| 49 |
0315322 |
LINK |
| 50 |
0377890 |
PLUNGER SOLENOID |
| 0172401 |
0172401 |
ELECTRIC STARTING KIT COMPLETE |
