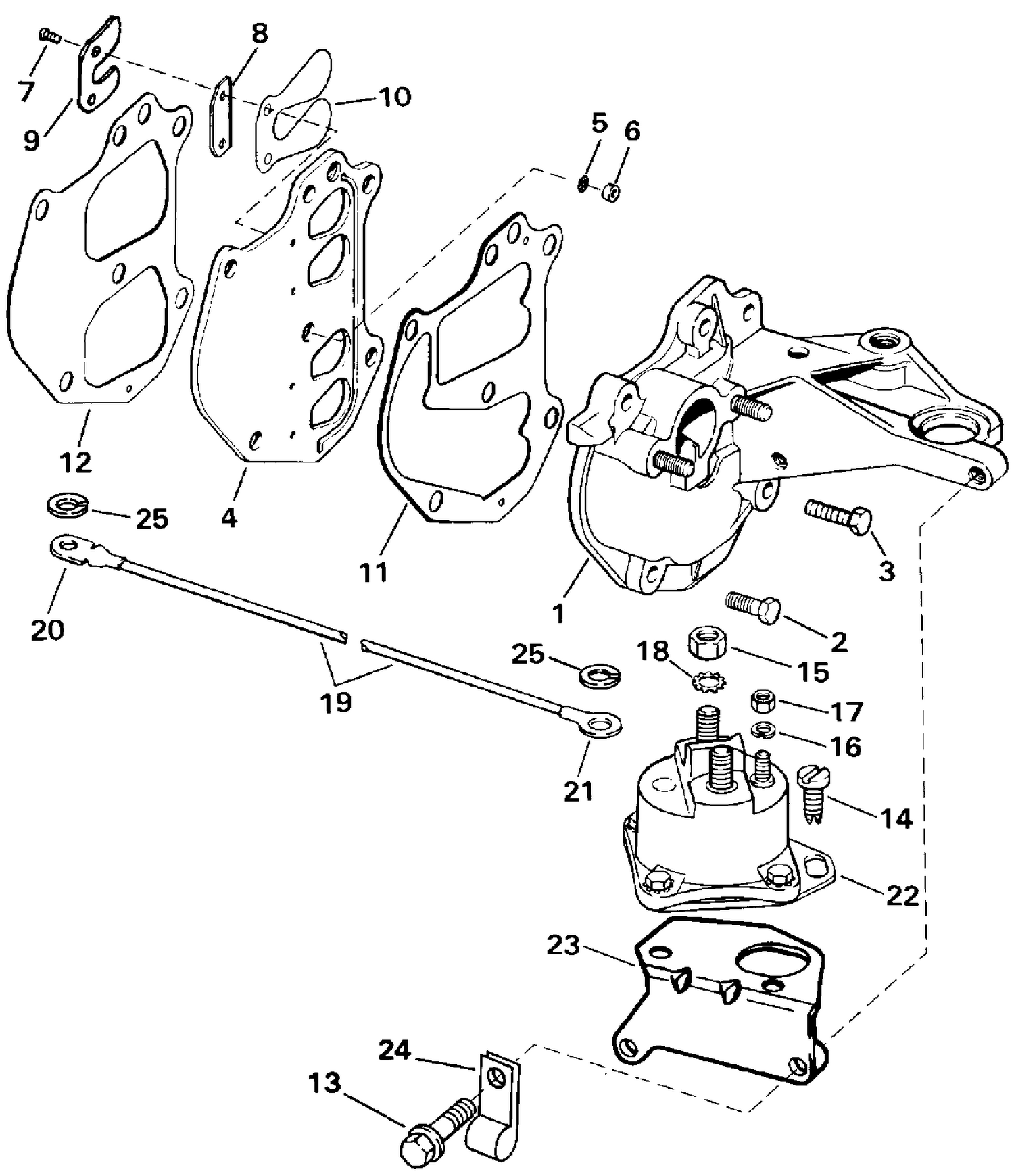

INTAKE MANIFOLD
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0390460 | MANIFOLD, Intake |
| 2 | 0306409 | VIS, collecteur vers carter-moteur |
| 3 | 0306418 | VIS, ancrage |
| 11 | 0325260 | GASKET, Leaf plate |
| 12 | 0318924 | GASKET, Leaf plate to c'case |
| 13 | 0318178 | SCREW, Clamp |
| 14 | 0328731 | VIS, câble de verrouillage |
| 19 | 0584146 | LEAD AY. |
| 22 | 0584128 | SOLENOID ASSY. |
| 23 | 0433859 | BRACKET, Solenoid |
| 24 | 0512066 | CLAMP |
| 0390050 | 0390050 | LEAF PLATE ASSEMBLY |
