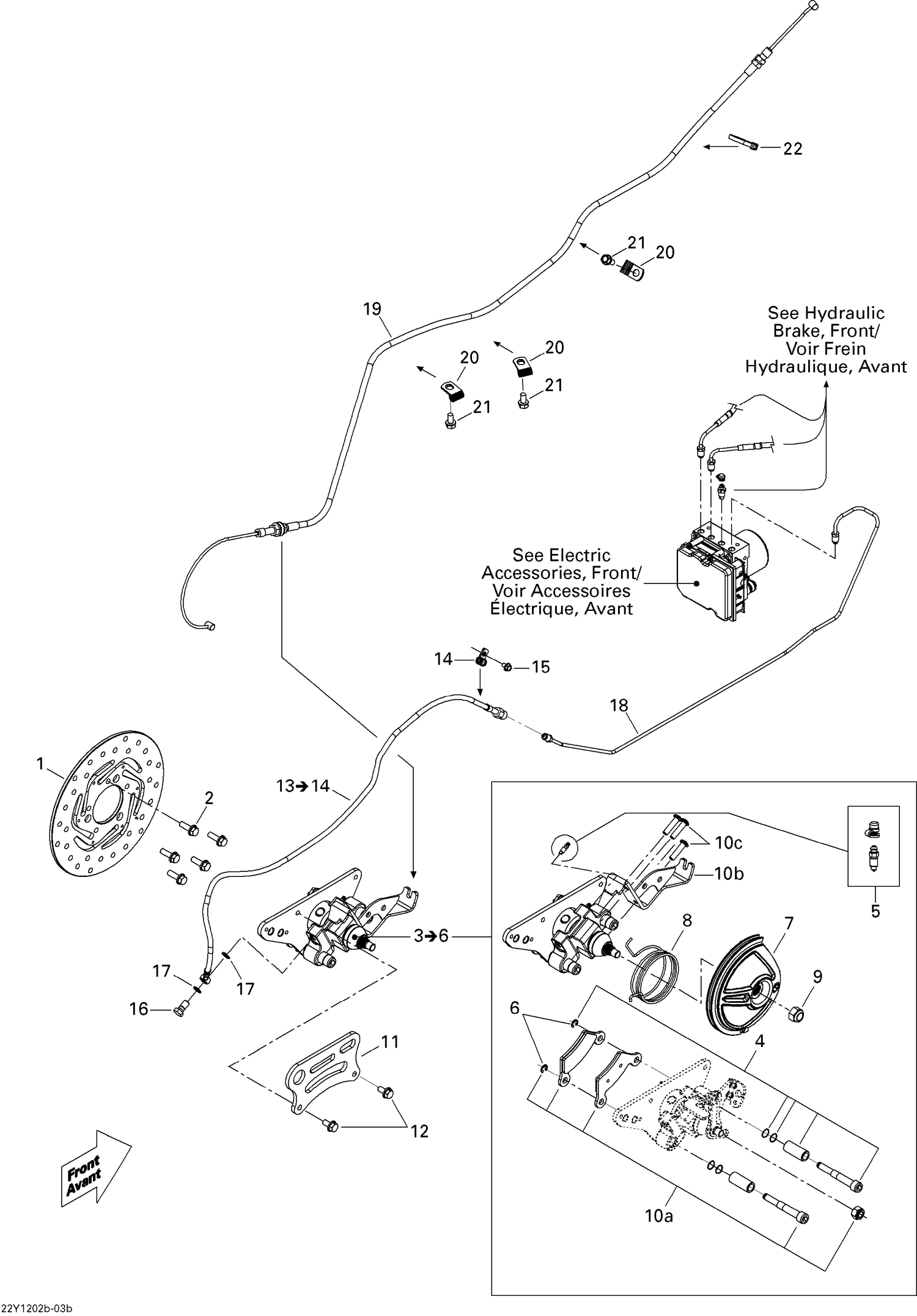

| Ref | Part Number | Description |
|---|
| 1 |
705600591 |
REAR BRAKE DISC - Call your local BRP dealership |
| 2 |
207582544 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 4 |
219800032 |
BUSHING KIT - Call your local BRP dealership |
| 5 |
219800045 |
BLEED SCREW AND SPRING KIT - Call your local BRP dealership |
| 6 |
219800050 |
RETAINING RING - Call your local BRP dealership |
| 7 |
705600772 |
REAR PULLEY CABLE - Call your local BRP dealership |
| 8 |
705601065 |
Spring |
| 9 |
250100128 |
NUT 7/16'' - Call your local BRP dealership |
| 10a |
219800165 |
Rear Pad Kit |
| 10b |
705600974 |
CABLE SUPPORT - Call your local BRP dealership |
| 10c |
250000413 |
THREAD FORMING SCREW 1/4-20 X 1 - Call your local BRP dealership |
| 11 |
705600430 |
REAR CALIPER SUPPORT - Call your local BRP dealership |
| 12 |
207581644 |
Hex. Flange Screw M8 X 16, Scotch Grip |
| 14 |
293650256 |
Clamp This part replaces 705600459. |
| 15 |
210261250 |
Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 16 |
414920500 |
Banjo Bolt |
| 17 |
414920600 |
Washer |
| 18 |
705600834 |
REAR RIGID TUBE - Call your local BRP dealership This part replaces 705601076. |
| 19 |
707000927 |
Parking Brake Cable |
| 20 |
415052400 |
Bracket |
| 21 |
210261250 |
Hex. Flange Screw M6 X 12 This part replaces 210261280. |
