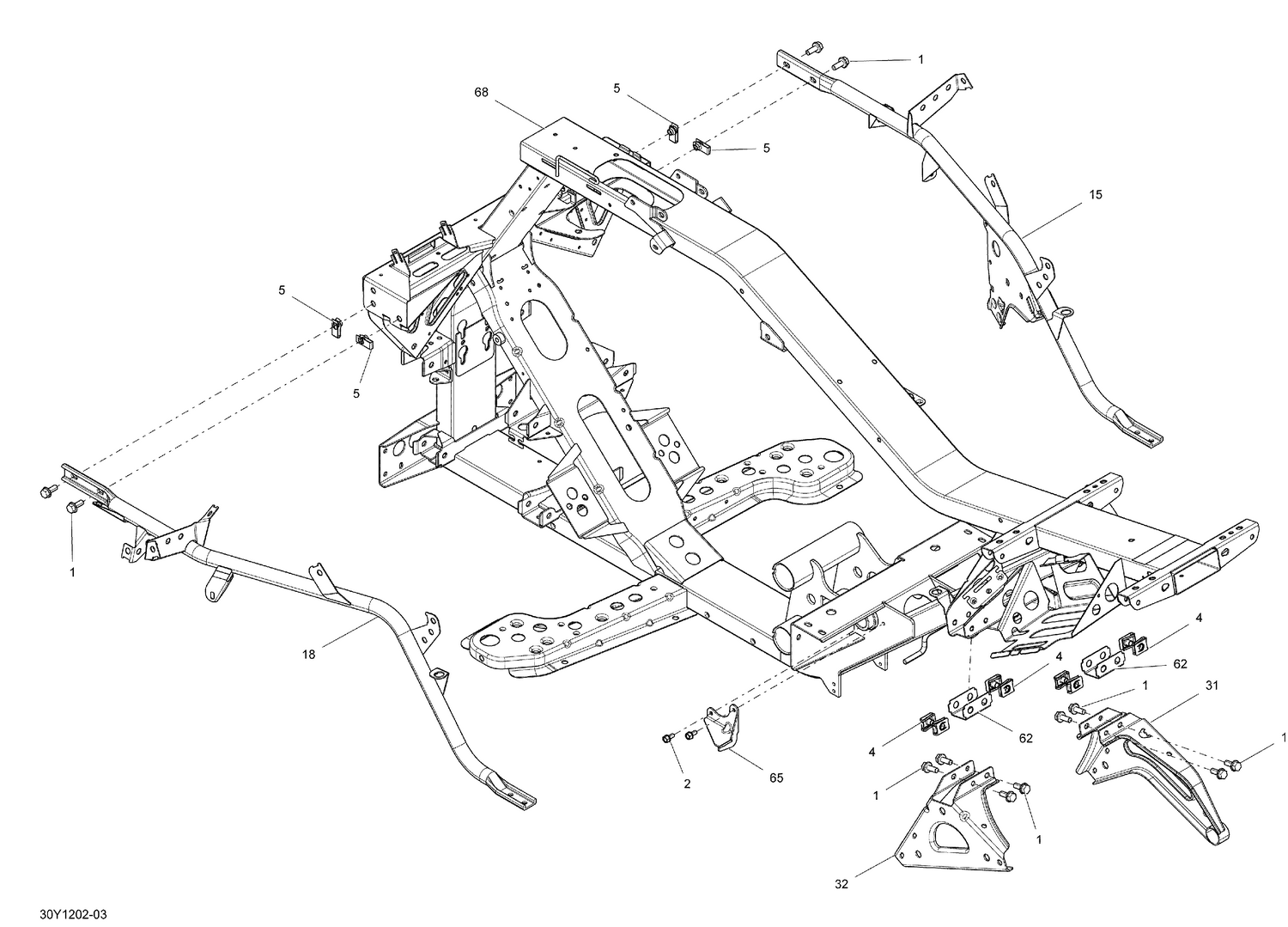

| Ref | Part Number | Description |
|---|
| 1 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 2 |
210261250 |
Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 4 |
250100069 |
Panel Nut M8 X 1.25 |
| 5 |
250100118 |
Panel Nut M8 X 1.25 |
| 15 |
705203271 |
RH SUPPORT - Call your local BRP dealership |
| 18 |
705202817 |
LH LATERAL SUPPORT - Call your local BRP dealership |
| 31 |
705201873 |
RH REAR SUPPORT - Call your local BRP dealership |
| 32 |
705203969 |
Rear Support LH This part replaces 705201874. |
| 62 |
705202484 |
U-Bracket |
| 65 |
705202587 |
Stopper Swing Arm |
