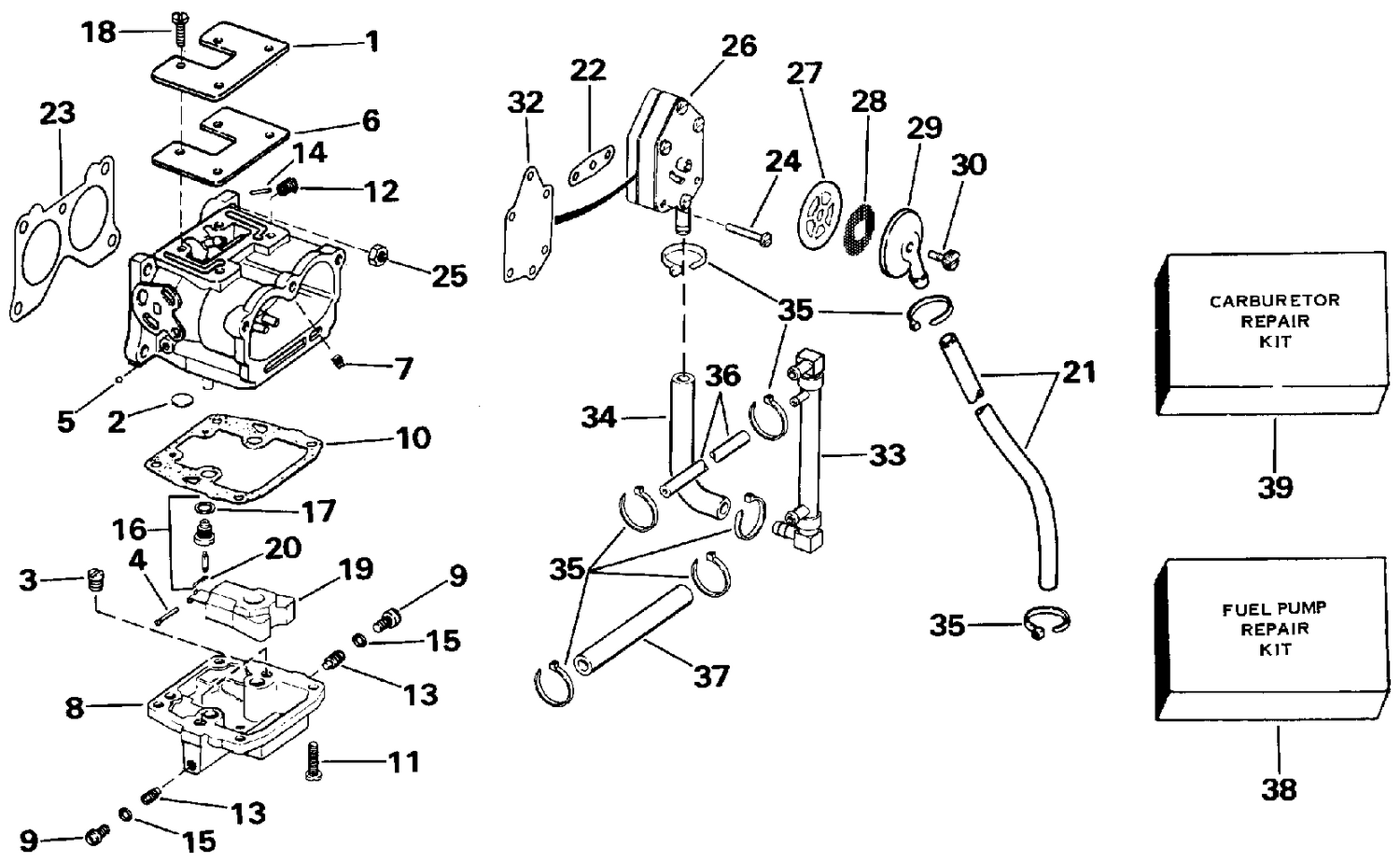

| Ref | Part Number | Description |
|---|
| 1 |
0334352 |
COVER, Idle channel This part replaces 0330132. |
| 3 |
0324652 |
ORIFICE No.26 200TX only |
| 3 |
0333459 |
ORIFICE, #25C, 110 models |
| 6 |
0334353 |
GASKET, Cover This part replaces 0327931. |
| 8 |
0392376 |
FLOAT CHAMBER ASSY. |
| 8 |
0398544 |
FLOAT CHAMBER ASSY. |
| 9 |
0330131 |
CLAMP, Fuel filter |
| 10 |
0338884 |
GASKET, Float bowl This part replaces 0333418. |
| 18 |
0330133 |
SCREW, Breaker plate |
| 18 |
0333750 |
SCREW, Cover |
| 19 |
0383437 |
FLOAT ASSEMBLY |
| 20 |
0336842 |
CLIP, SPRING This part replaces 0603145. |
| 21 |
HOSE, |
Connector to filter, 292mm (11-1/2") |
| 22 |
0303615 |
GASKET |
| 23 |
0327707 |
GASKET, Air silencer |
| 25 |
0328742 |
NUT |
| 26 |
0438556 |
FUEL PUMP ASSY. This part replaces 0398387. |
| 27 |
0338879 |
GASKET, Cap to pump, upper This part replaces 0332694. |
| 29 |
0330092 |
CAP Filter |
| 33 |
0390465 |
FUEL MANIFOLD ASSY. |
| 34 |
0333407 |
FLEXIBLE, filtre à carburant vers pompe à carburant |
| 35 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 36 |
HOSE, |
Manifold to primer, 159mm (6-1/4") |
| 37 |
HOSE, |
Carb. to manifold, 165mm (6-1/2") |
| 38 |
0398514 |
FUEL PUMP REPAIR KIT |
| 0398400 |
0398400 |
CARB ASSY. |
| 0398567 |
0398567 |
CARB ASSY. |
