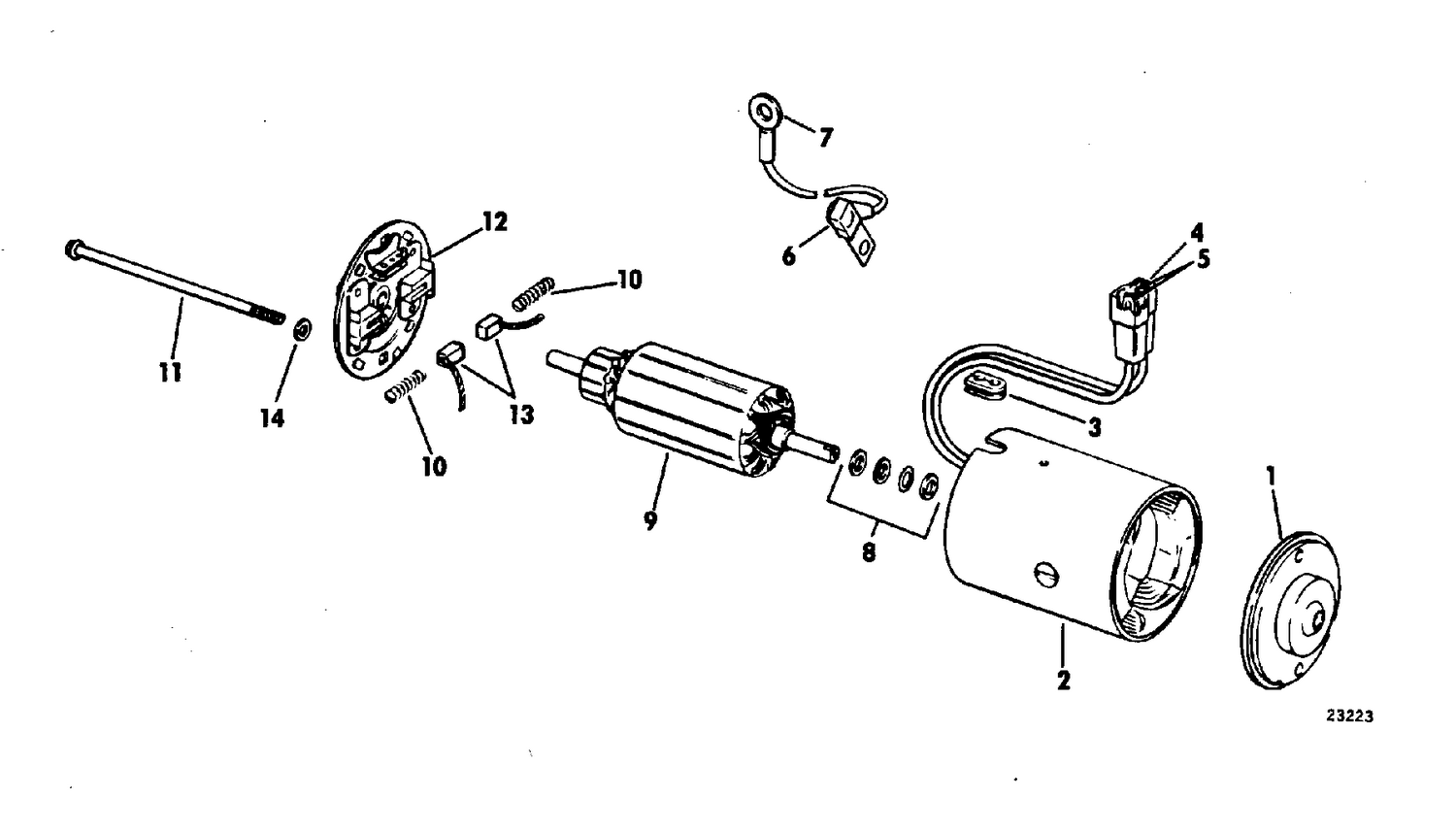

TILT MOTOR ASSEMBLY 100,120,155,165,225,&245 HP STERN DRIVE
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0380705 | HEAD ASSEMBLY |
| 2 | 0382444 | FRAME & FIELD COIL ASSEMBLY |
| 3 | 0309595 | GROMMET |
| 4 | 0510472 | CONNECTOR |
| 6 | 0383420 | FUSE LEAD ASSY |
| 8 | 0380752 | THRUST WASH AND SPACER PKG |
| 9 | 0382544 | ARMATURE ASSEMBLY |
| 11 | 0382443 | THRU BOLT PACKAGE |
| 12 | 0382545 | HEAD ASSEMBLY COMMUTATOR END BRUSH SET |
| 0382138 | 0382138 | POWER PISTON ASSY |
