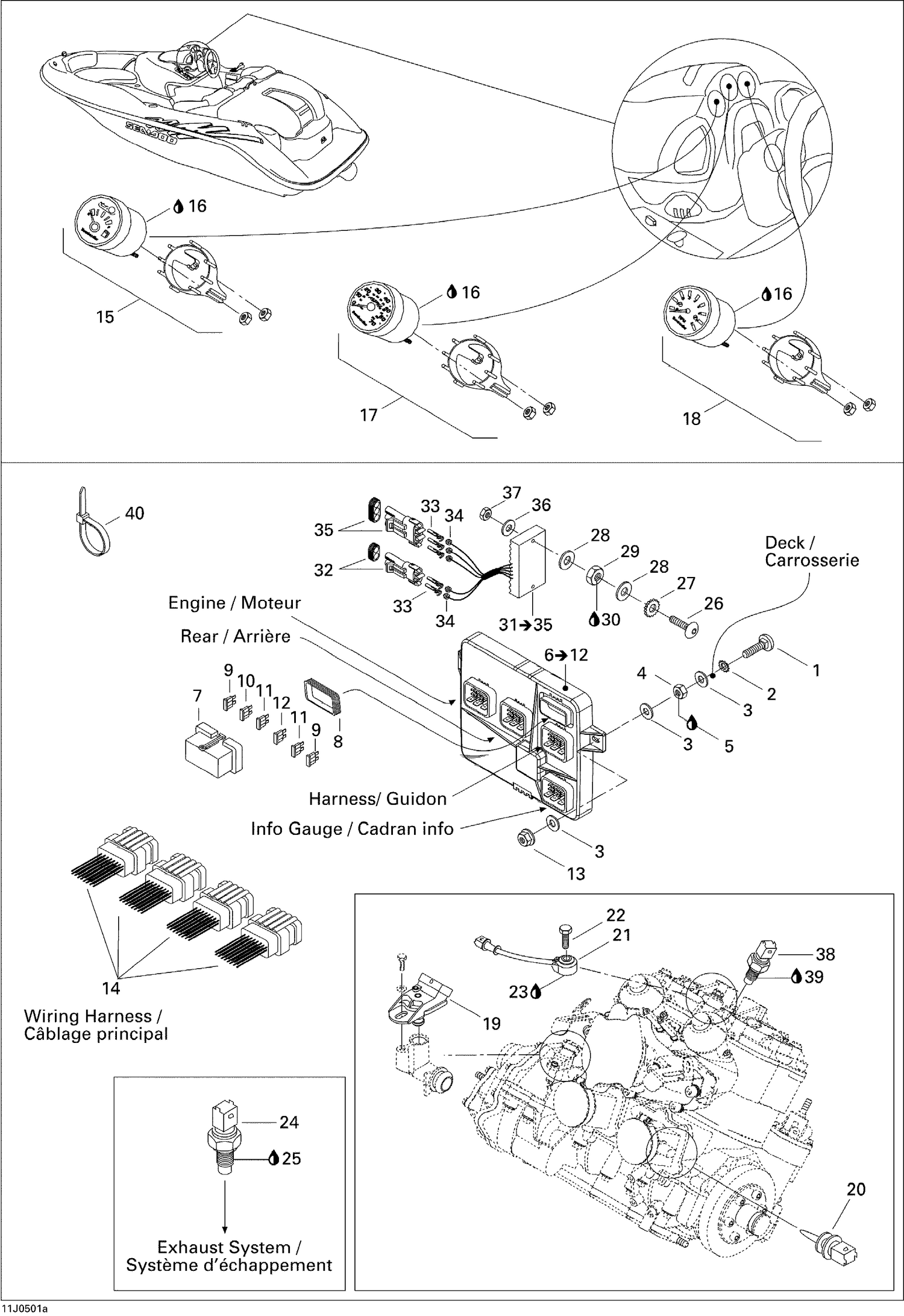

| Ref | Part Number | Description |
|---|
| 1 |
204000130 |
Elevator Bolt |
| 2 |
211200054 |
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership |
| 3 |
234062600 |
Flat Washer M6, Stainless |
| 4 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
| 5 |
293800005 |
Loctite 271, 10 ml |
| 7 |
278002102 |
FUSE COVER - Call your local BRP dealership This part replaces 278001618. |
| 8 |
278001070 |
Cover Seal |
| 9 |
278000343 |
Fuse, 15 Amperes |
| 10 |
278001442 |
FUSE, 2 AMPERES - Call your local BRP dealership |
| 11 |
278001443 |
Fuse, 25 Amperes |
| 12 |
278000704 |
FUSE, 7.5 AMPERES - Call your local BRP dealership |
| 13 |
212000005 |
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership |
| 14 |
204470863 |
Harness Ass'y |
| 15 |
204470963 |
Fuel/oil Gauge |
| 16 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 17 |
204470964 |
Speedometer Gauge |
| 18 |
204470965 |
Tachometer Gauge |
| 19 |
270600040 |
Pressure Sensor |
| 20 |
270600000 |
AIR TEMPERATURE SENSOR - Call your local BRP dealership |
| 21 |
270000484 |
Noise Sensor |
| 22 |
207183060 |
Hex. Screw M8 X 30 |
| 23 |
293800060 |
Loctite 243, 10 ml |
| 24 |
278002895 |
Temperature Sensor This part replaces 278001016. |
| 26 |
204000130 |
Elevator Bolt |
| 27 |
211200054 |
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership |
| 28 |
234062600 |
Flat Washer M6, Stainless |
| 29 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
| 30 |
293800005 |
Loctite 271, 10 ml |
| 32 |
278000220 |
Male Connector, 2 Circuits |
| 33 |
409007300 |
Female Terminal |
| 34 |
278000218 |
Wire Seal |
| 35 |
278000273 |
Male Housing, 3 Circuits |
| 36 |
234061600 |
Stainless Flat Washer M6 |
| 37 |
212000005 |
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership |
| 38 |
278002895 |
Temperature Sensor This part replaces 278001016. |
