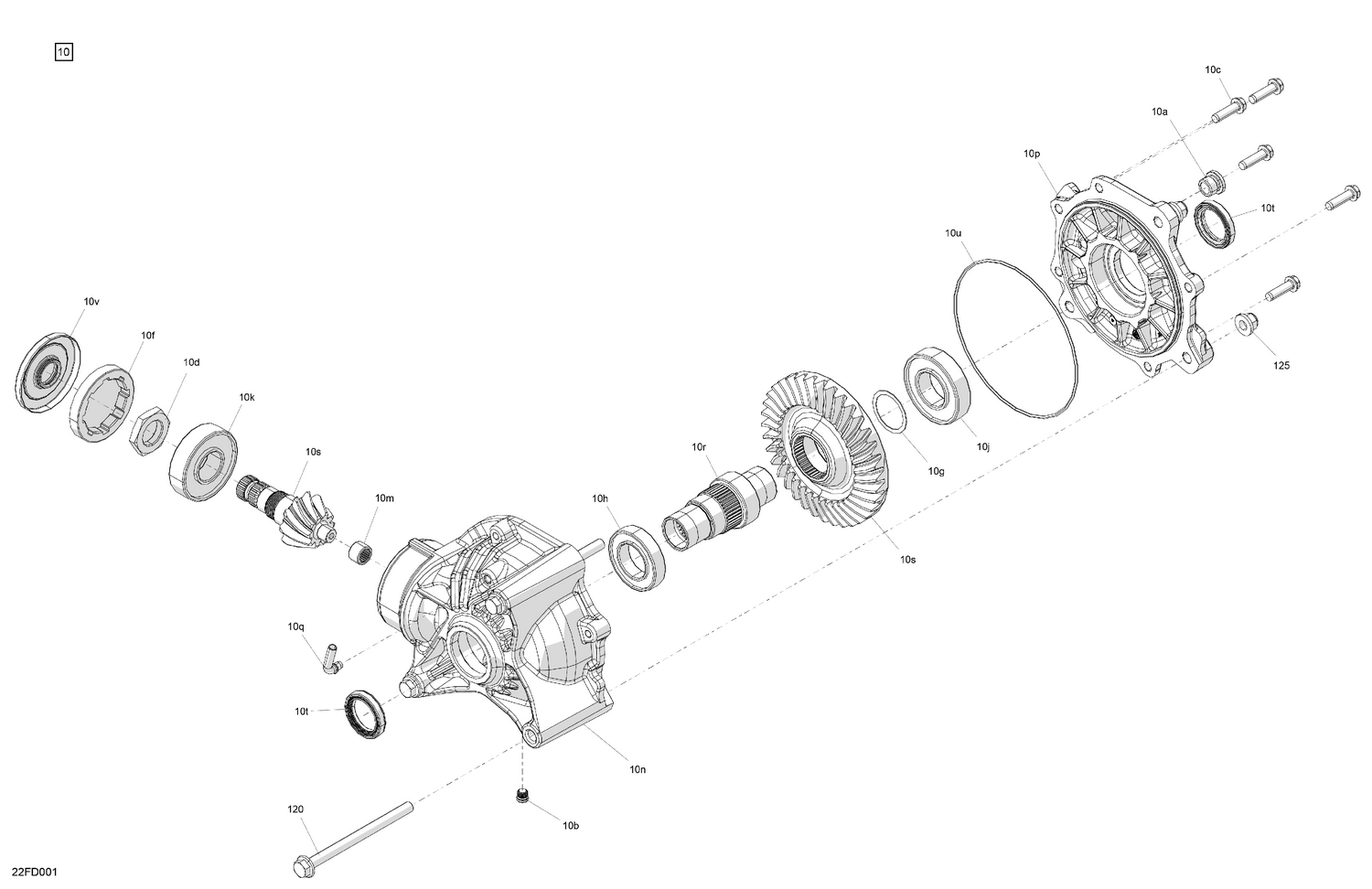

04- Drive - Final Drive Unit
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 705501889 | Fill Level Plug |
| 10b | 715900563 | Fill Level Plug M10 |
| 10c | 705501886 | Bolt |
| 10d | 705503362 | Round Slotted Nut |
| 10f | 705503578 | Nut Slotted Round |
| 10g | 705402846 | Shim |
| 10h | 705402847 | Ball Bearing |
| 10j | 705503365 | Ball Bearing |
| 10k | 705401821 | Ball Bearing |
| 10m | 705402848 | Ball Bearing |
| 10n | 705503577 | Final Drive Housing |
| 10p | 705502866 | Final Drive Cover |
| 10q | 705401935 | Vent Valve |
| 10r | 715500450 | Hub, Output 24 T |
| 10s | 715500451 | Sub Assembly, Bevel Gear Set 10T/36 |
| 10t | 705503366 | Final Drive Gasket |
| 10u | 705503367 | O-Ring Seal |
| 10v | 705401827 | Oil Seal, Triple Lip 25 X 79 X 8 |
| 120 | 250001041 | Hex. Flange Screw M10 X 135 |
