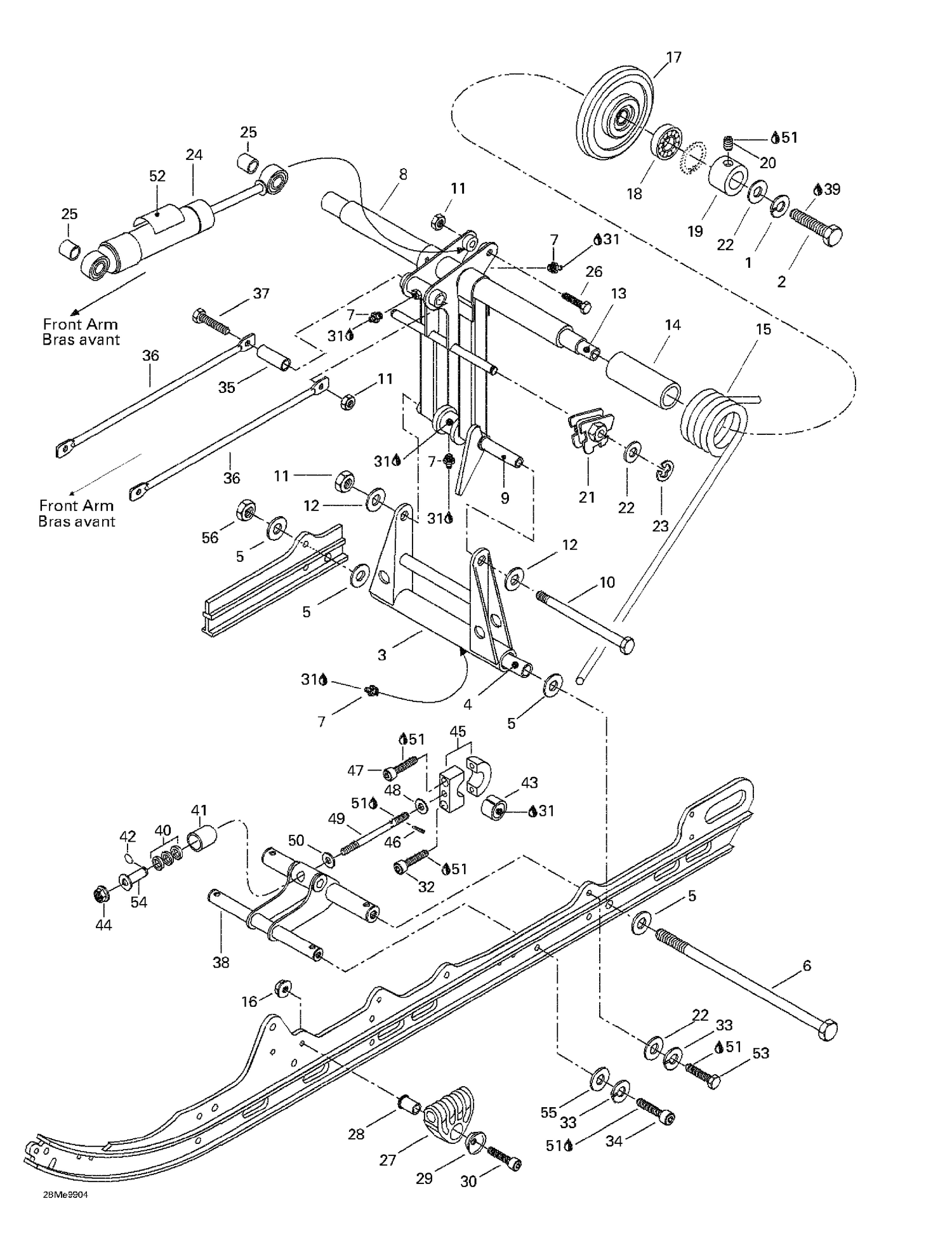

| Ref | Part Number | Description |
|---|
| 1 |
234101601 |
Helicoidal Lock Washer M10 This part replaces 213000003. |
| 2 |
207103544 |
Hex. Screw M10 X 35 This part replaces 222003565. |
| 3 |
503169200 |
Pivot Welded Arm |
| 4 |
503154703 |
Lower Axle Pivot |
| 5 |
224081201 |
FLAT WASHER - Call your local BRP dealership |
| 6 |
503192440 |
Bolt M8 X 248mm This part replaces 732601198. |
| 7 |
408200700 |
Grease Fitting |
| 8 |
503188961 |
Rear Arm |
| 9 |
503144300 |
Upper Axle, Pivot Arm |
| 10 |
732601197 |
Bolt M8, Short |
| 11 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 228581045. |
| 12 |
234081410 |
Flat Washer 8 mm This part replaces 224081171. |
| 13 |
503168700 |
Rear Cross Shaft |
| 14 |
572080700 |
Bushing |
| 15 |
414943500 |
RH SPRING - Call your local BRP dealership |
| 16 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 228781045. |
| 18 |
293350115 |
Ball Bearing This part replaces 405404500. |
| 19 |
503168800 |
Retaining Ring |
| 20 |
206260844 |
Socket Set Screw M6 X 8 This part replaces 222560865. |
| 21 |
572030800 |
LH ADJUST CAM - Call your local BRP dealership |
| 22 |
234001410 |
Flat Washer 10 mm This part replaces 224001211. |
| 24 |
503188915 |
Shock |
| 25 |
414936000 |
Bushing |
| 26 |
207085044 |
Hex. Screw M8 X 50 This part replaces 222085065. |
| 27 |
503189657 |
Spring Support This part replaces 503188933. |
| 28 |
503188934 |
Spring Guide Axle |
| 29 |
503188929 |
CUSHION RETAINER - Call your local BRP dealership |
| 30 |
205084544 |
Socket Head Screw M8 X 45 This part replaces 222984565. |
| 31 |
219700417 |
SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 32 |
205083044 |
Socket Head Screw M8 X 30 This part replaces 222983065. |
| 33 |
234100602 |
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188. |
| 34 |
205003544 |
Socket Screw M10 X 35 This part replaces 222903565. |
| 35 |
503158600 |
Tie Rod Shaft |
| 36 |
503187100 |
Tie Rod |
| 37 |
207087544 |
HEX. SCREW M8 X 75 - Call your local BRP dealership This part replaces 222087565. |
| 38 |
503188969 |
Bracket |
| 39 |
293800060 |
Loctite 243, 10 ml This part replaces 413703000. |
| 40 |
570049600 |
RUBBER STOPPER - Call your local BRP dealership |
| 41 |
503103600 |
Cup |
| 42 |
371910700 |
Circlip |
| 43 |
415027800 |
CUSHION - Call your local BRP dealership |
| 44 |
233201414 |
Hex. Flange Elastic Nut M10 This part replaces 228701045. |
| 46 |
732804011 |
Rolled Pin M3 x 18 |
| 47 |
205083044 |
Socket Head Screw M8 X 30 This part replaces 222983065. |
| 48 |
Not |
Available As Spare Part - Washer |
| 49 |
Not |
Available As Spare Part - Threaded Rod |
| 50 |
503183400 |
WASHER - Call your local BRP dealership |
| 51 |
293800005 |
Loctite 271, 10 ml This part replaces 413707400. |
| 52 |
516000183 |
Shock Decal |
| 53 |
207103044 |
Hex. Screw M10 X 30 This part replaces 222003065. |
| 54 |
503172900 |
Bushing |
| 55 |
503176700 |
Hardened Washer 10 mm |
| 414943600 |
LH |
SPRING - Call your local BRP dealership 414943600 |
| 414943600 |
Ressort |
Carré GA - Appelez votre concessionnaire BRP local 414943600 |
| 572030900 |
Came |
De Réglage Droit - Appelez votre concessionnaire BRP local 572030900 |
| 572030900 |
RH |
ADJUST CAM - Call your local BRP dealership 572030900 |
