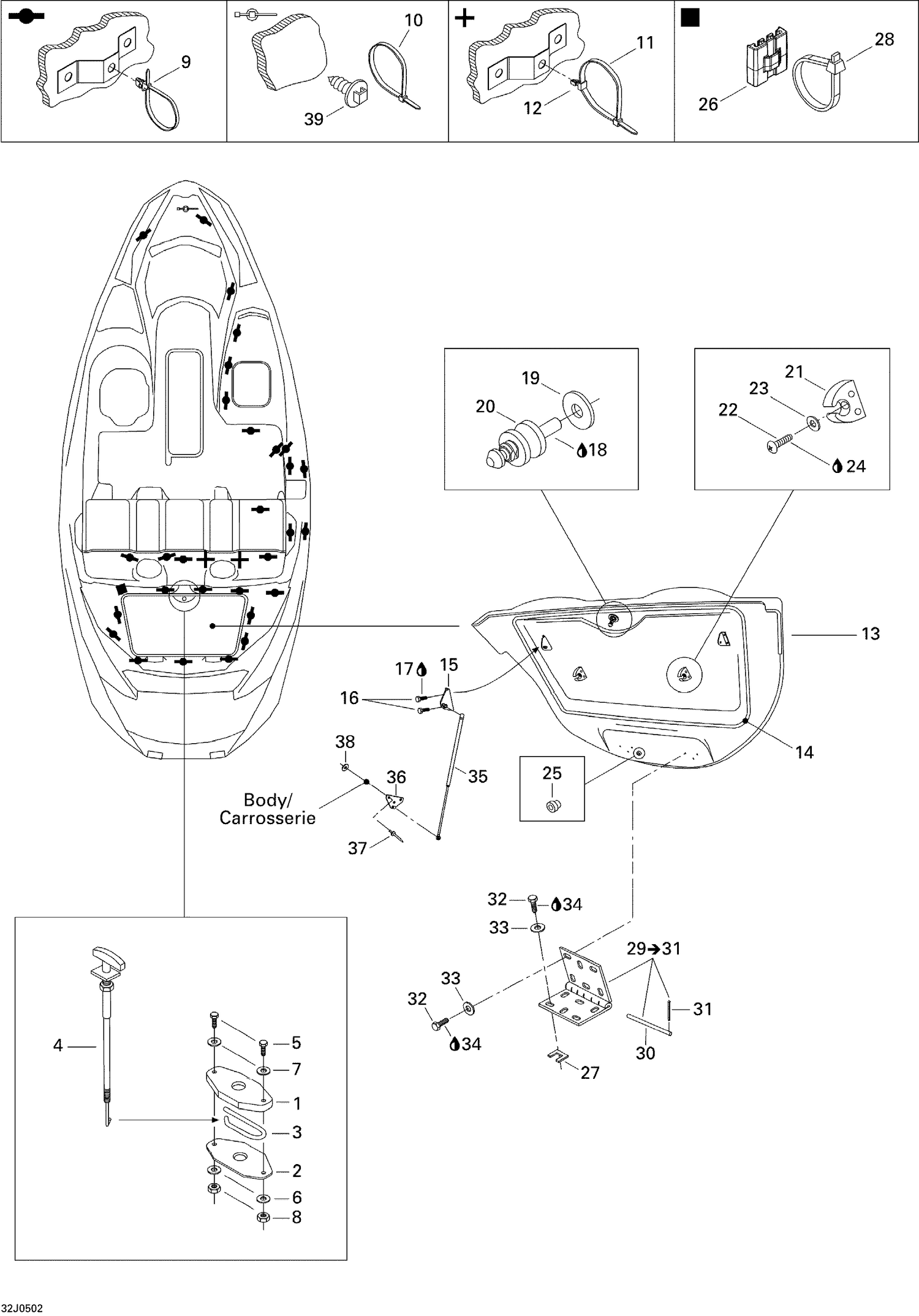

09- Engine Compartment And Accessories
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 204070037 | LATCH BASE - Call your local BRP dealership |
| 2 | 204070036 | LATCH COVER - Call your local BRP dealership |
| 3 | 204070038 | SPRING - Call your local BRP dealership |
| 4 | 204070081 | LATCH COVER CABLE - Call your local BRP dealership |
| 5 | 207163560 | Hex. Screw M6 X 35 |
| 6 | 234062600 | Flat Washer M6, Stainless |
| 7 | 234061600 | Stainless Flat Washer M6 |
| 8 | 232561600 | Hex. Elastic Stop Nut M6 |
| 9 | 204130098 | TIE RAP WITH DART - Call your local BRP dealership |
| 11 | 414115200 | Tie-Rap 180 mm |
| 12 | 204130099 | DART, BLACK - Call your local BRP dealership |
| 13 | 204072067 | Engine Cover |
| 14 | 219704365 | Was 293200017 Neoprene Seal |
| 15 | 204073074 | Shock Bracket This part replaces 204071700. |
| 16 | 207141660 | Hex. Screw M4 X 16 |
| 17 | 293800060 | Loctite 243, 10 ml |
| 18 | 293800060 | Loctite 243, 10 ml |
| 19 | 291000628 | RUBBER WASHER - Call your local BRP dealership |
| 20 | 291001420 | Latch Stud |
| 21 | 291000642 | Pole Support |
| 22 | 208642560 | PHILLIPS SCREW M4 X 25 - Call your local BRP dealership |
| 23 | 234040600 | Flat Washer 4 mm |
| 24 | 293800060 | Loctite 243, 10 ml |
| 25 | 293720017 | GROMMET - Call your local BRP dealership |
| 26 | 293750109 | Anchorage Tie Wrap This part replaces 293750025. |
| 27 | 204070047 | SPACER 3.2 MM - Call your local BRP dealership |
| 28 | 293750002 | Tie Wrap 142 mm |
| 30 | 204070204 | HINGE ROD - Call your local BRP dealership |
| 31 | 204070205 | Cotter Pin M2.5 X 12 |
| 32 | 207162560 | Hex. Screw M6 X 25 |
| 33 | 234061600 | Stainless Flat Washer M6 |
| 34 | 293800060 | Loctite 243, 10 ml |
| 35 | 204071920 | GAS SHOCK - Call your local BRP dealership |
| 36 | 204071673 | Shock Bracket |
| 37 | 293150201 | RIVET_POP 3/16 - Call your local BRP dealership This part replaces 204130014. |
| 38 | 234051600 | Flat Washer M5, Stainless |
