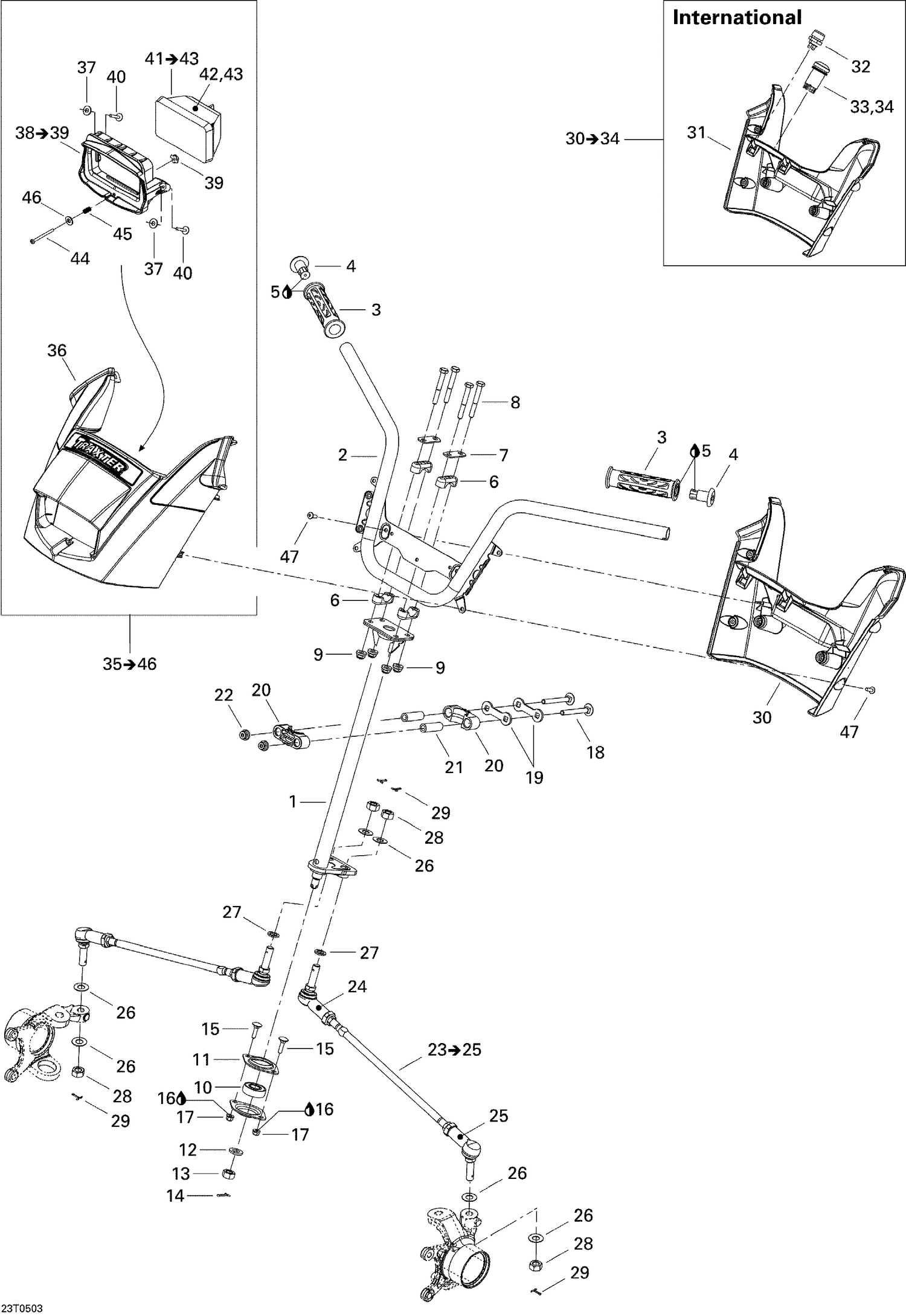

| Ref | Part Number | Description |
|---|
| 1 |
709400305 |
Main Tube, Black |
| 2 |
709400300 |
HANDLE BAR - Call your local BRP dealership |
| 3 |
709400493 |
Handle Grip This part replaces 709400157. |
| 4 |
709400189 |
END-PIECE - Call your local BRP dealership |
| 5 |
293800100 |
Loctite 406, 7 Oz |
| 6 |
709400919 |
Steering Support This part replaces 506151622. |
| 7 |
709400509 |
Stiffner This part replaces 506151196. |
| 8 |
207086046 |
Hex. Screw M8 X 60 |
| 9 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 10 |
709400439 |
Ball Bearing This part replaces 709400224. |
| 11 |
709400152 |
FLANGE, BEARING - Call your local BRP dealership |
| 12 |
234021410 |
Flat Washer 12 mm |
| 13 |
250100099 |
Nut M12 This part replaces 250100045. |
| 14 |
211400017 |
Cotter Pin |
| 15 |
207762544 |
Carriage Bolt M6 X 25 |
| 16 |
293800060 |
Loctite 243, 10 ml |
| 17 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 18 |
207787044 |
Carriage Bolt M8 X 70 |
| 19 |
506150600 |
Stopper Plate |
| 20 |
709400034 |
HALF-HOUSING - Call your local BRP dealership |
| 21 |
506150500 |
Housing Bushing |
| 22 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 24 |
709402302 |
RH Ball Joint This part replaces 709400241. |
| 25 |
709402303 |
LH Ball Joint This part replaces 709400242. |
| 26 |
706200281 |
Hardened Washer |
| 27 |
503189276 |
Washer |
| 28 |
250100099 |
Nut M12 This part replaces 250100045. |
| 29 |
211400013 |
Cotter Pin |
| 30 |
709400252 |
REAR STEERING COVER - Call your local BRP dealership |
| 31 |
709400252 |
REAR STEERING COVER - Call your local BRP dealership |
| 32 |
415130372 |
Push Button This part replaces 415101200. |
| 33 |
710000367 |
EMERGENCY SWITCH - Call your local BRP dealership |
| 34 |
710000661 |
EMERGENCY SWITCH LIGHT BULB - Call your local BRP dealership |
| 36 |
Not |
Available As Spare Part - Front Steering Cover (Full Moon) |
| 37 |
250200025 |
Washer M5 |
| 39 |
250100030 |
T-NUT, M4 - Call your local BRP dealership |
| 40 |
250000101 |
Plastite Screw Type K-40, M4 X 25 |
| 42 |
705000284 |
LAMP HOUSING - Call your local BRP dealership |
| 43 |
710000762 |
BULB - Call your local BRP dealership |
| 44 |
Not |
Available As Spare Part - Pan Head Screw M4 X 50 |
| 45 |
517168600 |
Spring |
| 46 |
250200025 |
Washer M5 |
