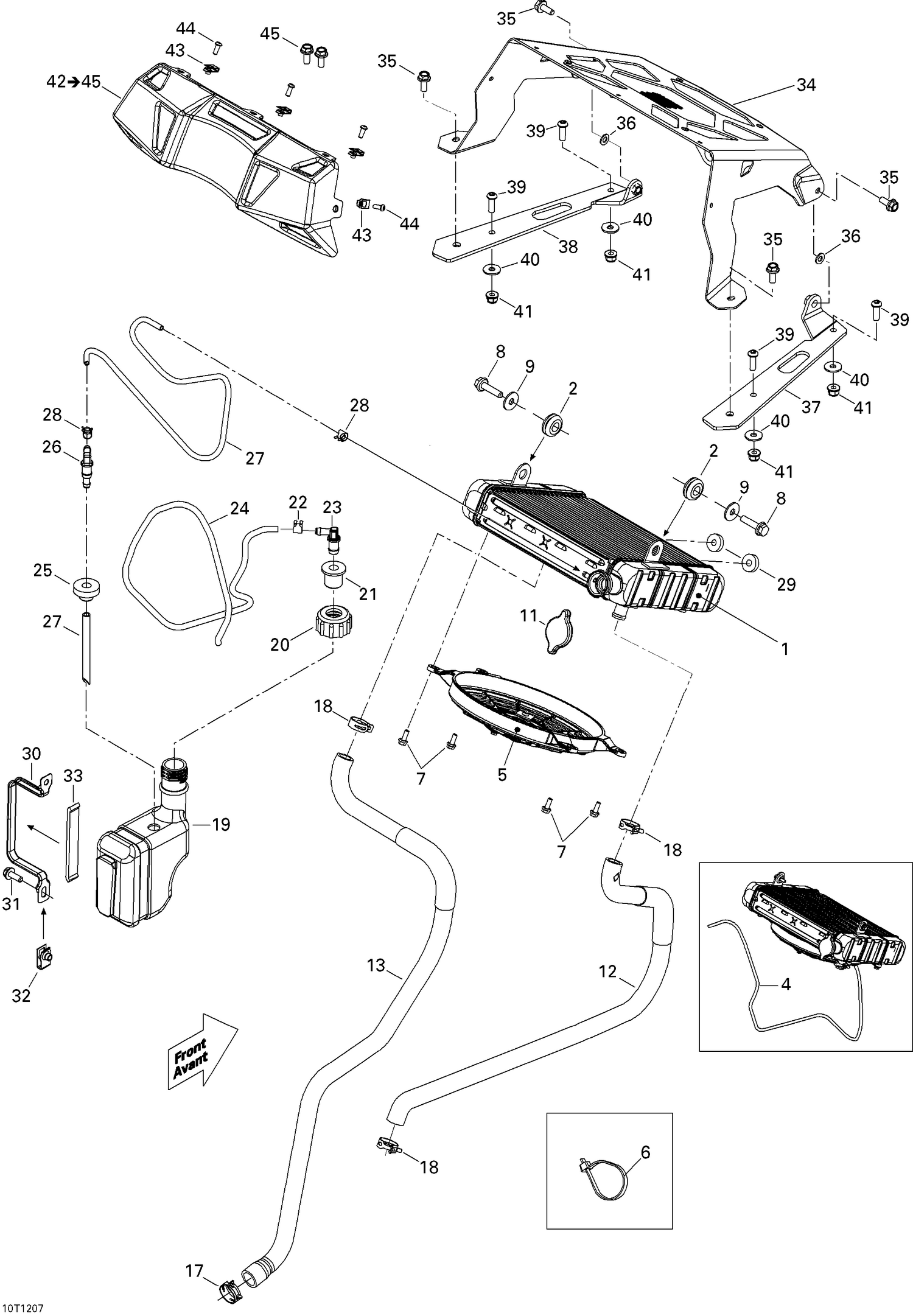

| Ref | Part Number | Description |
|---|
| 1 |
709200410 |
RADIATOR - Call your local BRP dealership |
| 2 |
293720062 |
Grommet |
| 4 |
219704429 |
HOSE 3.5 MM 1000MM LONG - Call your local BRP dealership |
| 5 |
709200332 |
FAN - Call your local BRP dealership |
| 6 |
293750008 |
Tie Wrap 368 mm |
| 6 |
414115200 |
Tie-Rap 180 mm |
| 7 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 8 |
207562544 |
Hex. Flange Screw M6 X 25 |
| 9 |
250200099 |
FLAT WASHER - Call your local BRP dealership |
| 11 |
709200207 |
Radiator Pressure Cap |
| 12 |
709200334 |
RADIATOR INLET HOSE - Call your local BRP dealership |
| 13 |
709200335 |
OUTLET HOSE - Call your local BRP dealership |
| 17 |
293650108 |
Norma Spring Clamp |
| 18 |
293650109 |
Norma Spring Clamp |
| 19 |
709200099 |
COOLANT TANK - Call your local BRP dealership |
| 20 |
709200586 |
Cap This part replaces 548872589. |
| 21 |
293830136 |
Grommet |
| 22 |
414554800 |
Spring Clamp |
| 23 |
414580700 |
Male Connector |
| 24 |
219704410 |
Polyurethane Hose 10000Mm Long |
| 25 |
709200285 |
Grommet |
| 26 |
414580600 |
Elbow Male Connector |
| 27 |
219704414 |
Was 415110000 Polyurethane Hose 5.2 mm |
| 28 |
414554800 |
Spring Clamp |
| 29 |
709200285 |
Grommet |
| 30 |
709200080 |
TANK ANCHOR - Call your local BRP dealership |
| 31 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 32 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
| 33 |
219704476 |
Gasket, Neoprene 2000Mm Long This part replaces 219704372. |
| 34 |
709200349 |
RADIATOR SUPPORT - Call your local BRP dealership |
| 35 |
207582054 |
Hex Screw Washer Head M8 X 20 This part replaces 207582084. |
| 36 |
234081100 |
Flat Washer 8 mm, Nylon |
| 37 |
709200353 |
R.H. SUPPORT - Call your local BRP dealership |
| 38 |
709200354 |
L.H. SUPPORT - Call your local BRP dealership |
| 39 |
205483046 |
SOCKET HEAD SCREW M8 X 30 - Call your local BRP dealership |
| 40 |
211200041 |
Washer |
| 41 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 43 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
| 44 |
250000172 |
SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership |
