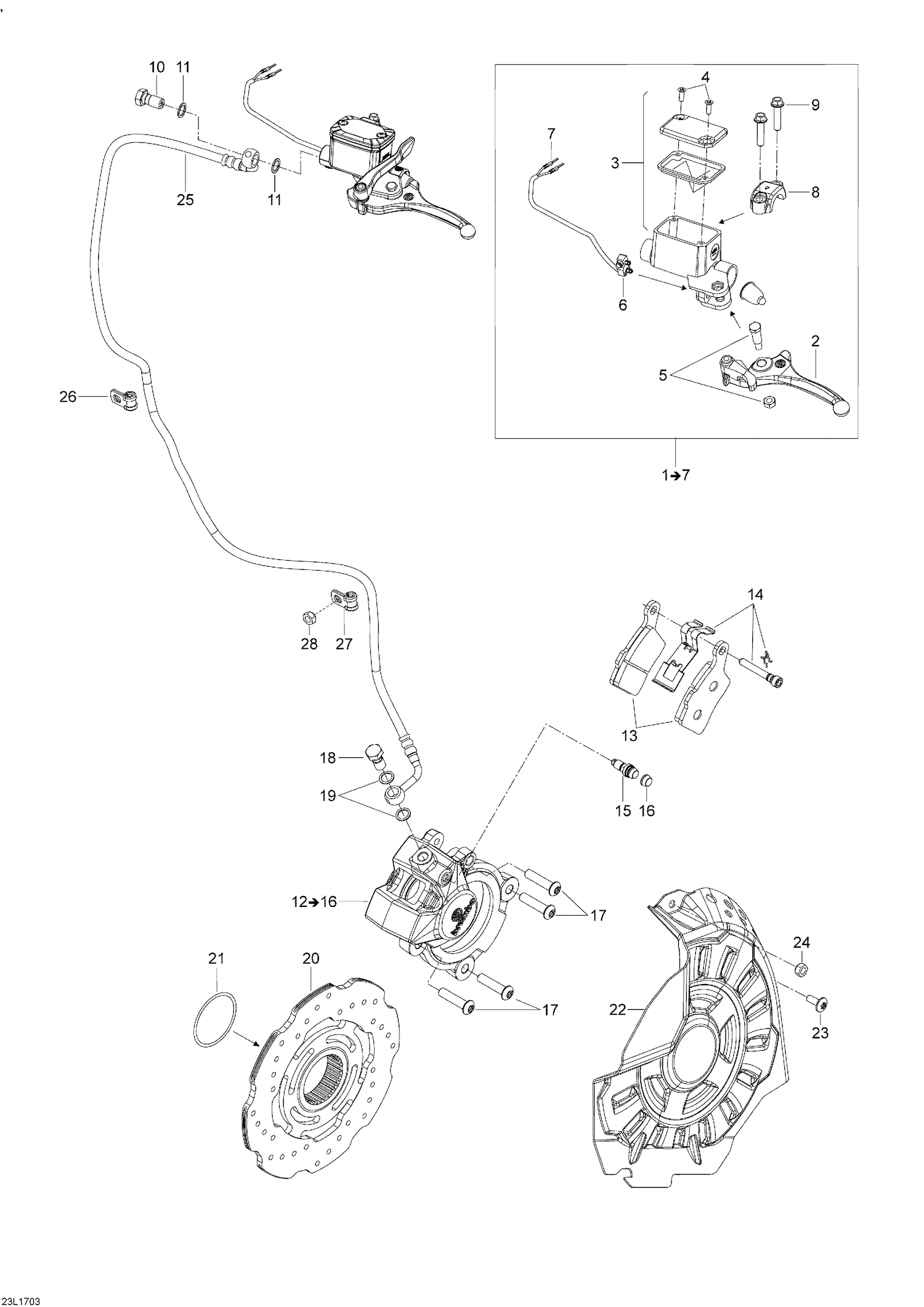

06- Hydraulic Brakes
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 415129356 | Screw M4 x 20 |
| 5 | 415030000 | Pin Ass'y |
| 7 | 515175232 | Male Terminal |
| 8 | 719000049 | Clamp Kit |
| 9 | 250000447 | Hex Flanged Screw M6 X 25 |
| 10 | 507032551 | Banjo Bolt |
| 11 | 705601628 | Copper Washer This part replaces 705600310. |
| 14 | 507032722 | Brake Spring Kit This part replaces 507032474. |
| 15 | 507032475 | Bleeder |
| 16 | Not | Available As Spare Part - Boot |
| 17 | 250000764 | Torx Screw M8 x 35, Scotch Grip |
| 18 | 507032551 | Banjo Bolt |
| 19 | 705601628 | Copper Washer This part replaces 705600310. |
| 21 | 293300134 | O Ring |
| 22 | 507032546 | Black Disk Protector |
| 23 | 250000717 | Torx Head Screw M6 X 16 |
| 24 | 233261494 | Elastic Flange Nut M6 |
| 25 | 507032540 | Hose |
| 26 | 293650256 | Clamp This part replaces 715900250. |
| 27 | 503193393 | CLAMP - Call your local BRP dealership |
