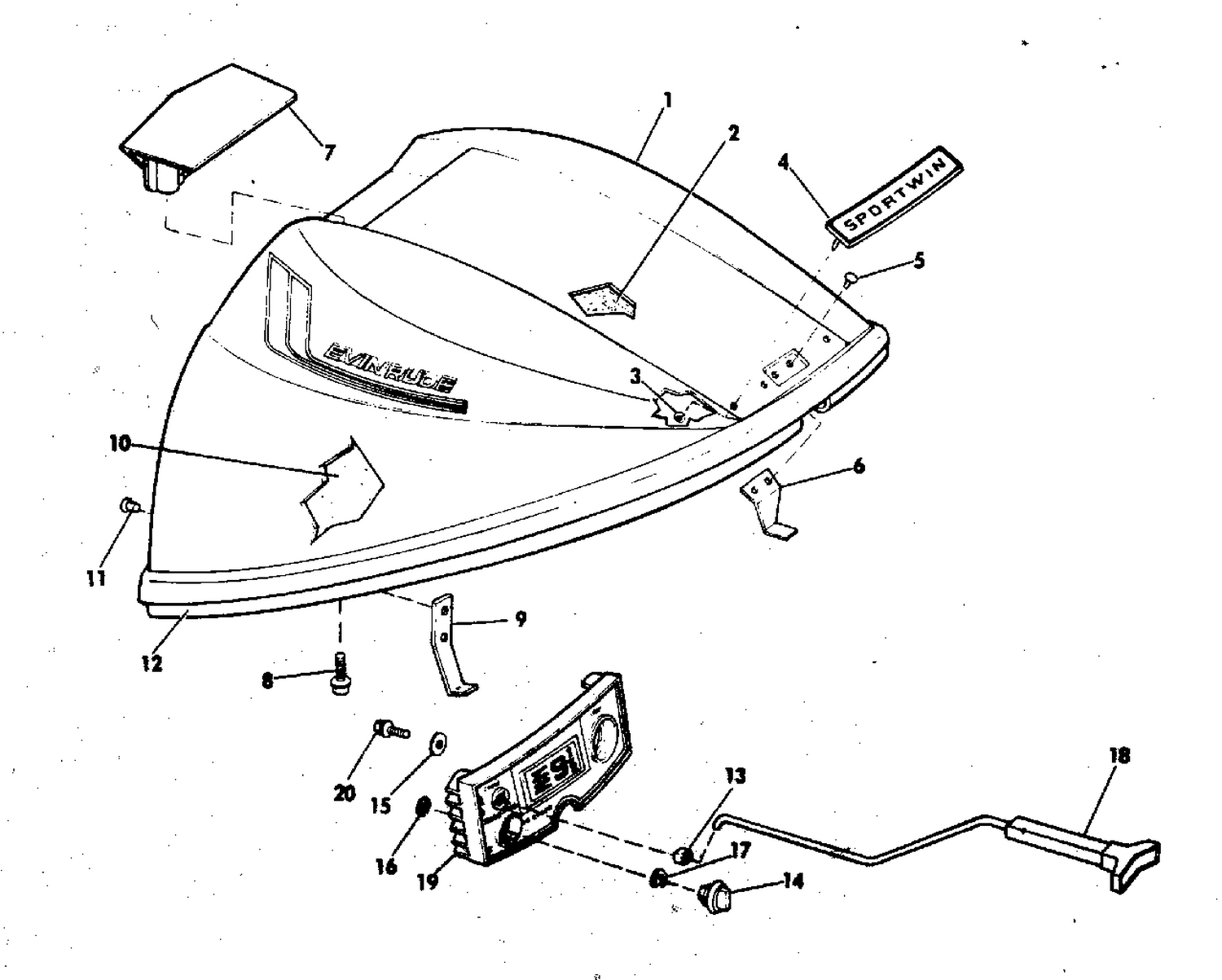

MOTOR COVER
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0279395 | MOTOR COVER ASSEMBLY |
| 2 | 0205213 | SOUND BLANKET, Top |
| 4 | 0206569 | APPLIQUE, Front |
| 6 | 0205233 | HOOK, Front |
| 7 | 0278755 | TILE HANDLE & SCREW ASSY |
| 8 | 0312299 | VIS, serre-câble |
| 9 | 0205702 | HOOK, Rear upper |
| 10 | 0205214 | SOUND BLANKET, Side |
| 11 | 0315705 | RIVERT,Rear hook |
| 12 | 0206097 | SEAL, Motor cover |
| 13 | 0320731 | BUSHING, Choke knob This part replaces 0204450. |
| 14 | 0206298 | ADJUSTING KNOB |
| 17 | 0312382 | E-RING |
| 18 | 0278788 | KNOB & ROD,Choke |
| 19 | 0315792 | CONTROL PANEL |
| 20 | 0312299 | VIS, serre-câble |
| 0279476 | 0279476 | DECAL SET |
