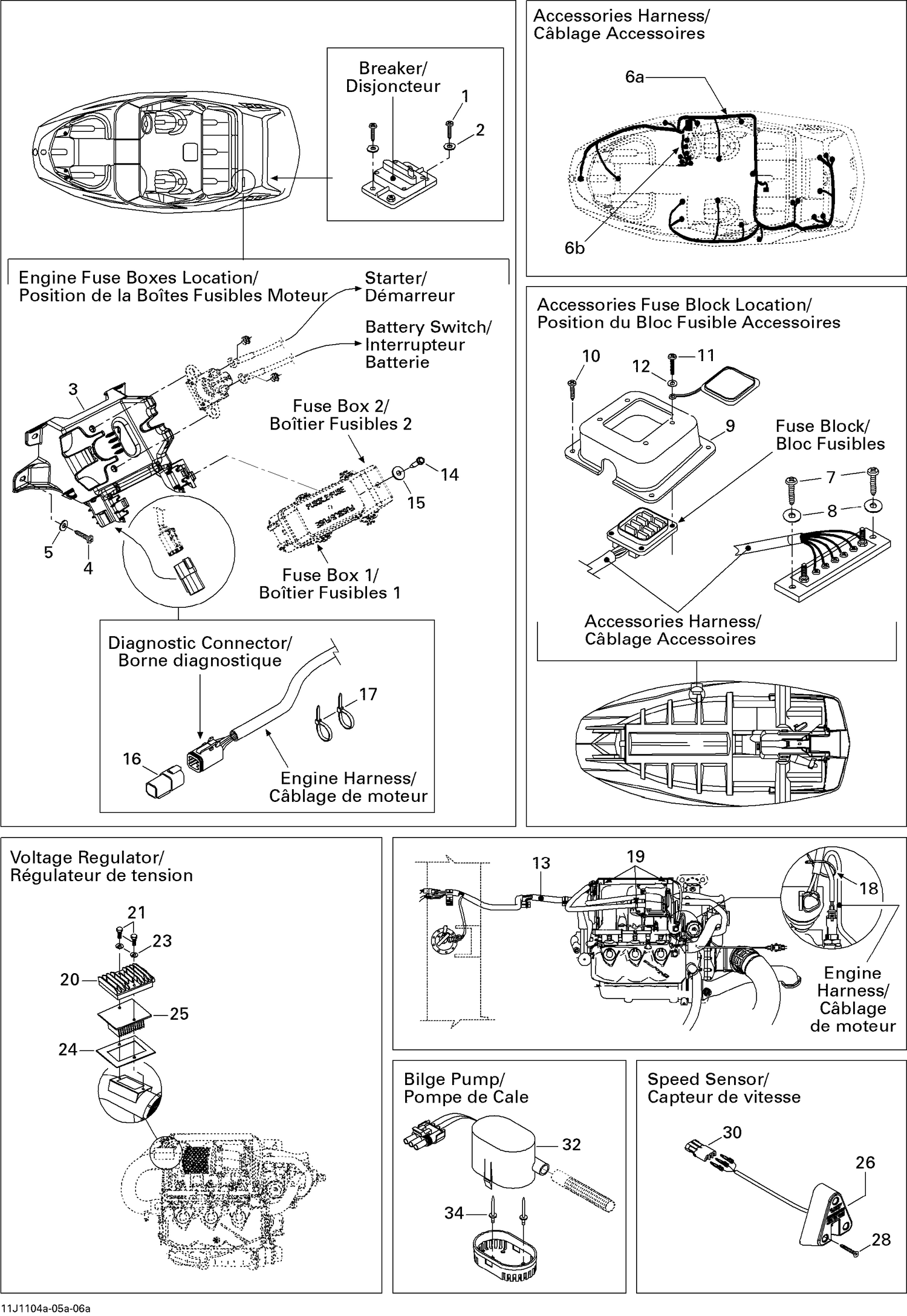

| Ref | Part Number | Description |
|---|
| 1 |
209641960 |
PHILLIPS TAPPING SCREW M4.2 X 19 - Call your local BRP dealership |
| 2 |
234041600 |
Flat Washer 4 mm, Stainless |
| 3 |
278002699 |
MODULE SUPPORT - Call your local BRP dealership This part replaces 278002157. |
| 4 |
204100203 |
TAPPING PHILLIPS SCREW #12 X 3/4 - Call your local BRP dealership |
| 5 |
234062600 |
Flat Washer M6, Stainless |
| 6a |
278002526 |
ACCESSORIES WIRING HANESS - Call your local BRP dealership |
| 6b |
278002540 |
HELM WIRING HANESS - Call your local BRP dealership |
| 7 |
209641360 |
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership |
| 8 |
234041600 |
Flat Washer 4 mm, Stainless |
| 9 |
204471274 |
FUSE BLOCK SUPPORT - Call your local BRP dealership |
| 10 |
209641360 |
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership |
| 11 |
204100220 |
Pan Head Screw 10-32 X 1/2" |
| 12 |
234052600 |
Flat Washer 5 mm, Stainless |
| 13 |
204471289 |
ENGINE WIRING HARNESS - Call your local BRP dealership |
| 14 |
211000023 |
Hex. Screw 10-14 X 7/8” |
| 15 |
234052600 |
Flat Washer 5 mm, Stainless |
| 16 |
278002704 |
Diagnostic Connector This part replaces 278002148. |
| 17 |
414115200 |
Tie-Rap 180 mm |
| 18 |
293750002 |
Tie Wrap 142 mm |
| 19 |
414115200 |
Tie-Rap 180 mm |
| 20 |
710001103 |
Voltage Regulator |
| 21 |
204100226 |
HEX. SCREW 1/4-20 X 1 - Call your local BRP dealership |
| 23 |
211200025 |
Lock Washer 1/4” |
| 24 |
204471293 |
SEAL - Call your local BRP dealership |
| 25 |
204471296 |
RECTIFIER HEAT SINK - Call your local BRP dealership |
| 26 |
278001993 |
Speed Sensor |
| 28 |
211000021 |
PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership |
| 30 |
278000281 |
Female Terminal Housing, 3 Circuits |
| 32 |
204471431 |
Bilge Pump |
