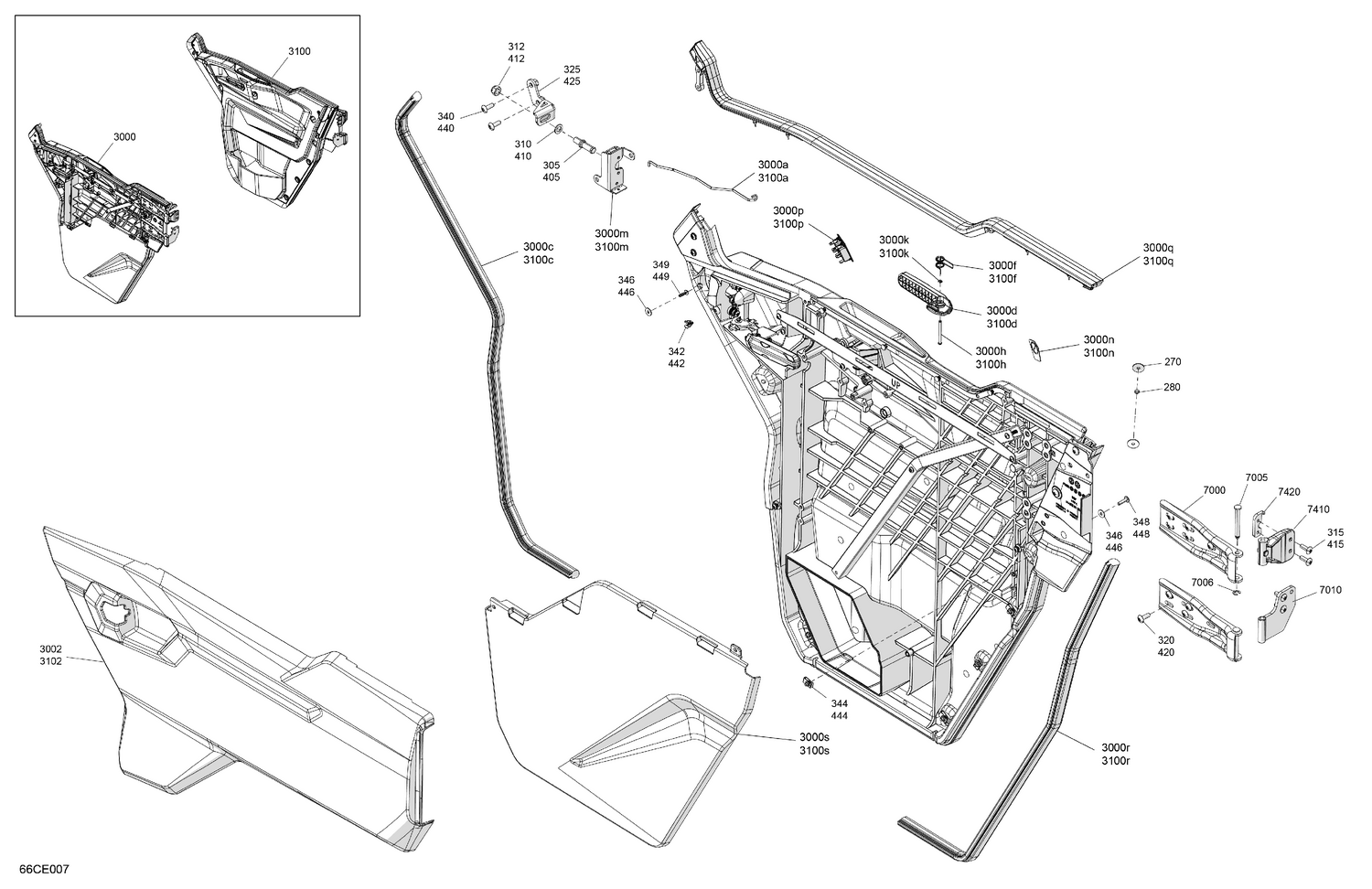

07- Enclosure Cab - Front Doors
Parts (57)
| Ref | Part Number | Description |
|---|---|---|
| 270 | 250200029 | Washer M6 |
| 280 | 708300737 | Bushing |
| 305 | 705800850 | Rod Latch |
| 310 | 250200005 | Conical Spring Washer M12 |
| 312 | 232521416 | Elastic Stop Nut M12 |
| 315 | 250000874 | Torx Truss M8 X 25 |
| 320 | 250000874 | Torx Truss M8 X 25 |
| 325 | 705801086 | LH Front Striker Support |
| 340 | 250000874 | Torx Truss M8 X 25 |
| 342 | 517306478 | Clip |
| 344 | 250100198 | Panel Nut M6 X 1.0 |
| 346 | 234062670 | Stainless Steel Flat Washer |
| 348 | 250000807 | Torx Truss Screw M6 X 25 |
| 349 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 405 | 705800850 | Rod Latch |
| 410 | 250200005 | Conical Spring Washer M12 |
| 412 | 232521416 | Elastic Stop Nut M12 |
| 415 | 250000874 | Torx Truss M8 X 25 |
| 420 | 250000874 | Torx Truss M8 X 25 |
| 425 | 705801097 | RH Front Striker Support |
| 440 | 250000874 | Torx Truss M8 X 25 |
| 442 | 517306478 | Clip |
| 444 | 250100198 | Panel Nut M6 X 1.0 |
| 446 | 234062670 | Stainless Steel Flat Washer |
| 448 | 250000807 | Torx Truss Screw M6 X 25 |
| 449 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 3000a | 705801452 | Guide Pin |
| 3000c | 705801382 | Gasket |
| 3000d | 705017152 | Door Handle |
| 3000f | 705013062 | Handle Spring |
| 3000h | 705801393 | Guide Pin |
| 3000k | 705602261 | External Retaining Ring |
| 3000m | 705801464 | LH Front Door Latch |
| 3000n | 704909996 | LH Door Pictogram Label |
| 3000p | 710007173 | Plug Carling |
| 3000q | 705800913 | LH Upper Door Trim |
| 3000r | 705801384 | LH Interior Door Panel |
| 3000s | 705800716 | LH Lower Door Panel |
| 3002 | 705801408 | Hyper Silver, LH Upper Door Panel |
| 3100a | 705801453 | Guide Pin |
| 3100c | 705801382 | Gasket |
| 3100d | 705017152 | Door Handle |
| 3100f | 705013062 | Handle Spring |
| 3100h | 705801393 | Guide Pin |
| 3100k | 705602261 | External Retaining Ring |
| 3100m | 705801465 | RH Front Door Latch |
| 3100n | 704909998 | RH Door Pictogram Label |
| 3100p | 710007173 | Plug Carling |
| 3100q | 705800914 | RH Upper Door Trim |
| 3100r | 705801386 | RH Interior Door Panel |
| 3100s | 705800717 | RH Lower Door Panel |
| 3102 | 705801409 | Hyper Silver, RH Upper Door Panel |
| 7000 | 705800751 | Door Hinge |
| 7005 | 705800781 | Hinge Pin |
| 7006 | 293370125 | Retaining Ring |
| 7010 | 705801025 | Lower Hinge |
| 7410 | 705800802 | Upper Door Hinge |
