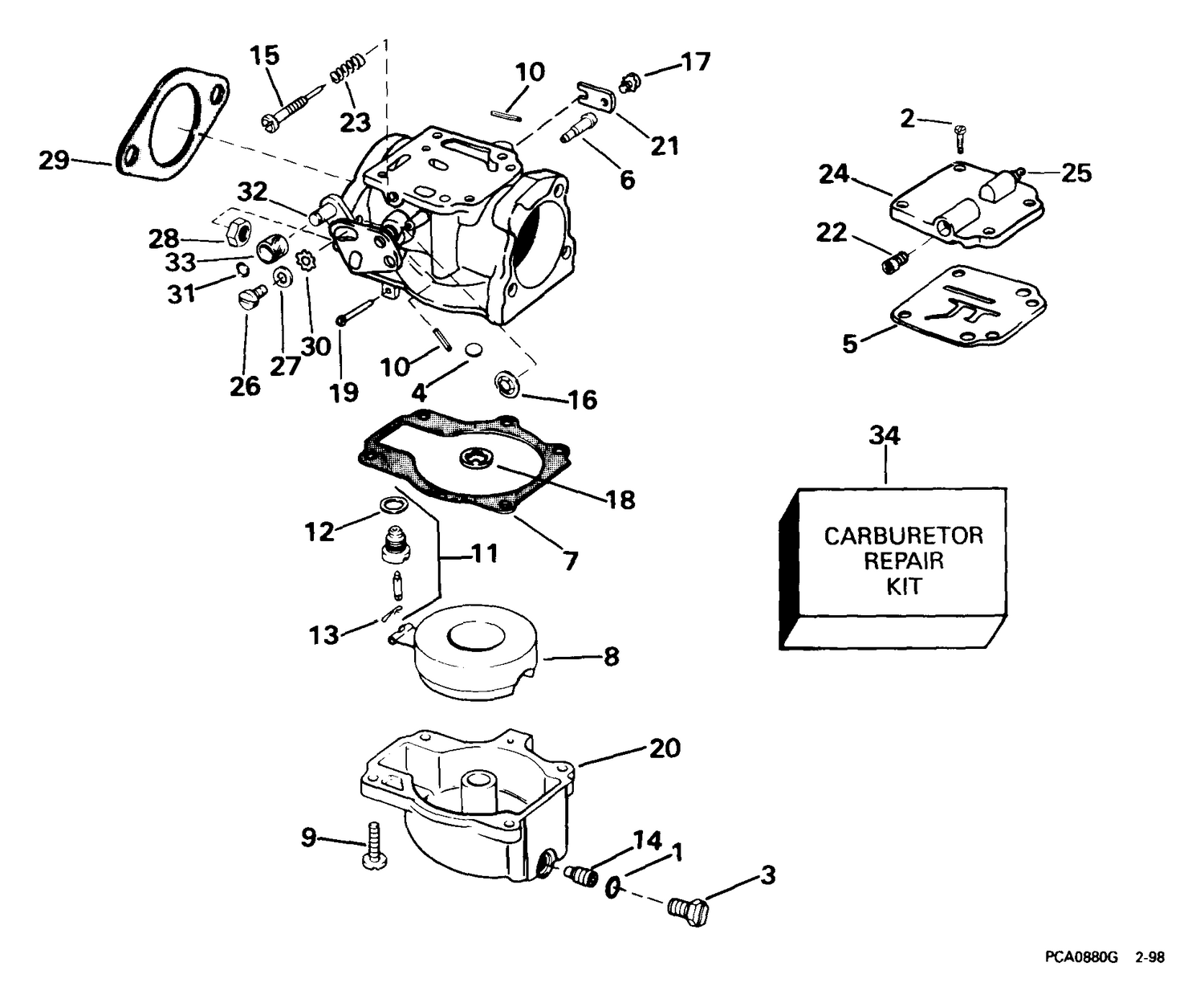

CARBURETOR

CARBURETOR

Parts (8)

RefPart NumberDescription
13 0336842 CLIP, SPRING
26 0306014 VIS, ancrage
28 0316355 BUT, Carburetor mounting
29 0325092 GASKET
31 0324678 JOINT TORIQUE Galet de came de papillon
32 0432638 LEVER & PIN
33 0432639 GALET, contre-came
0439457 0439457 CARBURETOR ASSEMBLY
