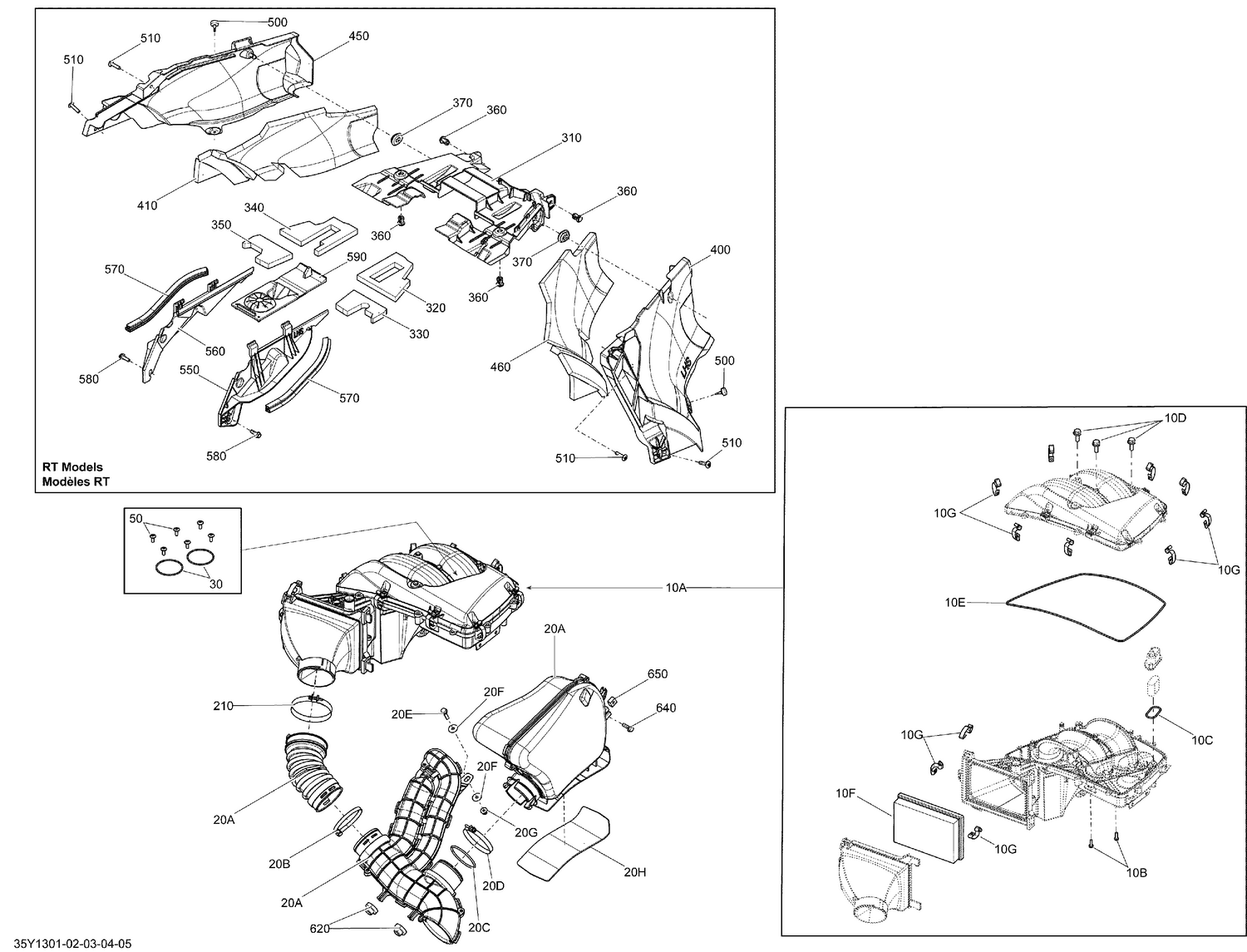

02- Air Intake
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 10B | 243141680 | Hex. Screw M4.8 X 1.8 |
| 10C | 707800491 | GASKET - Call your local BRP dealership This part replaces 707800462. |
| 10D | 243141680 | Hex. Screw M4.8 X 1.8 |
| 10E | 707800491 | GASKET - Call your local BRP dealership |
| 10F | 707800306 | Air Filter |
| 10G | 707800342 | Cover Retainer |
| 20B | 509000165 | Tie Rap |
| 20C | 293300124 | O-Ring |
| 20D | 508000346 | Gemi Clamp |
| 20E | 207662544 | Hex. Flange Screw M6 X 25 |
| 20F | 224060201 | Flat Washer |
| 20G | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 20H | 707800464 | HEAT SHIELD FOIL - Call your local BRP dealership |
| 30 | 707800198 | O RING - Call your local BRP dealership |
| 50 | 250000223 | Torx Screw M6 X 16 |
| 210 | 293650152 | Gemi Clamp |
| 620 | 707800347 | Grommet |
| 640 | 207662044 | Hex. Flange Screw M6 X 20 |
