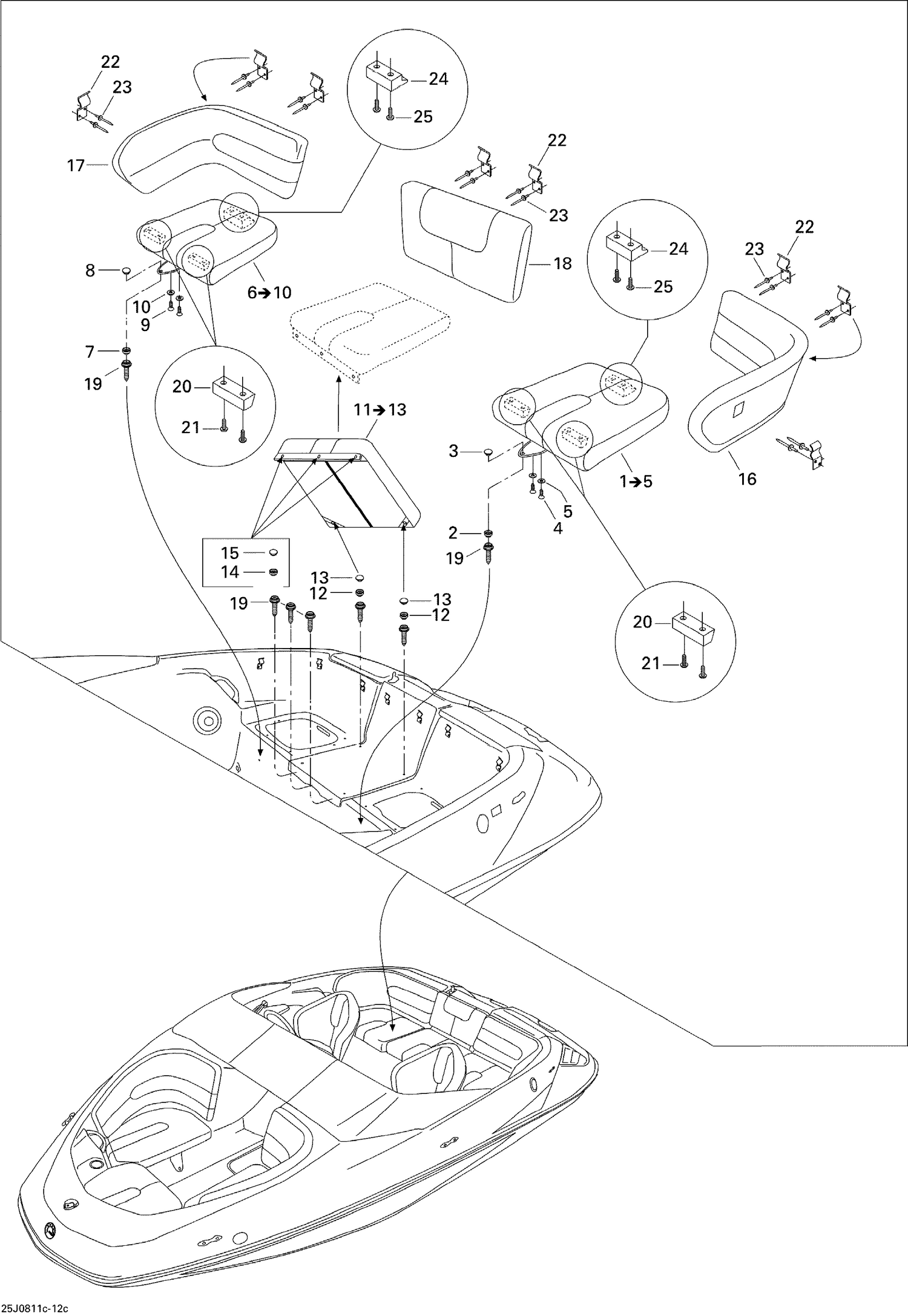

| Ref | Part Number | Description |
|---|
| 2 |
204000083 |
SNAP BASE - Call your local BRP dealership |
| 3 |
204611609 |
SNAP COVER - Call your local BRP dealership |
| 4 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 5 |
211200019 |
FLAT WASHER - Call your local BRP dealership |
| 7 |
204000083 |
SNAP BASE - Call your local BRP dealership |
| 8 |
204611609 |
SNAP COVER - Call your local BRP dealership |
| 9 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 10 |
211200019 |
FLAT WASHER - Call your local BRP dealership |
| 12 |
204000083 |
SNAP BASE - Call your local BRP dealership |
| 13 |
204000085 |
SNAP COVER - Call your local BRP dealership |
| 14 |
204000083 |
SNAP BASE - Call your local BRP dealership |
| 15 |
204611609 |
SNAP COVER - Call your local BRP dealership |
| 16 |
204614044 |
REAR BACKREST, PORT SIDE - Call your local BRP dealership |
| 17 |
204614048 |
REAR BACKREST, STARBOARD - Call your local BRP dealership |
| 18 |
204614046 |
Rear Backrest, Center |
| 19 |
202000159 |
SCREW-STUD TAPP. 3/8 SS - Call your local BRP dealership |
| 20 |
204611805 |
LATCH - Call your local BRP dealership |
| 21 |
204100081 |
SCREW #8 X 1-1/4? - Call your local BRP dealership |
| 22 |
204613998 |
SEAT SUPPORT - Call your local BRP dealership |
| 23 |
293150043 |
Pop Rivet 3/16" |
| 24 |
204611940 |
SEAT LATCH - Call your local BRP dealership |
