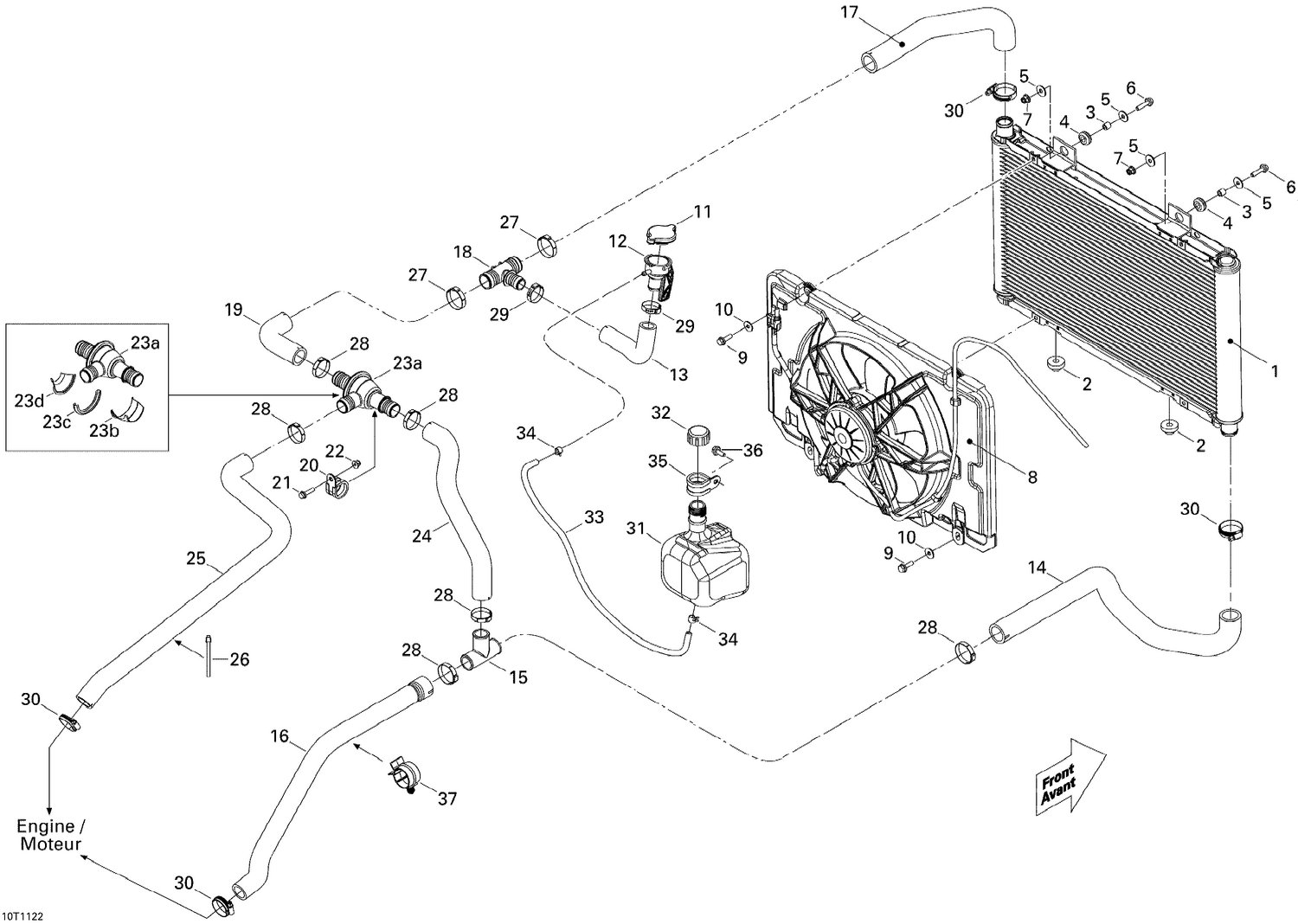

01- Cooling System, Until Sept 1st 2010
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 709200395 | Radiator This part replaces 709200252. |
| 2 | 709200285 | Grommet |
| 3 | 293900105 | Bushing This part replaces 293900045. |
| 4 | 709000582 | Grommet This part replaces 293720053. |
| 5 | 250200082 | Flat Washer |
| 6 | 207662534 | Hex. Flange Screw M6 X 25 |
| 7 | 233261434 | Flange Elastic Nut M6 |
| 8 | 709200566 | Fan Ass'y This part replaces 709200373. |
| 9 | 207662044 | Hex. Flange Screw M6 X 20 |
| 10 | 234062410 | Flat Washer 6 mm |
| 11 | 709200207 | Radiator Pressure Cap |
| 12 | 709200179 | Filler Neck |
| 13 | 709200264 | Filler Neck Hose |
| 14 | 709200263 | RADIATOR INLET HOSE - Call your local BRP dealership |
| 15 | 509000219 | T-Fitting |
| 16 | 709200356 | PUMP HOSE - Call your local BRP dealership |
| 17 | 709200265 | Radiator Outlet Hose |
| 18 | 509000372 | T-Fitting |
| 19 | 709200290 | INTERMEDIATE HOSE - Call your local BRP dealership |
| 20 | 293650218 | Hose Retainer |
| 21 | 207662534 | Hex. Flange Screw M6 X 25 |
| 22 | 233261434 | Flange Elastic Nut M6 |
| 23a | 709200406 | Thermostat This part replaces 709200383. |
| 23b | 709200385 | REFLECTOR - Call your local BRP dealership |
| 23c | 709200386 | REFLECTOR - Call your local BRP dealership |
| 23d | 709200387 | REFLECTOR - Call your local BRP dealership |
| 24 | 709200266 | RECIRCULATION HOSE - Call your local BRP dealership |
| 25 | 709200268 | INTERMEDIATE HOSE - Call your local BRP dealership |
| 26 | 293750008 | Tie Wrap 368 mm |
| 27 | 509000045 | Oetiker Gear Clamp 36.1MM |
| 28 | 509000045 | Oetiker Gear Clamp 36.1MM |
| 29 | 293650099 | Crimp Clamp |
| 30 | 293650098 | Norma Gear Clamp |
| 31 | 709200624 | Coolant Tank Ass'y This part replaces 709200312. |
| 32 | 709200587 | Tank Cap This part replaces 709200328. |
| 33 | 219704414 | Was 415110000 Polyurethane Hose 5.2 mm |
| 34 | 414554800 | Spring Clamp |
| 35 | 709200036 | Hose Anchor |
| 36 | 207661644 | Hex. Flange Screw M6 X 16 |
