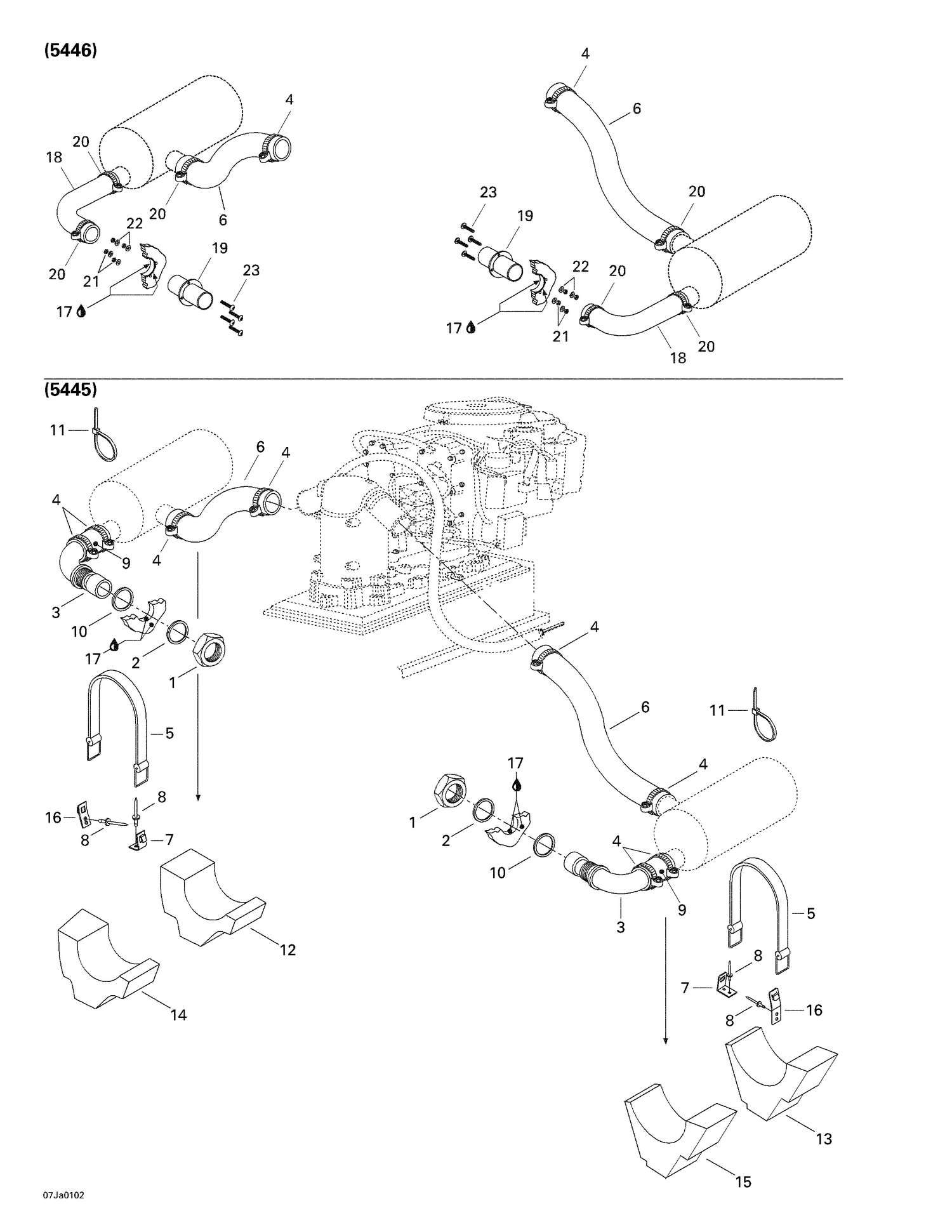

| Ref | Part Number | Description |
|---|
| 4 |
293650064 |
Tridon Clamp |
| 5 |
293850022 |
STRAP - Call your local BRP dealership |
| 7 |
204060017 |
Strap Clip 90° |
| 8 |
293150008 |
Pop Rivet 3/16" This part replaces 293150011. |
| 11 |
293750020 |
WRAP_TIE 828 X 9 - Call your local BRP dealership |
| 12 |
204340261 |
LH Front Muffler Support |
| 13 |
204340262 |
RH Front Muffler Support |
| 14 |
204340263 |
LH Rear Muffler Support |
| 15 |
204340264 |
RH Rear Muffler Support |
| 16 |
293850024 |
STRAP CLIP - Call your local BRP dealership |
| 17 |
296000309 |
Silicone Sealant 51388, 300 ml |
