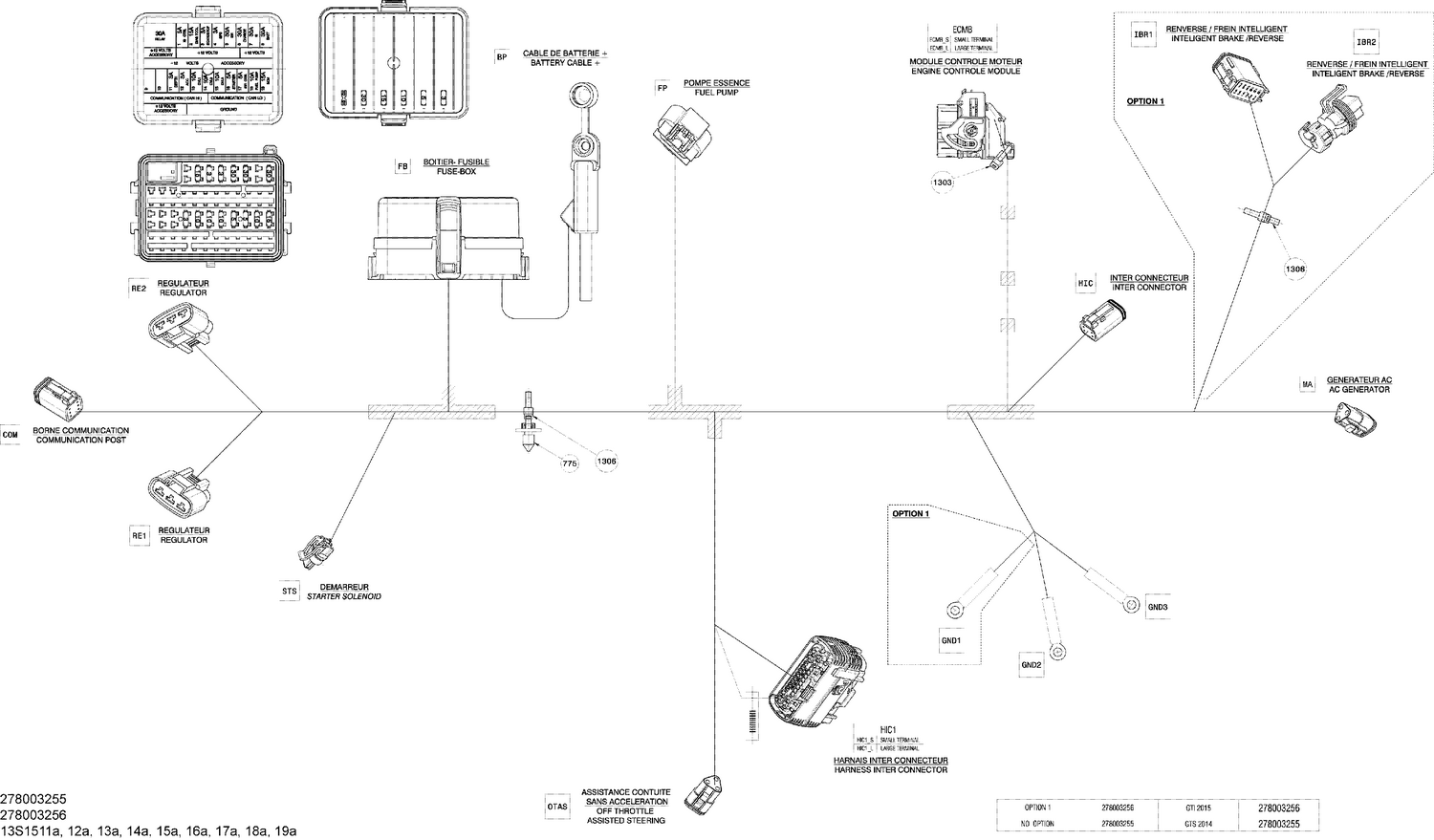

| Ref | Part Number | Description |
|---|
| BP |
278002815 |
Battery Cable |
| COM |
278000632 |
Female Terminal |
| COM |
278001665 |
Female Terminal |
| COM |
278002896 |
Housing, 6 Circuits |
| COM |
293000052 |
Sealing Cap |
| COM |
515175678 |
Male Wedge, 6 Circuits |
| COVER |
710000742 |
Little Fuse, 5 Amperes |
| COVER |
710000744 |
Little Fuse, 10 Amperes |
| COVER |
710000745 |
Little Fuse, 15 Ampere |
| COVER |
710000747 |
Little Fuse, 30 Amperes |
| COVER |
710001008 |
Little Fuse, 3 AMP |
| ECMB_L |
710001590 |
Female Terminal |
| ECMB_L |
710001593 |
Plug |
| ECMB_L |
710001727 |
Female Terminal |
| ECMB_S |
710001588 |
Female Terminal Housing, 48 Circuits |
| ECMB_S |
710001589 |
Female Terminal |
| ECMB_S |
710001591 |
Cover, 48 positions |
| ECMB_S |
710001592 |
Plug |
| FB |
278000218 |
Wire Seal |
| FB |
278001065 |
Wire Seal |
| FB |
278002165 |
Bus Bar |
| FB |
278002578 |
Female Terminal |
| FB |
278002823 |
Fuse Cover |
| FB |
278002880 |
Seal Plug |
| FB |
278002946 |
Fuse Base Ass'y |
| FB |
278003828 |
Relay 30 Amp This part replaces 278002822. |
| FB |
710000048 |
Wire Seal |
| FB |
710000742 |
Little Fuse, 5 Amperes |
| FB |
710000744 |
Little Fuse, 10 Amperes |
| FB |
710000745 |
Little Fuse, 15 Ampere |
| FB |
710000747 |
Little Fuse, 30 Amperes |
| FB |
710000890 |
Female Terminal |
| FB |
710000918 |
Female Terminal |
| FB |
710001008 |
Little Fuse, 3 AMP |
| FP |
278002185 |
Male Housing, 4 Circuits |
| FP |
278002186 |
Wire Seal |
| FP |
278002187 |
Female Terminal |
| GND1 |
XXX |
Not Available As Spare Parts |
| GND2 |
278001392 |
Open Barrel Terminal |
| GND3 |
278001392 |
Open Barrel Terminal |
| HIC |
278000632 |
Female Terminal |
| HIC |
515175672 |
CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership |
| HIC |
515175677 |
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership |
| HIC1_L |
278002455 |
Female Terminal |
| HIC1_S |
278002451 |
HOUSING - Call your local BRP dealership |
| HIC1_S |
278002453 |
Female Terminal |
| HIC1_S |
278002642 |
Female Terminal |
| IBR1 |
XXX |
Not Available As Spare Parts |
| IBR2 |
XXX |
Not Available As Spare Parts |
| MA |
278001276 |
FEMALE TERMINAL - Call your local BRP dealership |
| MA |
515175671 |
FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership |
| MA |
515175676 |
Female Lock, 3 Circuits |
| OTAS |
278001665 |
Female Terminal |
| OTAS |
278002375 |
CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership |
| OTAS |
409207200 |
Female Lock |
| RE1 |
710000877 |
Female Terminal |
| RE1 |
710000880 |
Housing, 3 Circuits |
| RE1 |
710000881 |
Seal |
| RE2 |
710000877 |
Female Terminal |
| RE2 |
710000879 |
Female Housing, 3 Circuits |
| RE2 |
710000881 |
Seal |
| RE2 |
710000882 |
Cap |
| STS |
515177192 |
Female Housing, 2 Circuits |
| STS |
710001163 |
Wire Seal |
| 1 |
278003256 |
Main Harness Ass'y |
| 775 |
Not |
Available As Spare Part - Dart Mount |
| 1306 |
Not |
Available As Spare Part - Tie Rap |
