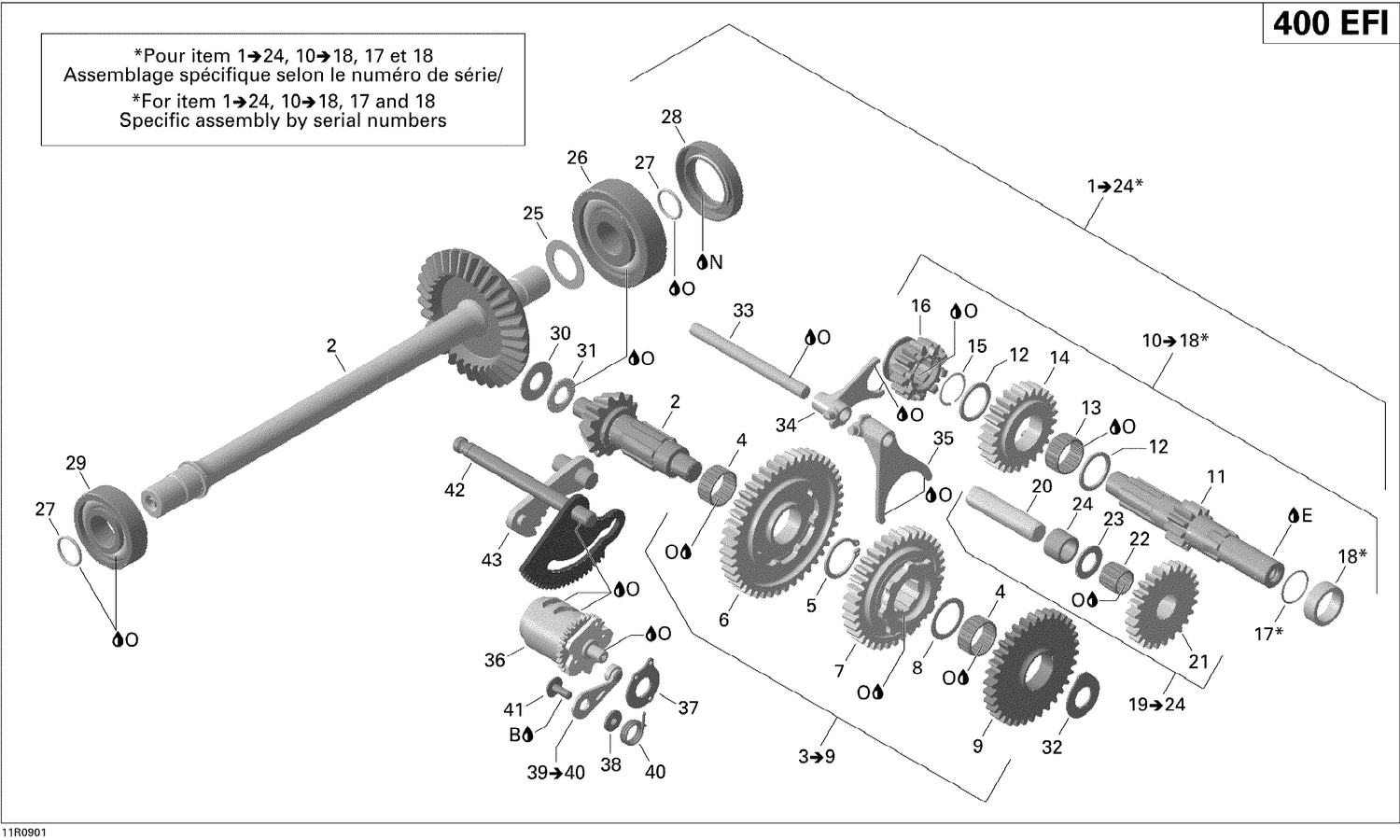

| Ref | Part Number | Description |
|---|
| B |
293800060 |
Loctite 243, 10 ml |
| E |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| N |
293550030 |
Grease, Super Lube |
| 2 |
420296535 |
BEVEL GEAR ASS?Y - Call your local BRP dealership |
| 4 |
420632070 |
Needle Bearing |
| 5 |
420245850 |
Retaining Ring |
| 6 |
Not |
Available As Spare Part - Sliding Gear, 44 Teeth |
| 7 |
Not |
Available As Spare Part - Gear Pinion, 36 Teeth |
| 8 |
Not |
Available As Spare Part - Thrust Washer |
| 9 |
Not |
Available As Spare Part - Gear Pinion, 34 Teeth |
| 11 |
Not |
Available As Spare Part - Countershaft, 11 Teeth |
| 12 |
Not |
Available As Spare Part - Thrust Washer |
| 13 |
420632070 |
Needle Bearing |
| 14 |
Not |
Available As Spare Part - Gear Pinion, 25 Teeth |
| 15 |
420445302 |
Circlip This part replaces 420445300. |
| 16 |
Not |
Available As Spare Part - Shift Gear, 16 Teeth |
| 20 |
420229600 |
Needle Pin |
| 21 |
Not |
Available As Spare Part - Intermediate Gear, 25 Teeth |
| 22 |
420432034 |
Needle Cage This part replaces 420432030. |
| 23 |
Not |
Available As Spare Part - Thrust Washer |
| 24 |
Not |
Available As Spare Part - Distance Ring |
| 25 |
420281300 |
Washer Thrust Set |
| 26 |
420632280 |
Ball Bearing 6405 |
| 27 |
420430373 |
O-Ring This part replaces 420430370. |
| 28 |
420650682 |
Oil Seal |
| 29 |
420932822 |
Ball Bearing This part replaces 420932825. |
| 30 |
420281306 |
Thrust Washer Set, MAG Side |
| 31 |
420632300 |
Axial Needle Bearing |
| 32 |
420281302 |
Thrust Washer Set, CVT Side |
| 33 |
420229540 |
Pin |
| 34 |
420257332 |
Shift Fork This part replaces 420257330. |
| 35 |
420257342 |
Shift Fork This part replaces 420257340. |
| 36 |
420257325 |
Shift Drum Ass'y This part replaces 420257326. |
| 37 |
420627780 |
ISOLATING WASHER - Call your local BRP dealership |
| 38 |
420227710 |
BUSHING - Call your local BRP dealership |
| 40 |
420238290 |
Index Spring |
| 41 |
420241522 |
Torx Screw M6 X 16 This part replaces 420241529. |
| 42 |
420620136 |
Shift Shaft Ass'y This part replaces 420620135. |
| 43 |
420257316 |
Parking Lock Lever This part replaces 420257315. |
