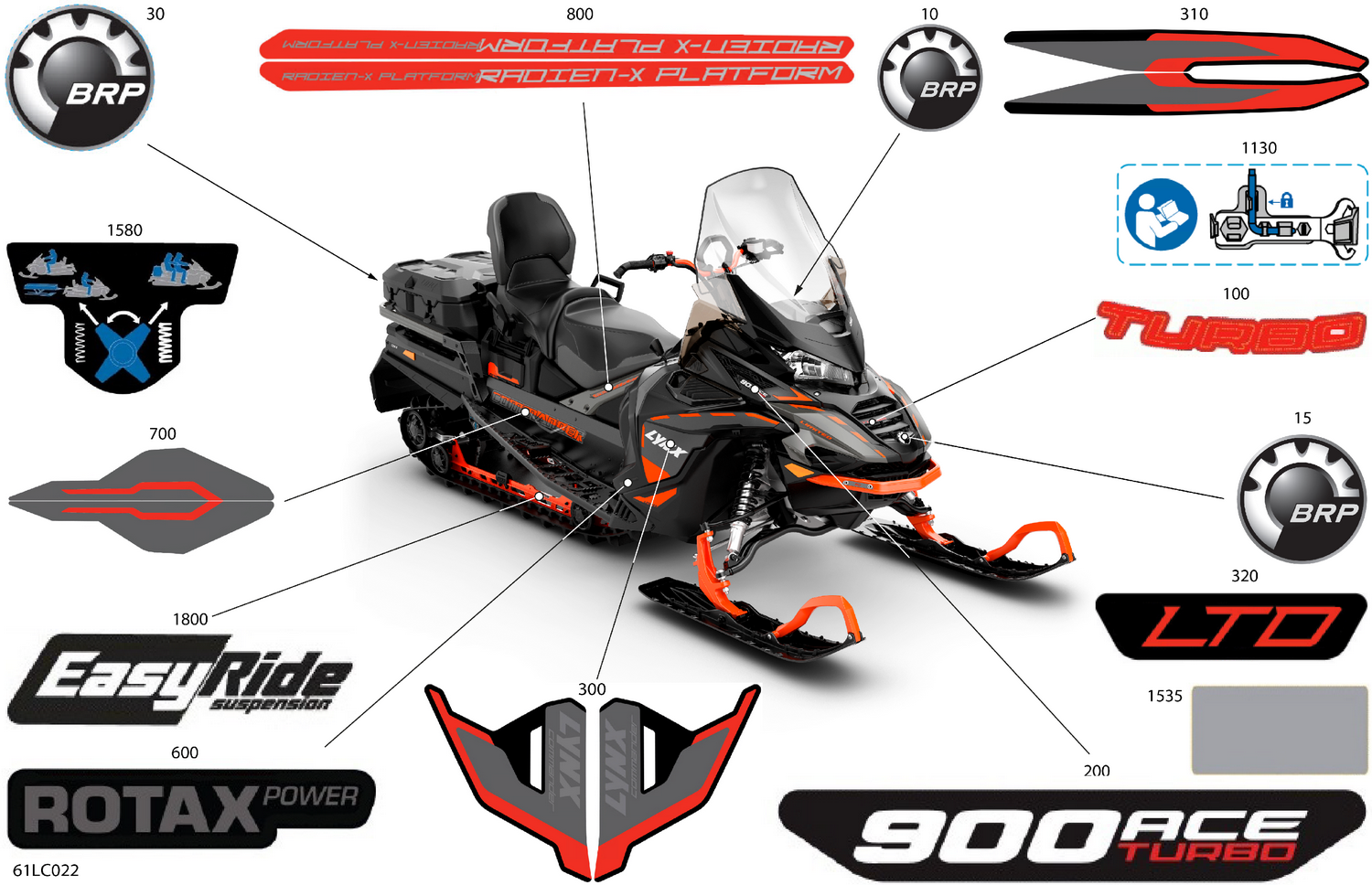

07- Body - Decals
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 516010651 | BRP Logo 20 MM x 2 MM |
| 15 | 704909040 | Emblem BRP Logo 48 MM UV |
| 30 | 704909040 | Emblem BRP Logo 48 MM UV |
| 100 | 516009698 | Hood Decal "Turbo" |
| 200 | 516009687 | Upper Side Panel Decal "900 ACE Turbo" |
| 300 | 516010662 | Side Panel Decal "Lynx Commander" |
| 310 | 516010982 | LH/RH Side Panel Decal |
| 320 | 516010665 | LH/RH Side Panel Decal |
| 600 | 516008760 | Decal "Rotax Power" |
| 700 | 516010663 | LH/RH Frame Decal |
| 800 | 516010664 | LH/RH Platform Decal |
| 1130 | 516011629 | Tool Instruction Label |
| 1535 | 516009954 | Protective Decal |
| 1580 | 516009928 | Suspension Adjustment Decal |
