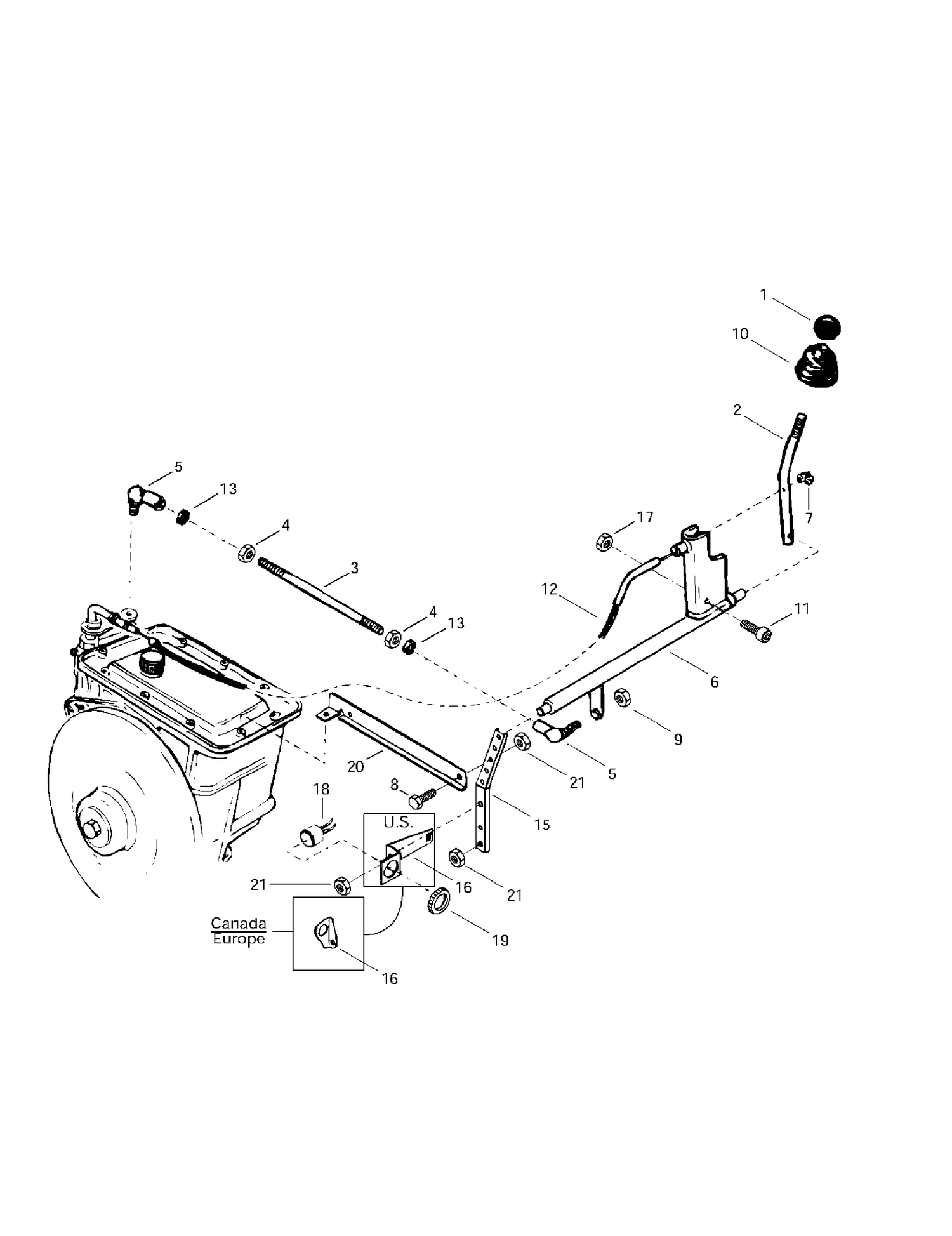

05- Transmission 3
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| M5341835 | Attache | M5341835 |
| M5341835 | Support | M5341835 |
| 1 | M28235 | Arm Shifter Ball |
| 2 | M544668 | Arm-Shifter |
| 3 | M549891 | Tie Rod |
| 4 | 232081414 | Hex. Nut M8 This part replaces 228081045. |
| 5 | M21002 | Ball Joint |
| 6 | M539890 | Transmission Lever |
| 7 | M24007 | Wire Lock |
| 8 | 207161644 | Hex. Screw M6 X 16 This part replaces 222061665. |
| 9 | 232581414 | Hex. Elastic Stop Nut M8 This part replaces 228581045. |
| 10 | M544354 | Shifter Boot |
| 11 | M40147 | Allen Screw M4 x 25 |
| 12 | M539748 | Shifter Cable |
| 13 | M27025 | Wire Holder |
| 15 | M5340523 | Support |
| 16 | M5441344 | Support |
| 17 | 232541414 | Elastic Stop Nut M4 This part replaces 228541045. |
| 19 | 414805101 | PLASTIC NUT - Call your local BRP dealership |
| 20 | M5341669 | Bracket |
