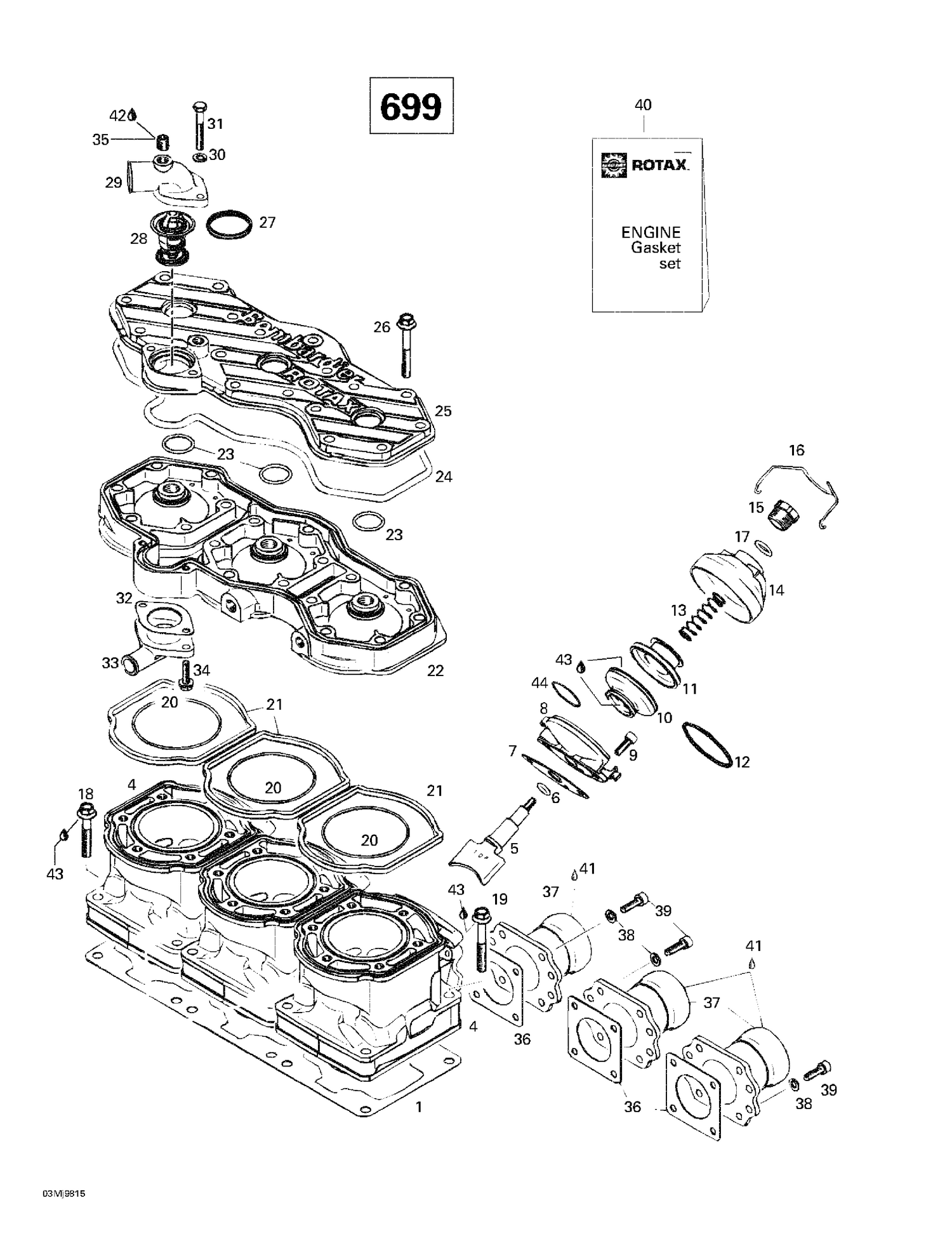

| Ref | Part Number | Description |
|---|
| 1 |
420931572 |
GASKET 0.6 MM - Call your local BRP dealership |
| 2 |
420931571 |
GASKET 0.4 MM - Call your local BRP dealership |
| 3 |
420931570 |
Gasket 0.3 mm |
| 4 |
420923420 |
CYLINDER (NICASIL COATED) - Call your local BRP dealership |
| 4 |
421000064 |
REBUILD-CYLINDER NICASIL REP. 699 - Call your local BRP dealership |
| 5 |
420854307 |
Exhaust Valve |
| 6 |
420430110 |
O-Ring |
| 7 |
420250239 |
Gasket This part replaces 420250234. |
| 8 |
420854265 |
Valve Housing |
| 9 |
420241237 |
Socket Head Screw M6 x 16 This part replaces 420241236. |
| 10 |
420260723 |
Exhaust Bellows This part replaces 420260728. |
| 11 |
420854449 |
Exhaust Valve This part replaces 420253258. |
| 12 |
420939281 |
Hose Spring This part replaces 420239040. |
| 13 |
420239954 |
Spring This part replaces 420239944. |
| 14 |
420911552 |
Valve Cover This part replaces 420911551. |
| 15 |
420241221 |
Adjuster Screw This part replaces 420241220. |
| 16 |
420838083 |
SPRING CLIP - Call your local BRP dealership This part replaces 420838082. |
| 17 |
420430220 |
O-Ring |
| 18 |
420640433 |
Collar Hex Screw M8 X 45 This part replaces 420940636. |
| 19 |
420240326 |
Hex. Flange Screw M8 X 53.5 |
| 20 |
420831792 |
O-Ring |
| 21 |
420931320 |
SEAL RING - Call your local BRP dealership |
| 22 |
420923127 |
Cylinder Head (Violet) |
| 23 |
420430782 |
O-Ring |
| 24 |
420931330 |
O-Ring |
| 25 |
420923135 |
Cylinder Head Cover (Violet) |
| 26 |
420941627 |
Hex. Screw M8 X 56.5 This part replaces 420941621. |
| 27 |
420931270 |
SEALING RING - Call your local BRP dealership |
| 28 |
420922519 |
Thermostat This part replaces 414834100. |
| 29 |
420922485 |
Exhaust Socket |
| 30 |
420945751 |
WASHER-LOCK DIN.128 - Call your local BRP dealership |
| 31 |
207064044 |
Hex. Screw M6 X 40 This part replaces 222064065. |
| 32 |
420850339 |
Gasket This part replaces 420850336. |
| 33 |
420922600 |
Bent Outlet Socket |
| 34 |
420941251 |
SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250. |
| 35 |
420240480 |
PLUG SCREW - Call your local BRP dealership |
| 36 |
420850552 |
Gasket |
| 37 |
420978816 |
Exhaust Socket |
| 38 |
234161471 |
Lock Washer M6, Black This part replaces 224761110. |
| 39 |
205062544 |
Socket Head Screw M6 X 25 This part replaces 222962565. |
| 40 |
420886312 |
Gasket Set |
| 41 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 42 |
293800060 |
Loctite 243, 10 ml This part replaces 413703000. |
| 43 |
413707000 |
Dow Corning 111, 150 g |
