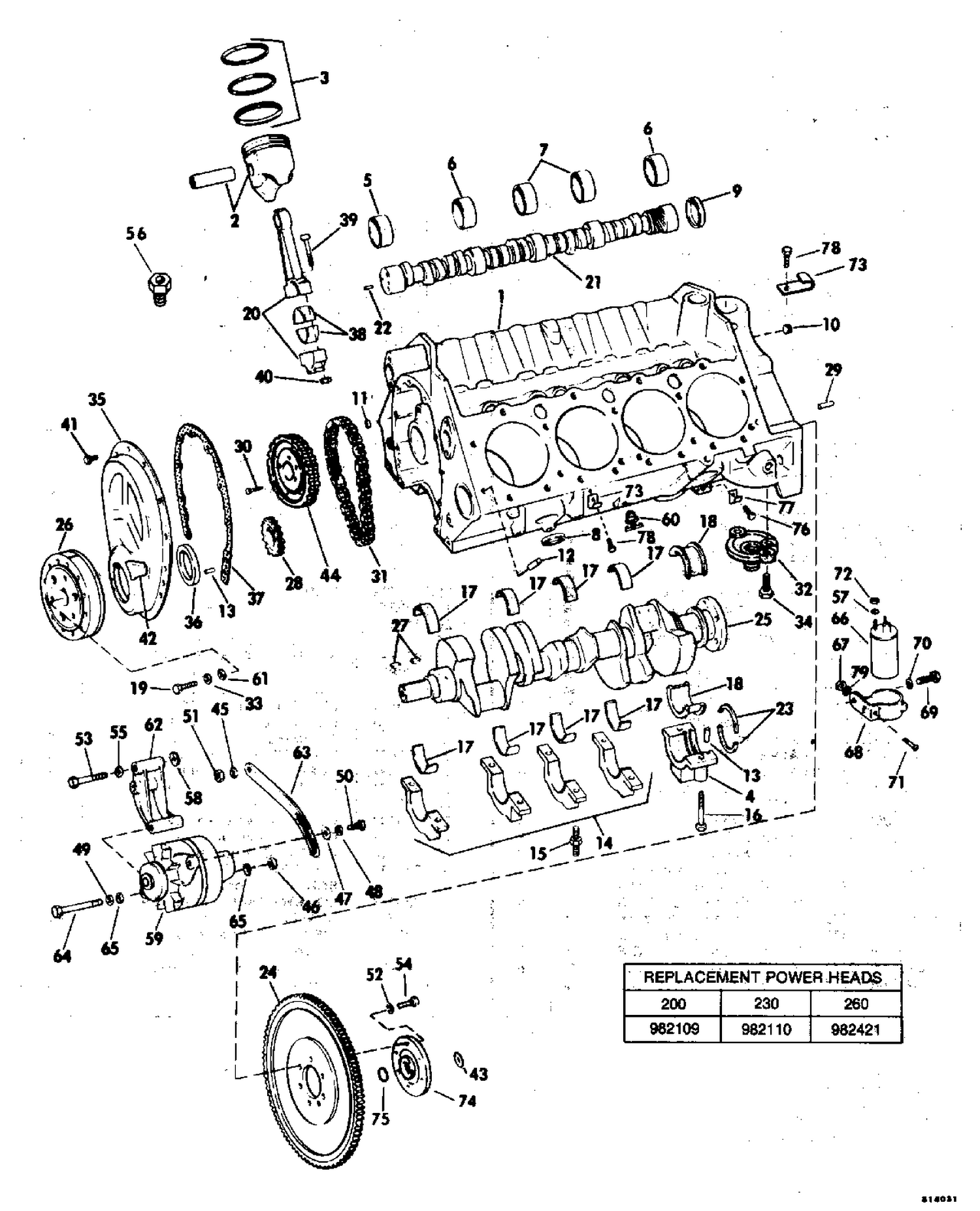

CRANKCASE GROUP 200-230-260 MODELS

CRANKCASE GROUP 200-230-260 MODELS

Parts (99)

RefPart NumberDescription
1 14019867 CRANKCASE ASSY
1 14024311 CRANKCASE ASSY
2 0364702 PISTON & ASSY, Std
2 0364703 PISTON & PIN ASSY, .001" O.S.
2 0364704 PISTON & PIN ASSY, .030" O.S.
2 3911020 PISTON & PIN ASSY, Std
2 3911021 PISTON & PIN AASSY, .020" o.s.
2 3911023 PISTON & ASSY, .030" o.s.
3 0328506 PISTON RING SET
3 0328511 PISTON RING SET, .020 0s
3 0328516 PISTON RING SET 020: O.S
3 0370409 PISTON RIGN SET, Std
4 3911007 CAP, Camshaft brg, rear
5 0474005 BEARING, Camshaft #1
6 0474006 BEARING, Camshaft, #2, #4
7 0474007 BEARING, Camshaft, #3
8 0311376 CORE PLUG, Side
9 3997752 PLUG, Camshaft bearing, rear
10 0444776 PLUG, Oil gallery,
11 3701638 PLUG, Oil galler, fron, 1/2" dia cup shaped
12 0585927 DOWEL PIN
13 3836903 PILOT PIN, Cam shaft gear
14 3956688 CAP, Crankshaft bearing
17 0462661 BEARING ASSY, Upper #1, std
17 0462664 BEARING ASSY, Lower #1, std
17 0462673 BEARING ASSY, Upper #1, .001" U.S.
17 0462674 BEARING ASSY, Upper #1, .002" U.S.
17 3912038 BEARING ASSY, #2 #3, #4, std.
17 3912039 BEARING ASSY, #2, #3, #4, .001" u.s
17 3912040 BEARAING ASSY.-FRONT & INTERMEDIATE,.002"us
17 3912041 BEARING ASSY -EXC REAR, .010'' u.s.
17 3912042 BEARING ASSY 0EXC REAR, .020'' u.s.
18 3912030 BEARING ASSY - REAR, Std
18 3912032 BEARING ASSY - REAR, .001" U.S.
18 3912033 BEARING ASSY - REAR, .002" U.S.
18 3912035 BEARING ASSY - REAR, .010" U.S.
18 3912036 BEARING ASSY - REAR, .020" U.S.
19 9428643 BOLT
20 14030310 CONNECTING ROD ASSY
20 14095067 CONNECTING ROD ASSY
20 3916396 CONNECTING ROD ASSY
20 6269322 CONNECTING ROD ASSY
21 0340284 CAMSHAFT ASSY
22 3836903 PILOT PIN, Cam shaft gear
23 0473424 OIL SEAL SET, Crankshaft rear baering
25 0361982 CRANKSHAFT
25 3941180 CRANKSHAFT
26 6272221 DAMPER ASSY
27 0106751 KEY, Wdf, 3/16" x 3/4"
28 3735413 SPROCKET, Crankshaft
28 3896959 SPROCKET, Crankshaft
28 3909805 SPROCKET, Crankshaft
29 3712745 DOWEL PIN
30 0443899 BOLT, Camshaft sprocket
31 0346261 CHAIN, Camshaft timing
31 3735411 CHAIN, Camshaft
32 3952301 ADAPTER & VALVE ASSEMBLY
33 0114607 LOCKWASHER
34 3951644 BOLT, Adapter
35 0462846 COVER, C'case front end
36 3980267 SEAL
37 3799620 GASKET, Front cover
38 3910555 BEARING, Connecting rod, std.
38 3910556 BEARING, Rod, .001" u.s.
38 3910557 BEARING, Rod .002" u.s.
38 3910558 BEARING, Rod, .010" u.s.
38 3910559 BEARING, Rod, .020" u.s.
39 3916399 BOLT, Connecting fod
40 3866766 NUT, Conn rod, 11/32-24
41 3817006 BOLT, Camshaft sprocket
42 3991435 POINTER, Timing
44 0340235 SPROCKET, Camshaft
44 3735412 SPROCKET, Camshaft
49 0309336 L'WASHER, Alternator to bracket
50 0302479 VIS, démarreur vers bloc cylindres-carter This part replaces 0306416.
52 0136857 L'WASHER,Flywheel
53 0306836 SCR,Altnr brkt
54 0908375 BOLT, Flywheel
55 0120177 L'WASHER, Alternator to brkt
56 0909641 ADAPTER, Water drain stbd
57 0550757 L'WASHER,Coil term
58 0120177 L'WASHER, Alternator to brkt
59 0981187 ALTERNATOR ASSEMBLY
60 0379957 PETCHOCK ASSY, Water drain
61 3739422 WASHER
62 0909637 BRACKET, Alternator
63 0312776 BRACE, Alternator
64 0311391 SCR,Altnr to brkt
66 3852217 COIL ASSY. Ignition This part replaces 0383444.
67 0308335 CLAMP, Coil
68 3852218 BRACKET, Oil cooler This part replaces 0383448.
69 0306834 BOLT, Throttle lever retainer
70 0120177 L'WASHER, Alternator to brkt
71 0306519 SCR,Coil clamp
74 0980994 COUPLING & O-RING ASSY
75 0909567 O-RING
76 0303311 SCR,Clamp,eng cable
77 0330151 CLAMP, Harness to oil tank boss This part replaces 0309846.
78 0313117 SCR,Clamp,eng cable
