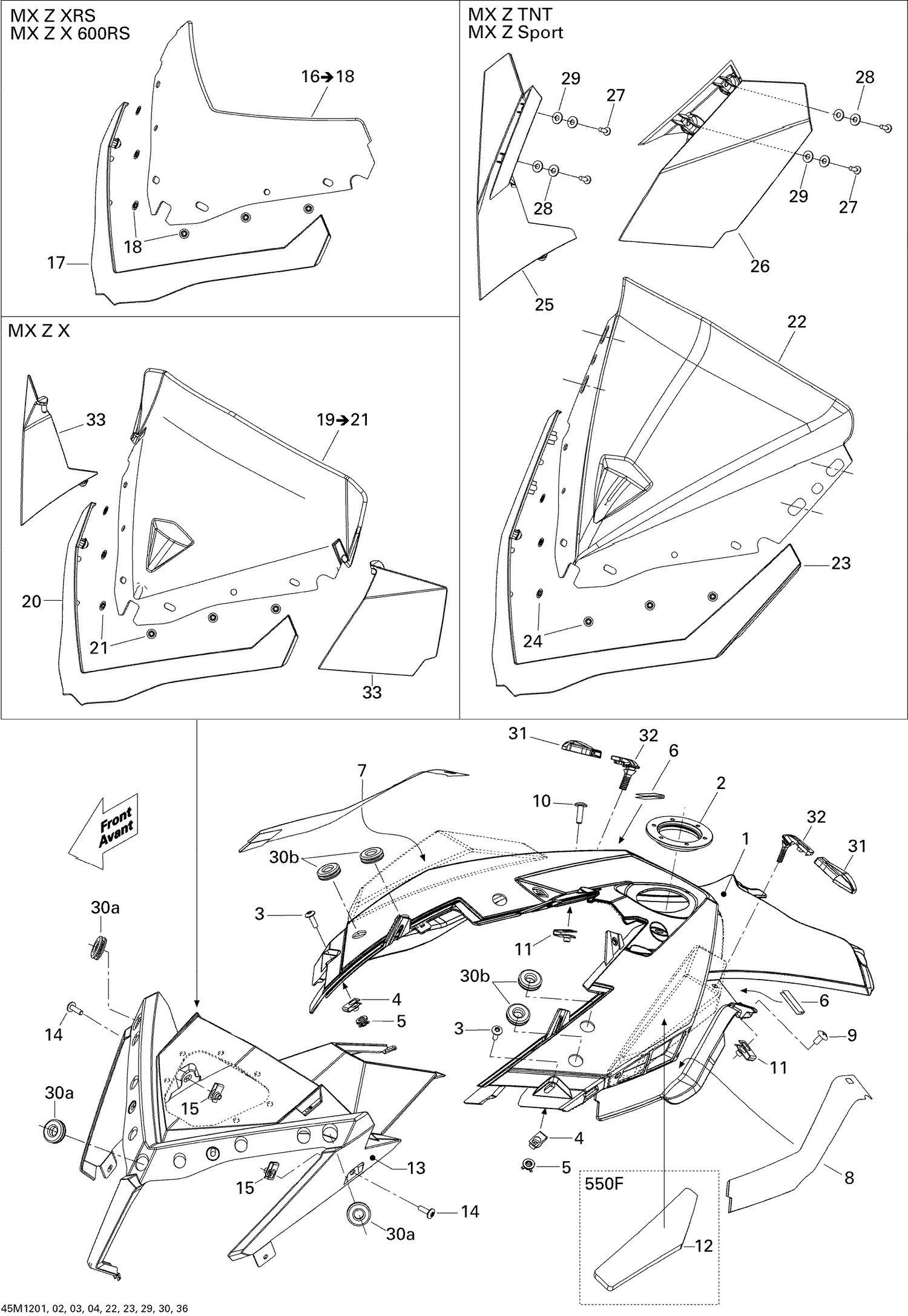

09- Windshield And Console
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 517304409 | YELLOW CONSOLE - Call your local BRP dealership |
| 2 | 517304518 | Console Nut |
| 3 | 250000722 | Torx Screw M6 X 20 This part replaces 250000128. |
| 4 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 5 | XXX | Not Available As Spare Parts |
| 6 | 517304105 | Console Decal |
| 7 | 517304103 | RH Decal |
| 8 | 517304104 | LH Decal |
| 9 | 250000721 | Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 10 | 250000722 | Torx Screw M6 X 20 This part replaces 250000128. |
| 11 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 12 | 517304882 | Foam |
| 13 | 517304578 | Gauge Support |
| 14 | 250000722 | Torx Screw M6 X 20 This part replaces 250000128. |
| 15 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 17 | XXX | Not Available As Spare Parts |
| 18 | XXX | Not Available As Spare Parts |
| 20 | XXX | Not Available As Spare Parts |
| 21 | XXX | Not Available As Spare Parts |
| 23 | 517303607 | Windshield Support |
| 24 | 732610072 | Push Nut |
| 25 | 517303604 | RH Air Deflector |
| 26 | 517303605 | LH Air Deflector |
| 27 | 250000720 | Torx Screw K50 X 16 This part replaces 250000146. |
| 28 | 250200025 | Washer M5 |
| 29 | 250200024 | Rubber Washer 5 mm |
| 30a | 517303756 | Grommet |
| 30b | 517303756 | Grommet |
| 32 | 517303981 | Panel Latch |
