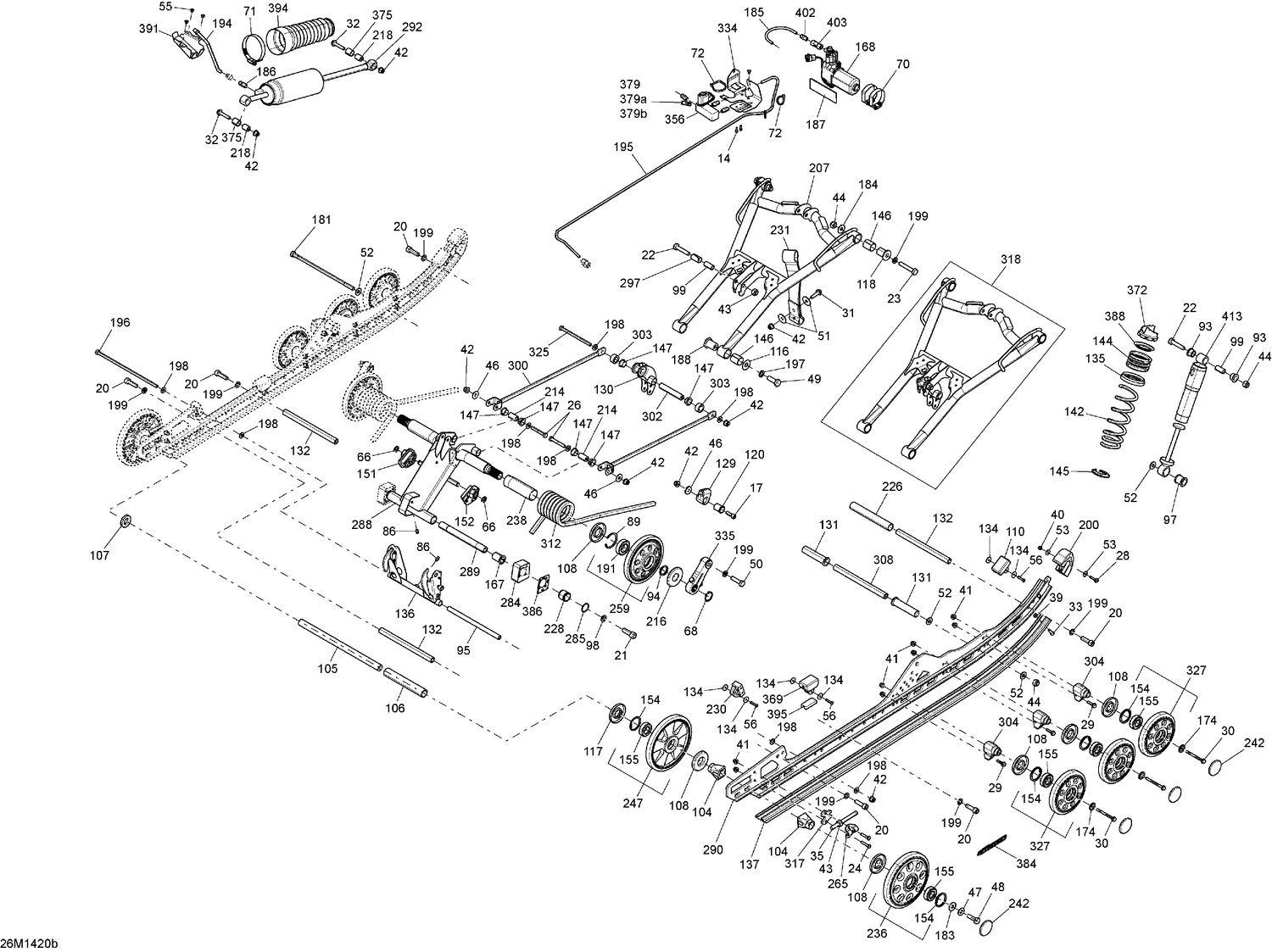

08- Rear Suspension SE
Parts (91)
| Ref | Part Number | Description |
|---|---|---|
| 17 | 205082554 | Socket Screw M8 X 25 |
| 20 | 205503554 | Socket Head Screw M10 X 35 |
| 21 | 205523554 | Socket Head Screw M12 X 35 |
| 22 | 207005044 | Hex. Screw M10 X 1.5 X 50 |
| 23 | 207006056 | Hex. Cap Screw M10 X 60 |
| 24 | 207063054 | Hex. Cap Screw M6 X 30 |
| 26 | 207085544 | Hex. Screw M8 X 55 |
| 28 | 207652544 | Hex. Flange Screw M5 X 25 |
| 29 | 207662556 | Hex. Flange Screw M6 X 25 |
| 30 | 207667056 | Hex. Flange Screw M6 X 70 |
| 31 | 207683044 | Hex. Flange Screw M8 X 30 |
| 32 | 207684044 | Hex. Flange Screw M8 X 40 |
| 35 | 230100054 | Hex Screw M10 x 100 |
| 40 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 42 | 233281466 | Elastic Flange Nut M8 |
| 43 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 44 | 233601466 | Elastic Locking Nut M10 |
| 46 | 234082410 | Flat Washer 8 mm |
| 47 | 250200141 | Conical Spring Washer M10 |
| 48 | 250000592 | Hex Cap Screw Nylon M10 x 35 |
| 49 | 250000537 | Hex. Cap Screw M12 X 35 |
| 50 | 207204056 | Cap Screw Hex. M10 X 40 |
| 51 | 250200128 | Flat Washer 8 mm |
| 52 | 250200138 | Washer |
| 53 | 250200140 | Washer |
| 56 | 293150013 | Pop Rivet 3/16" |
| 66 | 293370013 | E-Circlip |
| 68 | 293370080 | Retaining Ring |
| 86 | 408200700 | Grease Fitting |
| 89 | 415129780 | Retaining Ring |
| 94 | 503189146 | Axle Spring |
| 95 | 503189156 | Pivot Arm Axle |
| 98 | 503189276 | Washer |
| 99 | 503189282 | Bushing |
| 105 | 503190429 | Rear Axle |
| 108 | 503190434 | Labyrinth Seal |
| 110 | 503190576 | Rubber Stopper |
| 116 | 503190656 | Washer |
| 118 | 503190698 | Axle |
| 120 | 861805547 | Spring Support Kit This part replaces 503190754. |
| 129 | 861805547 | Spring Support Kit This part replaces 503191183. |
| 130 | 503192531 | Rocker |
| 131 | 503191259 | Center Bushing |
| 132 | 503191260 | Axle Strap |
| 134 | 503191273 | Washer |
| 136 | 503192823 | Pivot Arm Ass'y |
| 146 | 503191554 | Bushing |
| 147 | 503191555 | Swivel Bushing |
| 151 | 503191565 | LH Cam Adjuster |
| 152 | 503191566 | RH Cam Adjuster |
| 154 | 415129371 | Retaining Ring |
| 155 | 503190396 | Ball Bearing |
| 167 | 503191640 | Cushion |
| 174 | 503191820 | Wheel Cup M6 |
| 181 | 503191896 | BOLT M10 X 251MM - Call your local BRP dealership |
| 183 | 503191910 | Washer |
| 184 | 503191926 | Washer |
| 188 | 503191966 | Lower Axle |
| 191 | 503193548 | Ball Bearing This part replaces 503191982. |
| 196 | 503192440 | Bolt M8 X 248mm |
| 197 | 503192491 | Washer |
| 199 | 503192496 | Washer |
| 200 | 503196873 | Rail Protector This part replaces 503192530. |
| 207 | 503194529 | Front Arm Ass'y This part replaces 503193265. |
| 214 | 503192555 | Axle Bar |
| 216 | 503192592 | Labyrinth Ring |
| 218 | 503196509 | Axle Shock Absorber This part replaces 503192606. |
| 226 | 503196943 | Spacer This part replaces 503192678. |
| 228 | 503192749 | Guide Block |
| 230 | 503192750 | Rubber Stopper |
| 231 | 503192759 | Stopper Strap |
| 238 | 503192767 | Bushing |
| 242 | 503192771 | Black, Wheel Cap |
| 259 | 503192808 | Black Wheel Ass'y 155 mm |
| 265 | 503192583 | Tensioner |
| 284 | 503192918 | LH Cam Block |
| 284 | 503192919 | RH Cam Block |
| 285 | 503192921 | O-Ring |
| 288 | 503193617 | Rear Arm Ass'y |
| 289 | 503192981 | Lower Shaft |
| 297 | 503193037 | Bushing |
| 304 | 503193894 | Casted Support This part replaces 503193082. |
| 308 | 503193435 | Pivot Axle This part replaces 503193142. |
| 317 | 503193250 | Spacer |
| 318 | 503194529 | Front Arm Ass'y This part replaces 503193264. |
| 369 | 503195523 | Rubber Stopper Ass'y This part replaces 503193101. |
| 375 | 505072663 | Leg Cushion |
| 384 | 516004755 | Runner Decal |
| 386 | 516004900 | LH Block Sticker Decal |
| 386 | 516004901 | RH Block Sticker Decal |
| 395 | 572084800 | Reinforcement Stopper |
