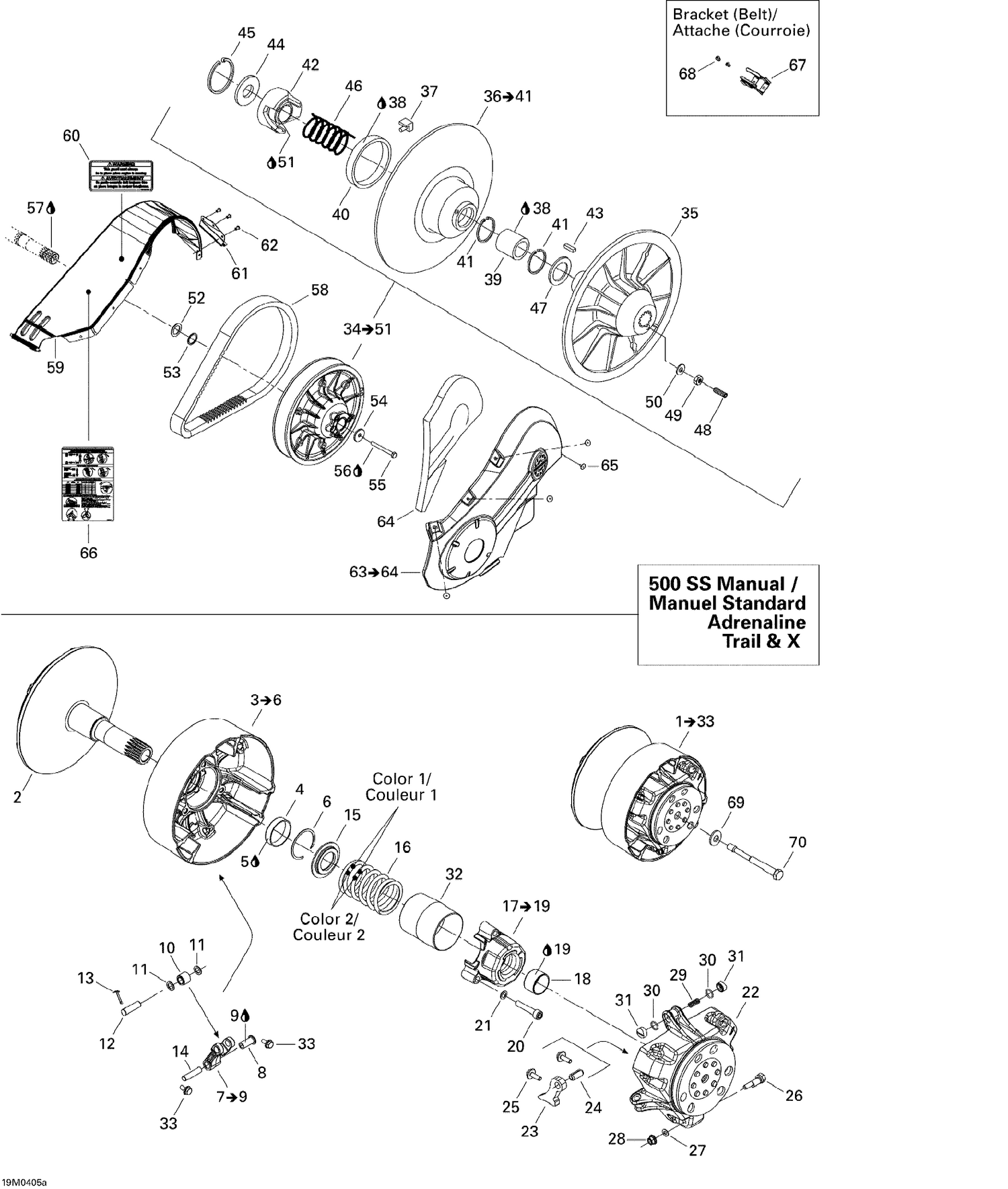

05- Pulley System 500 Ss Manual Std
Parts (58)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 417222937 | Fixed Flange Ass'y This part replaces 417222294. |
| 4 | 417222758 | Bushing This part replaces 417006900. |
| 5 | 413703100 | Loctite 609, 10 ml |
| 6 | 293370037 | Circlip |
| 8 | 417222633 | Bushing |
| 9 | 413703100 | Loctite 609, 10 ml |
| 10 | 417222947 | Roller This part replaces 417003900. |
| 11 | 417004302 | Stopper Washer |
| 12 | 417004308 | Pin |
| 13 | 250400060 | Cotter Pin This part replaces 732958001. |
| 14 | 417223164 | Lever Axle This part replaces 417009202. |
| 15 | 417222312 | Spring Seat |
| 18 | 417009204 | Bushing |
| 19 | 413703100 | Loctite 609, 10 ml |
| 20 | 205084044 | Socket Head Screw M8 X 1.25 X 40 |
| 21 | 250200009 | Lock Washer 8 mm |
| 22 | 417222213 | Governor Cup |
| 23 | 417222515 | Ramp 412 |
| 24 | 250400050 | Spring Pin M10 X 22 This part replaces 250400009. |
| 25 | 250000418 | Hex. Flange Screw M6 X 18, Scotch Grip This part replaces 250000059. |
| 26 | 417222955 | CALIBRATION SCREW - Call your local BRP dealership This part replaces 417005500. |
| 27 | 417005600 | Washer |
| 28 | 233061414 | Hex. Flange Nut M6 |
| 29 | 417005700 | Spring |
| 30 | 732401030 | O-Ring |
| 31 | 417223021 | Slider Shoe This part replaces 417005800. |
| 32 | 417009205 | Guard |
| 33 | 250000412 | Hex. Flange Screw M6 X 12, Scotch Grip This part replaces 210361296. |
| 35 | 417126499 | Fixed Flange |
| 37 | 414918000 | CAM SLIDER SHOE - Call your local BRP dealership |
| 38 | 413703100 | Loctite 609, 10 ml |
| 39 | Not | Available As Spare Part - Bushing |
| 40 | 417126514 | Cushion |
| 41 | 371911200 | CIRCLIP - Call your local BRP dealership |
| 42 | 417126718 | CAME - Call your local BRP dealership |
| 43 | 414820800 | Key |
| 44 | 417126555 | Washer |
| 45 | 371903100 | CIRCLIP - Call your local BRP dealership |
| 47 | 504141900 | Thrust Washer |
| 48 | 206263044 | Socket Set Screw M6 X 30 |
| 49 | 232061414 | Hex. Nut M6 |
| 50 | 420245370 | WASHER - Call your local BRP dealership |
| 51 | 219704461 | LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 53 | 504112000 | Shim |
| 54 | 517302322 | Strength Washer |
| 55 | 207087544 | HEX. SCREW M8 X 75 - Call your local BRP dealership |
| 56 | 293800060 | Loctite 243, 10 ml |
| 57 | 219704461 | LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 59 | 417300213 | BELT GUARD - Call your local BRP dealership |
| 60 | 516002670 | WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership This part replaces 516001190. |
| 61 | 417300216 | BELT GUARD BRACKET - Call your local BRP dealership |
| 62 | 390402200 | Pop Rivet 3/16" |
| 64 | 417300246 | Foam |
| 65 | 293150103 | Pop Rivet 3/16" |
| 66 | 516001639 | Decal, Suspension Adjustment |
| 67 | 517281905 | Bracket |
| 68 | 390402200 | Pop Rivet 3/16" |
| 69 | 250200006 | Spring Washer 14 mm |
